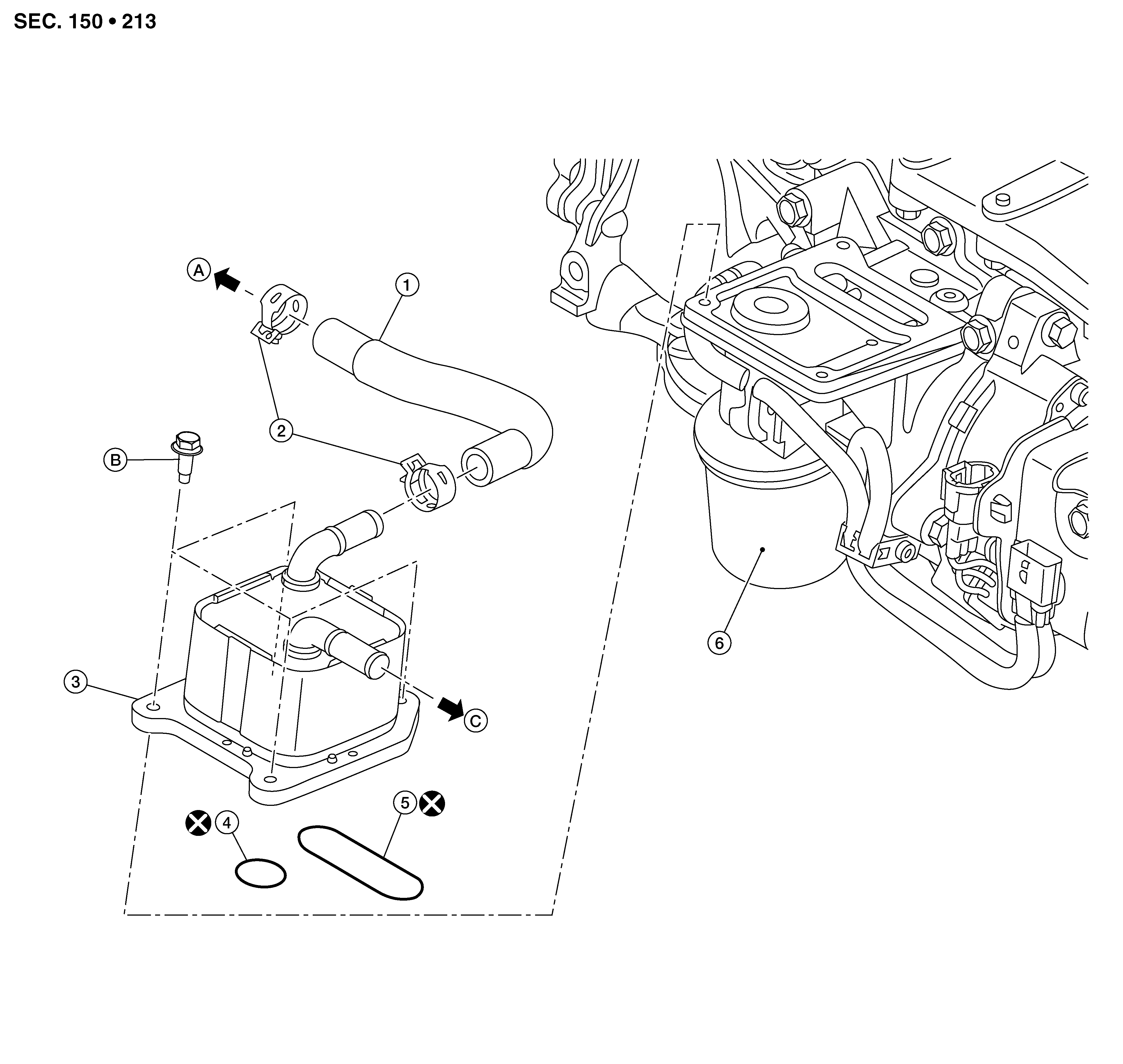

Exploded View
| 1. | Water hose | 2. | Clamp | 3. | Oil cooler |
| 4. | O-ring | 5. | O-ring | 6. | Oil filter |
| A. | To water pump housing. Refer to Exploded View . | B. | Refer to Removal and Installation . | C. | To CVT water hose A. Refer to Exploded View . |
| 1. | Water hose | 2. | Clamp | 3. | Oil cooler |
| 4. | O-ring | 5. | O-ring | 6. | Oil filter |
| A. | To water pump housing. Refer to Exploded View . | B. | Refer to Removal and Installation . | C. | To CVT water hose A. Refer to Exploded View . |
