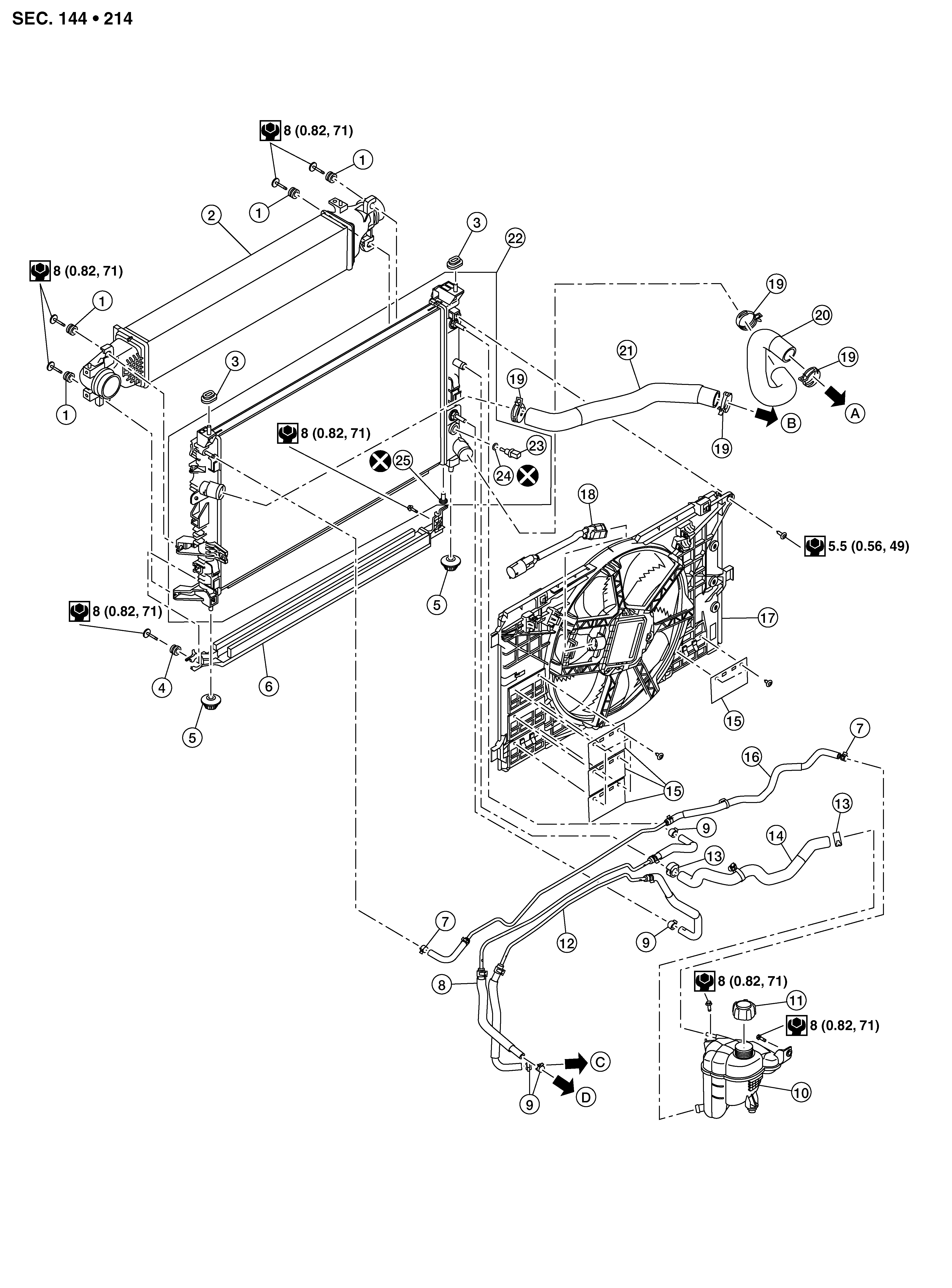

| 1. |
Mounting rubber |
2. |
Charge air cooler |
3. |
Mounting rubber (upper) |
| 4. |
Mounting rubber |
5. |
Mounting rubber (lower) |
6. |
Radiator air guide (lower) |
| 7. |
Clamp |
8. |
CVT fluid warmer hose A |
9. |
Clamp |
| 10. |
Reservoir tank |
11. |
Reservoir tank cap |
12. |
CVT fluid warmer hose B |
| 13. |
Clamp |
14. |
Reservoir tank hose |
15. |
Cooling fan assembly cover |
| 16. |
Radiator overflow hose |
17. |
Cooling fan assembly |
18. |
Cooling fan assembly harness |
| 19. |
Clamp |
20. |
Radiator hose (lower) |
21. |
Radiator hose (upper) |
| 22. |
Radiator assembly |
23. |
Engine coolant temperature sensor 2 |
24. |
O-ring |
| 25. |
Radiator drain plug |
A. |
To water pump housing. Refer to Exploded View . |
B. |
To multi-way control valve. Refer to Exploded View . |
| C. |
To CVT fluid cooler pipe A. Refer to Exploded View
. |
D. |
To CVT oil warmer. Refer to Exploded View
. |
|
|
