Exploded View

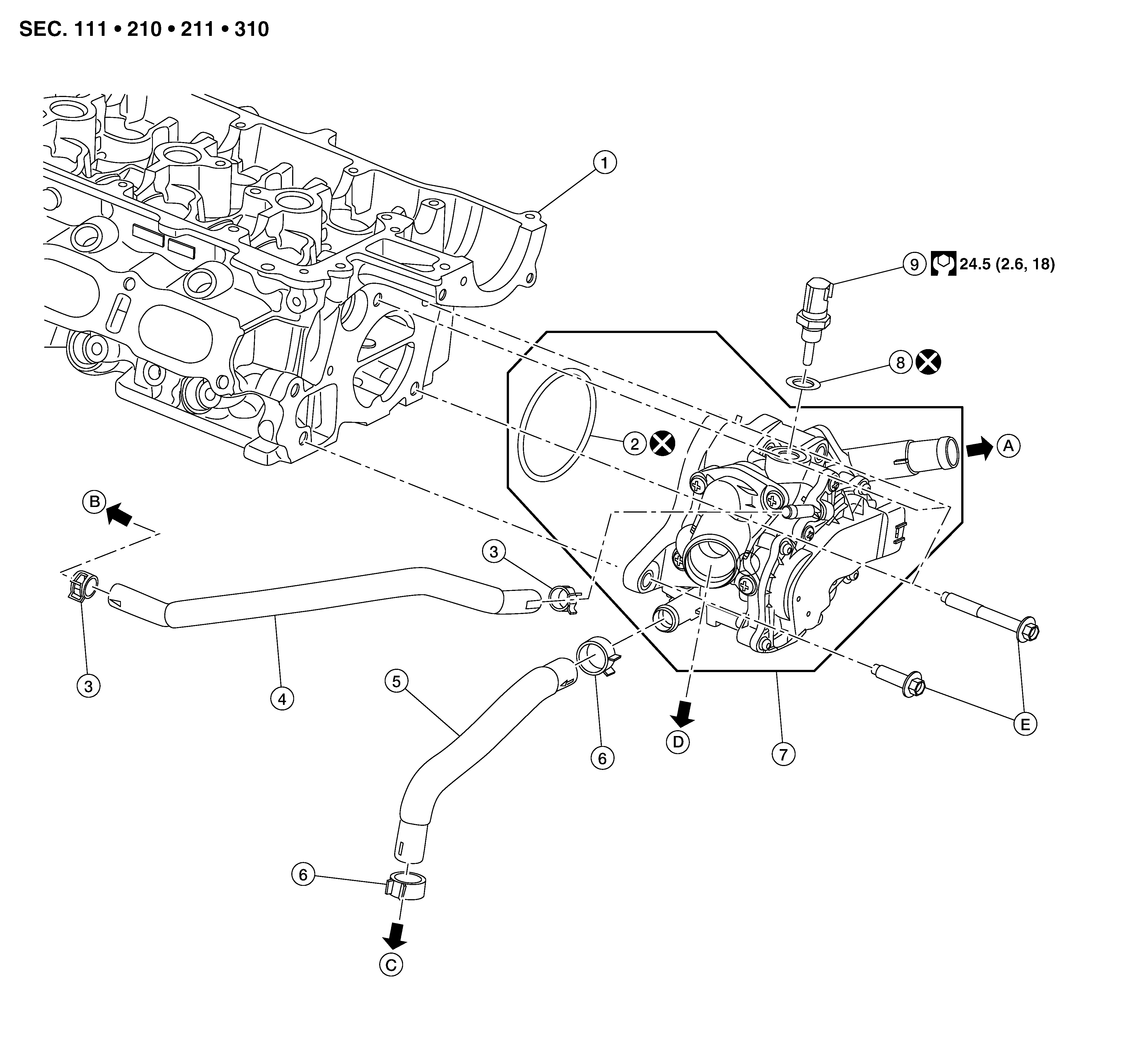

Fig 1: Multi-Way Control Valve With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Cylinder head	2.	O-ring	3.	Clamp
4.	Water hose A	5.	Water hose B	6.	Clamp
7.	Multi-way control valve	8.	Copper sealing washer	9.	Engine coolant temperature sensor 1
A.	To heater core. Refer to Exploded View .	B.	To electronic throttle control actuator. Refer to Exploded View .	C.	To CVT water hose A. Refer to Exploded View .
D.	To radiator hose (upper). Refer to Exploded View .	E.	Refer to Removal and Installation .
