Removal and Installation

NOTE: When removing components such as hoses, tubes / lines, etc., cap or plug openings to prevent fluid from spilling

REMOVAL

1. Disconnect the negative battery terminal. Refer to Battery Disconnect .
2. Remove air inlet resonator. Refer to Removal and Installation .
3. Remove charge air cooler air inlet tube. Refer to Removal and Installation .
4. Remove drive belt. Refer to Removal and Installation .
5. Discharge refrigerant. Refer to Recycle Refrigerant .
6. Remove low-pressure flex hose bracket bolt and bracket. Refer to Exploded View .

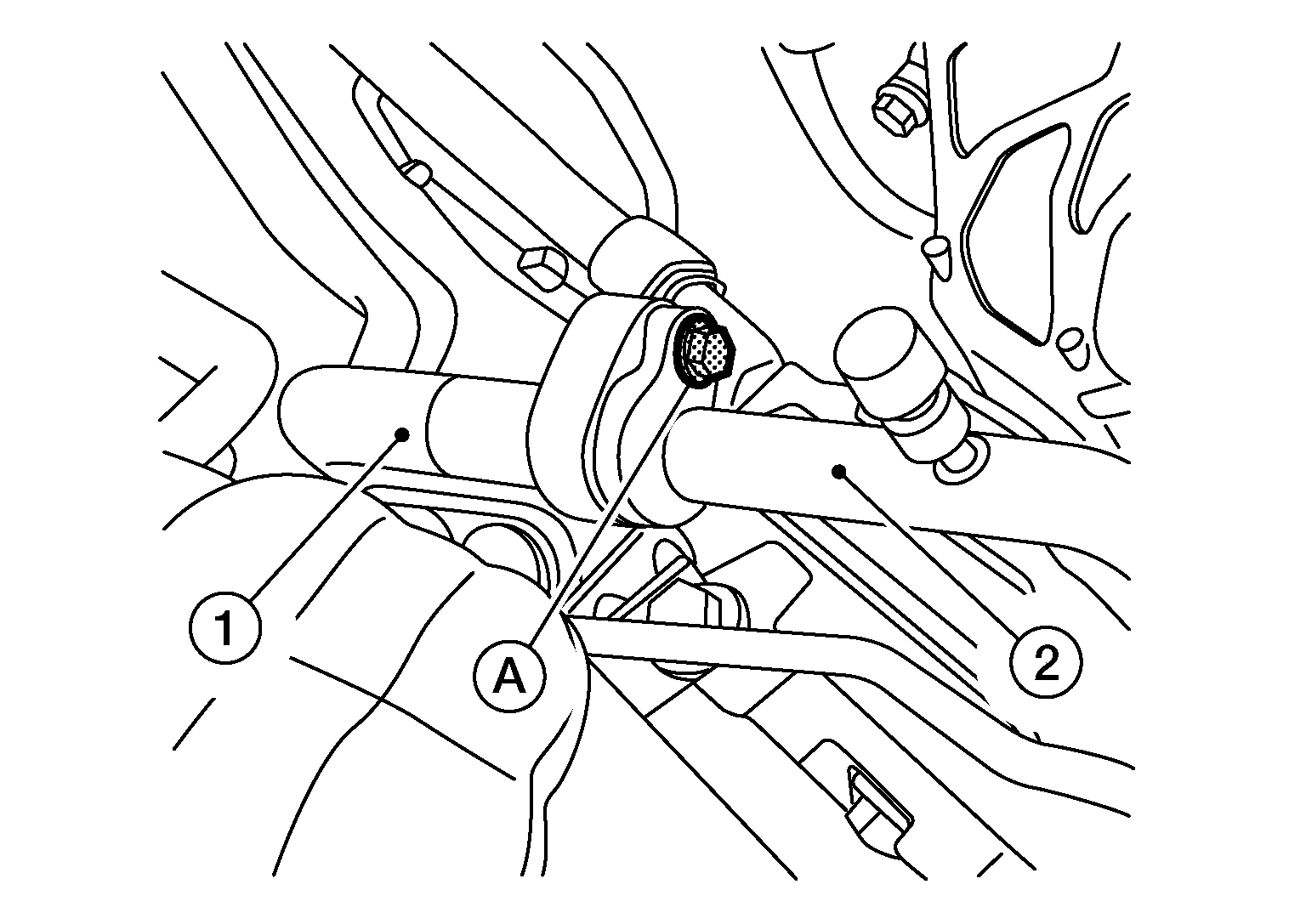

7. Remove bolt (A), then remove low-pressure pipe (1) from low-pressure flexible hose (2) and remove O-ring.
   CAUTION:

   • Do not reuse O-ring.
   • Cap or wrap the joint of the pipe with suitable material such as vinyl tape to avoid the entry of air.

   Courtesy of NISSAN NORTH AMERICA, INC.

8. Remove generator "B" terminal nut and "B" terminal harness.
9. Remove generator bolts and remove generator.

INSTALLATION

Installation is in the reverse order of removal.

• Torque bolts to specification in order shown in illustration.

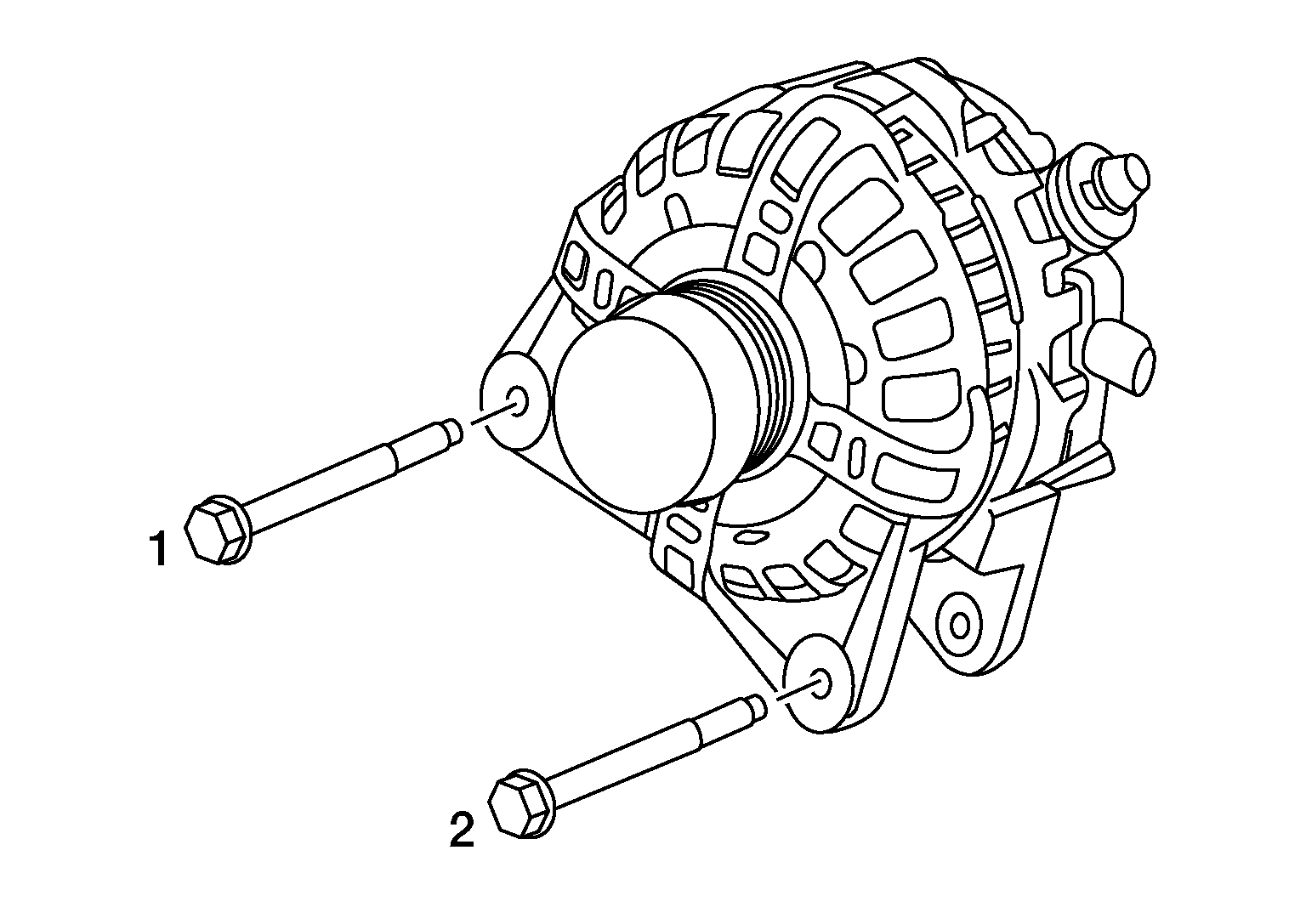

  Fig 1: Generator Bolt Tightening Sequence

  Courtesy of NISSAN NORTH AMERICA, INC.

  Bolts

  : 25.0 N.m (2.6 kg-m, 18.4 ft-lb)

• Torque "B" terminal nut.

  Nut	: 10.06 N.m (1.0 kg-m, 7 ft-lb)
