Exploded View

LH

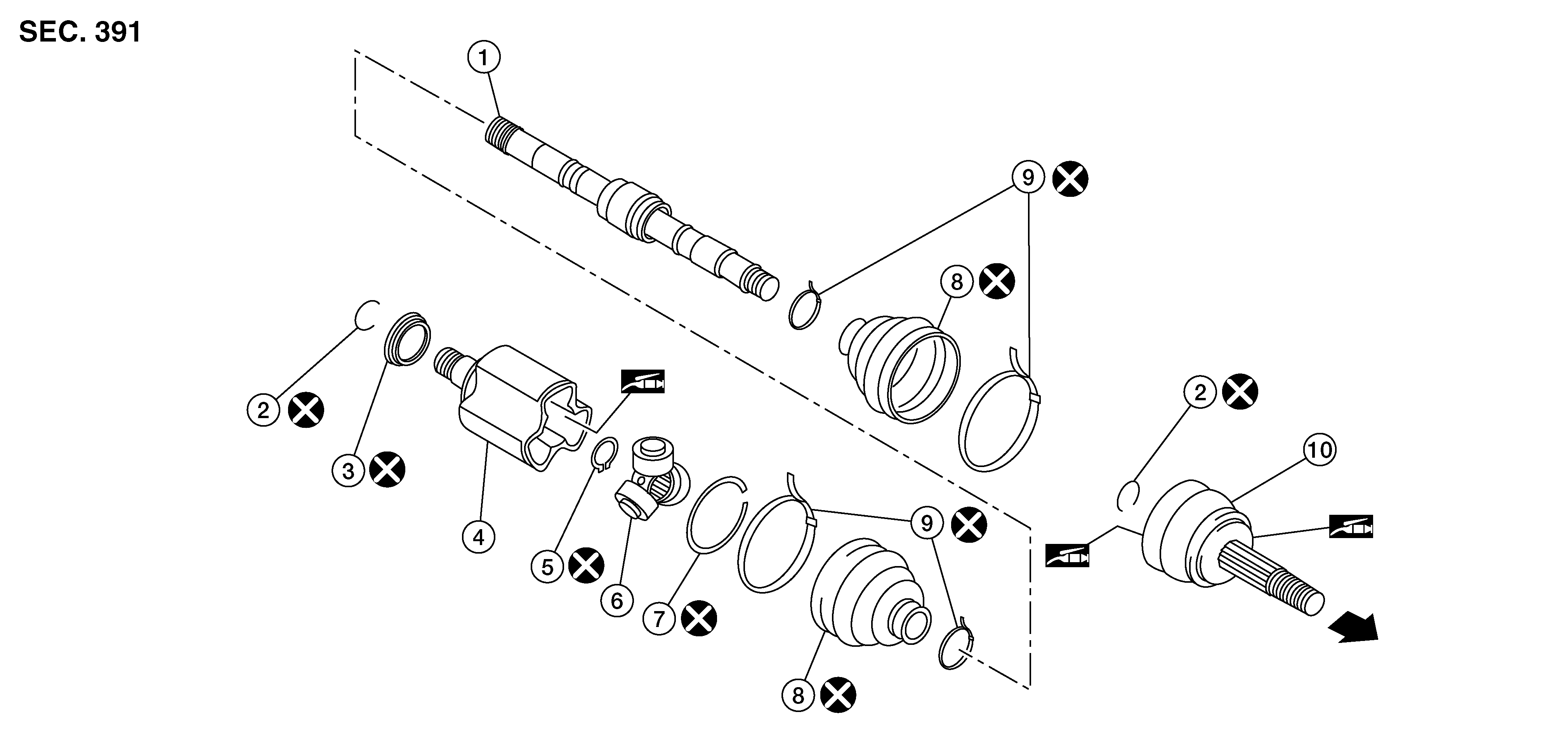

GNSDB125766Courtesy of NISSAN NORTH AMERICA, INC.
1. Shaft with damper 2. Circular clip 3. Dust shield
4. Housing 5. Snap ring 6. Spider assembly
7. Stopper ring 8. Boot 9. Boot band
10. Joint sub - assembly SYMBOL Wheel side SYMBOL Fill NISSAN Genuine grease or equivalent.
