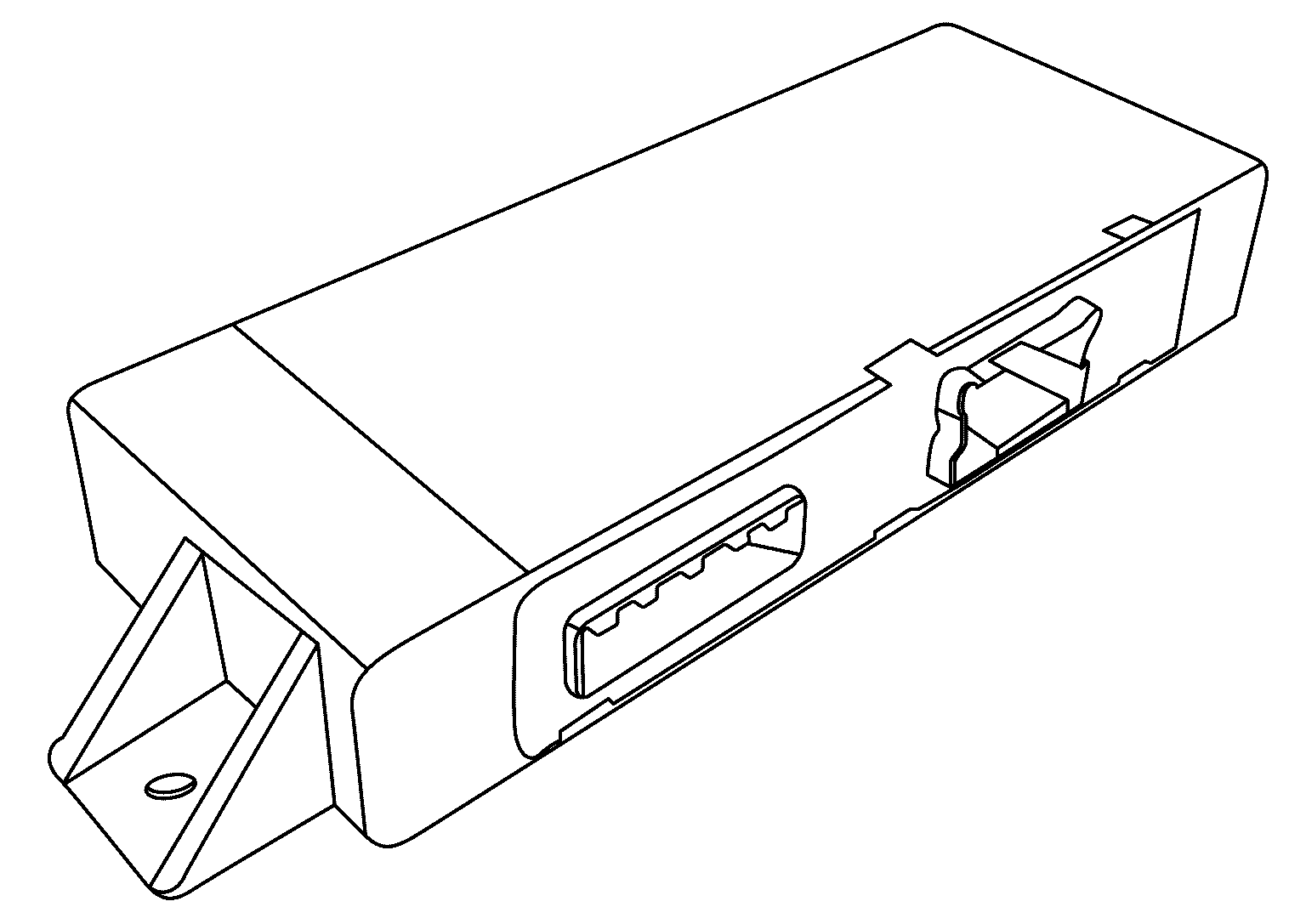

Driver Seat Control Unit

Driver seat control unit is located on the bottom of the driver seat assembly.

Courtesy of NISSAN NORTH AMERICA, INC.
Main units of automatic drive positioner system.
It is connected to the CAN communication system.
It communicates with automatic drive positioner control unit via UART communication.
The address of each part is recorded.
Operates each motor of seat to the registered position.
Requests the operation of steering column and door mirror to automatic drive positioner control unit.
Perform the control of seat memory switch.
Operates the specific seat motor with the signal from power seat switch LH.
