Component Location

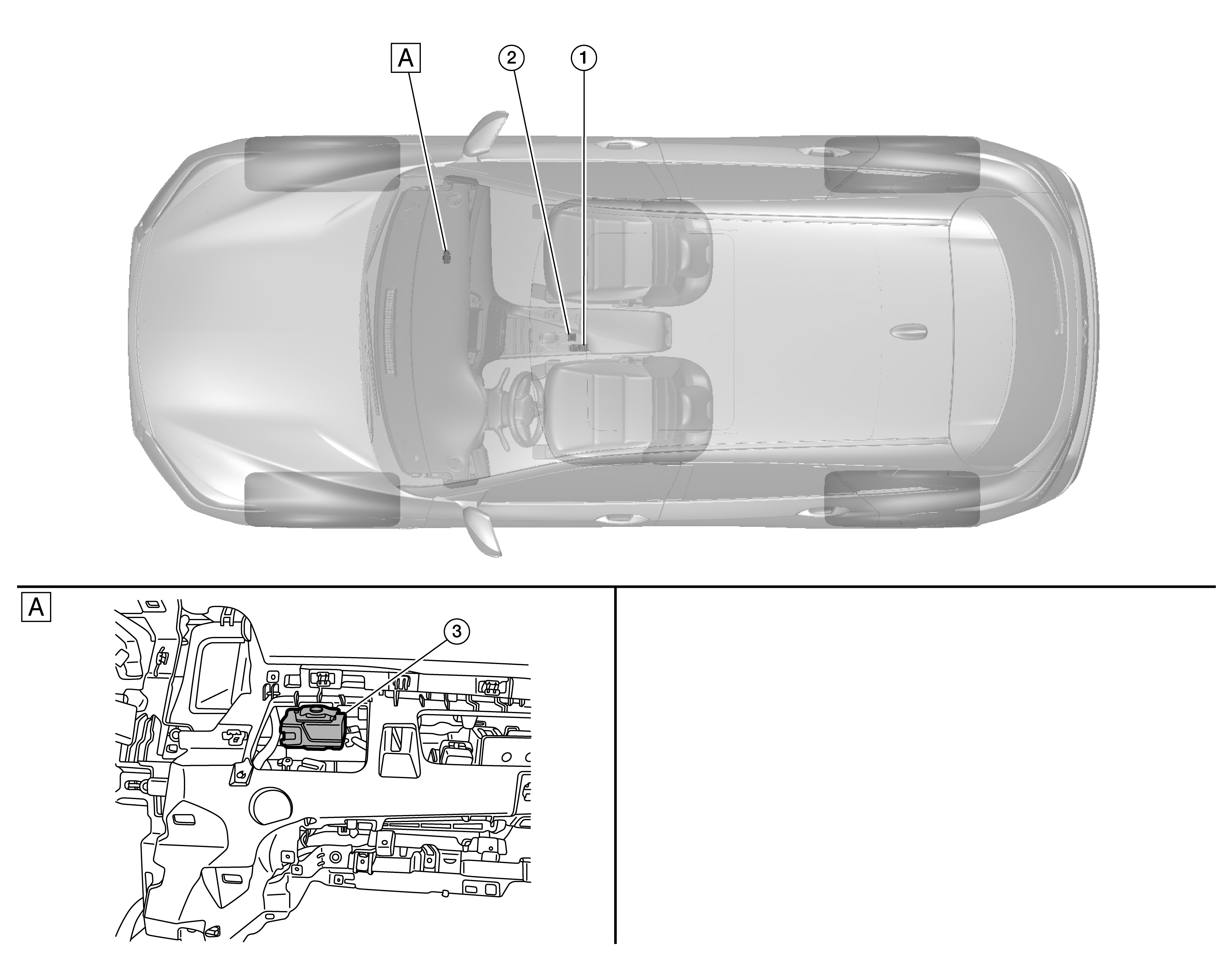

GNSDB139226Courtesy of NISSAN NORTH AMERICA, INC.
A. Right side of instrument (view with dash panel finisher removed)
No. Component Function
1. Electric parking brake switch Refer to Electric Parking Brake Switch .
2. Drive mode switch Refer to Drive Mode Select Switch .
3. Chassis control module Refer to Chassis Control Module .
