Exploded View
Without Tow Package
| 1. | Mounting rubber | 2. | Charge air cooler | 3. | Mounting rubber (upper) |
| 4. | Mounting rubber | 5. | Mounting rubber (lower) | 6. | Radiator air guide (lower) |
| 7. | Clamp | 8. | CVT fluid warmer hose A | 9. | Clamp |
| 10. | Reservoir tank | 11. | Reservoir tank cap | 12. | CVT fluid warmer hose B |
| 13. | Clamp | 14. | Reservoir tank hose | 15. | Cooling fan assembly cover |
| 16. | Radiator overflow hose | 17. | Cooling fan assembly | 18. | Cooling fan assembly harness |
| 19. | Clamp | 20. | Radiator hose (lower) | 21. | Radiator hose (upper) |
| 22. | Radiator assembly | 23. | Engine coolant temperature sensor 2 | 24. | O-ring |
| 25. | Radiator drain plug | A. | To water pump housing. Refer to Exploded View . | B. | To multi-way control valve. Refer to Exploded View . |
| C. | To CVT fluid cooler pipe A. Refer to Exploded View - Without Tow Package . | D. | To CVT oil warmer. Refer to Exploded View . | ||

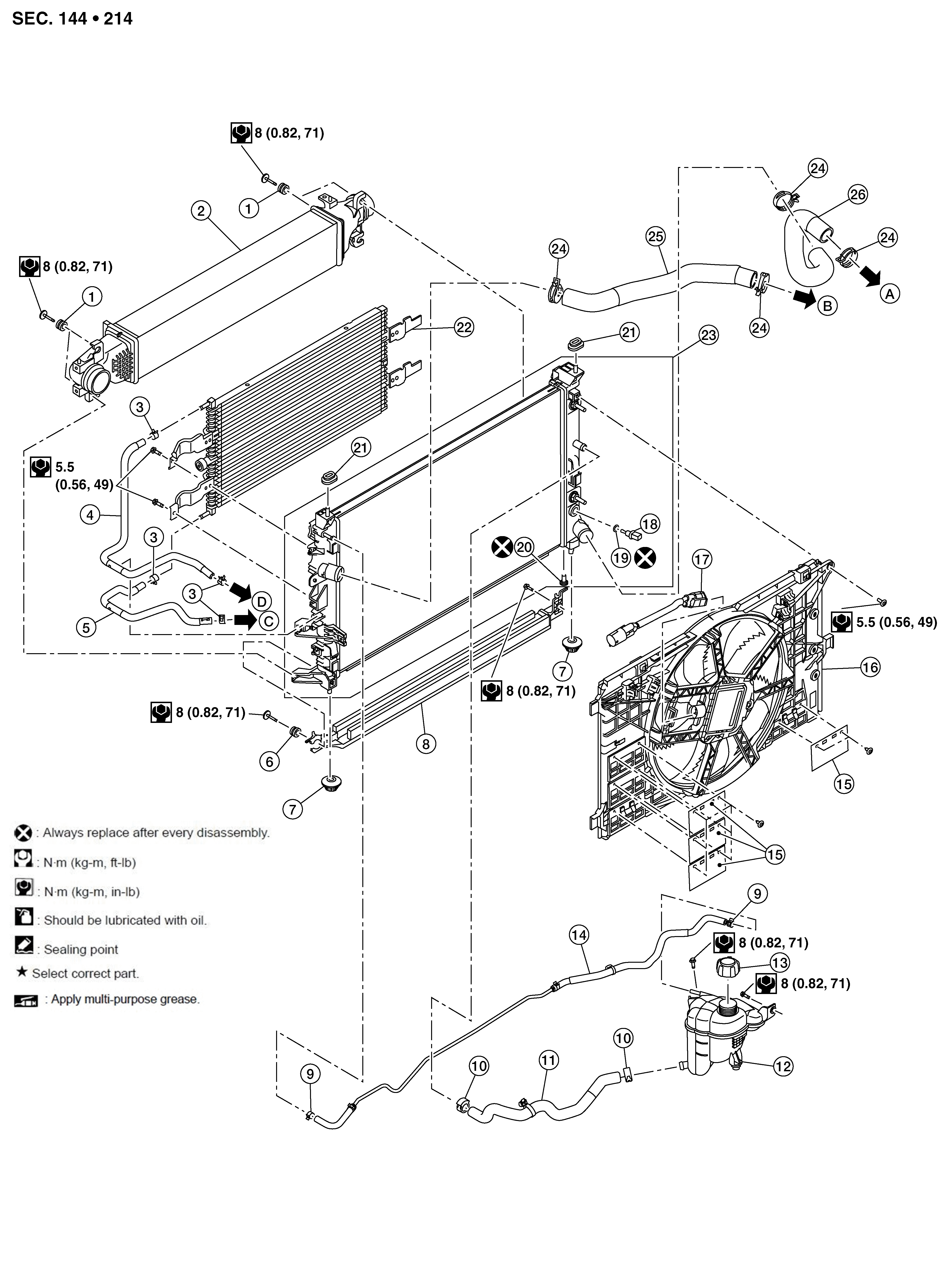

With Tow Package
| 1. | Mounting rubber | 2. | Charge air cooler | 3. | Clamp |
| 4. | CVT fluid cooler hose A | 5. | CVT fluid cooler hose B | 6. | Mounting rubber |
| 7. | Mounting rubber (lower) | 8. | Radiator air guide (lower) | 9. | Clamp |
| 10. | Clamp | 11. | Reservoir tank hose | 12. | Reservoir tank |
| 13. | Reservoir tank cap | 14. | Radiator overflow hose | 15. | Cooling fan assembly cover |
| 16. | Cooling fan assembly | 17. | Cooling fan assembly harness | 18. | Engine coolant temperature sensor 2 |
| 19. | O-ring | 20. | Radiator drain plug | 21. | Mounting rubber (upper) |
| 22. | CVT fluid cooler | 23. | Radiator assembly | 24. | Clamp |
| 25. | Radiator hose (upper) | 26. | Radiator hose (lower) | A. | To water pump housing. Refer to Exploded View . |
| B. | To multi-way control valve. Refer to Exploded View . | C. | To CVT fluid cooler pipe A. Refer to Exploded View - With Tow Package . | D. | To CVT oil warmer. Refer to Exploded View . |
