Push-Button Ignition Switch
Push-Button Ignition Switch

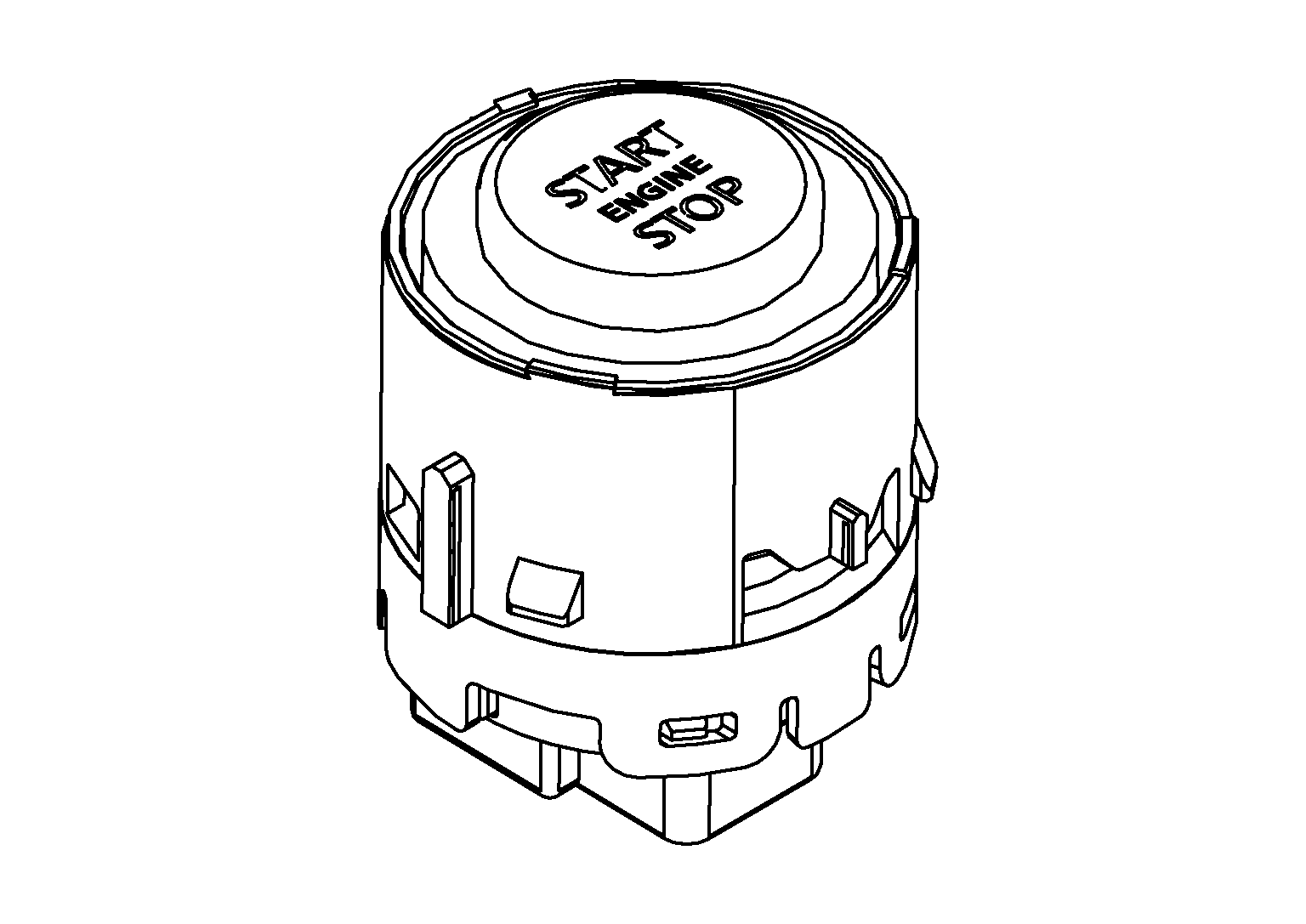

Push-button ignition switch is installed in the center console.
Courtesy of NISSAN NORTH AMERICA, INC.
When push-button ignition switch is pressed ON, it transmits the status signal to the BCM and IPDM E/R.
Courtesy of NISSAN NORTH AMERICA, INC.
