Component Location

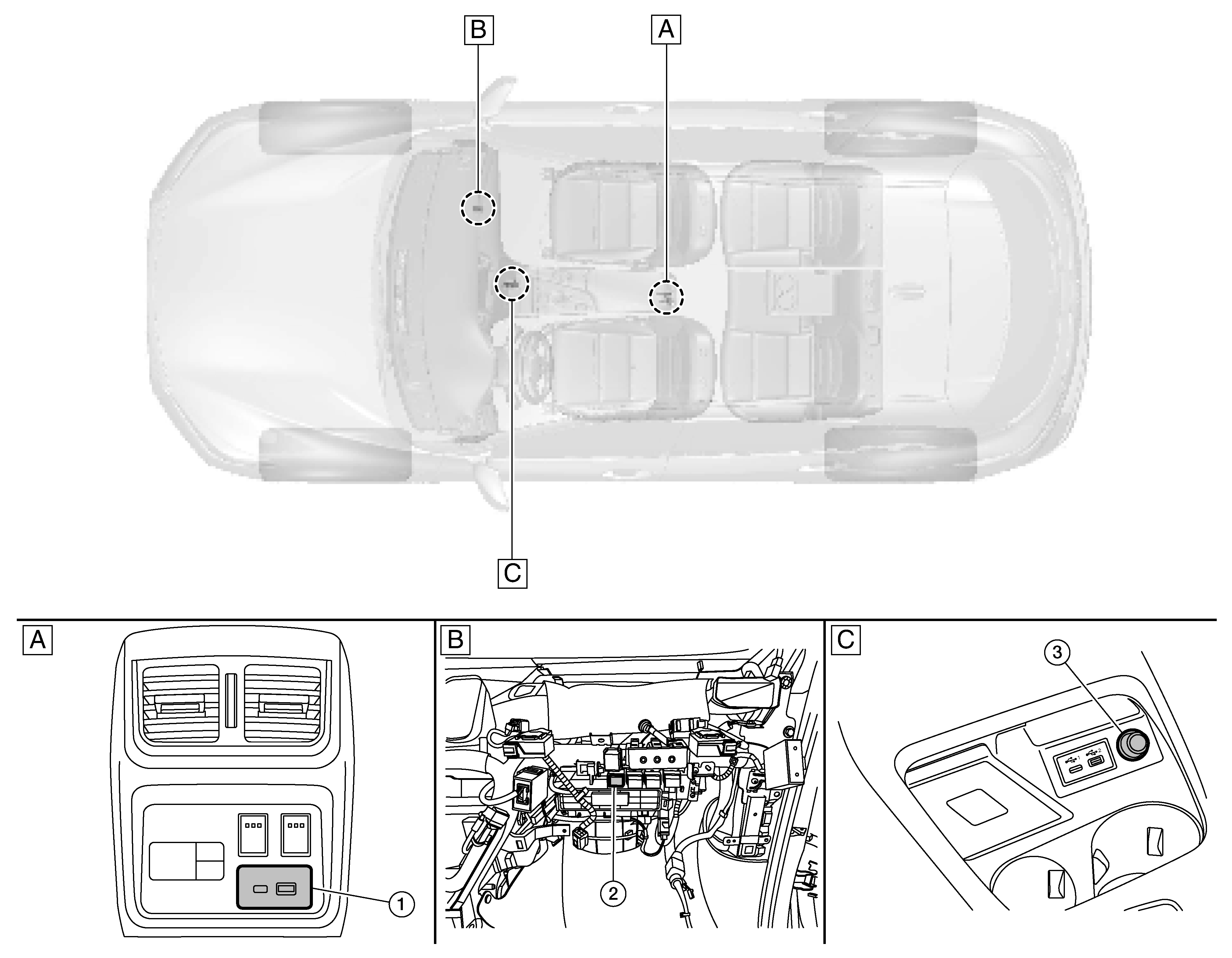

GNSDB138560Courtesy of NISSAN NORTH AMERICA, INC.
A. Center console rear finisher B. View with instrument panel removed C. Center console
No. Component
1. Rear USB charge port
2. Front power socket relay
3. Front power socket
