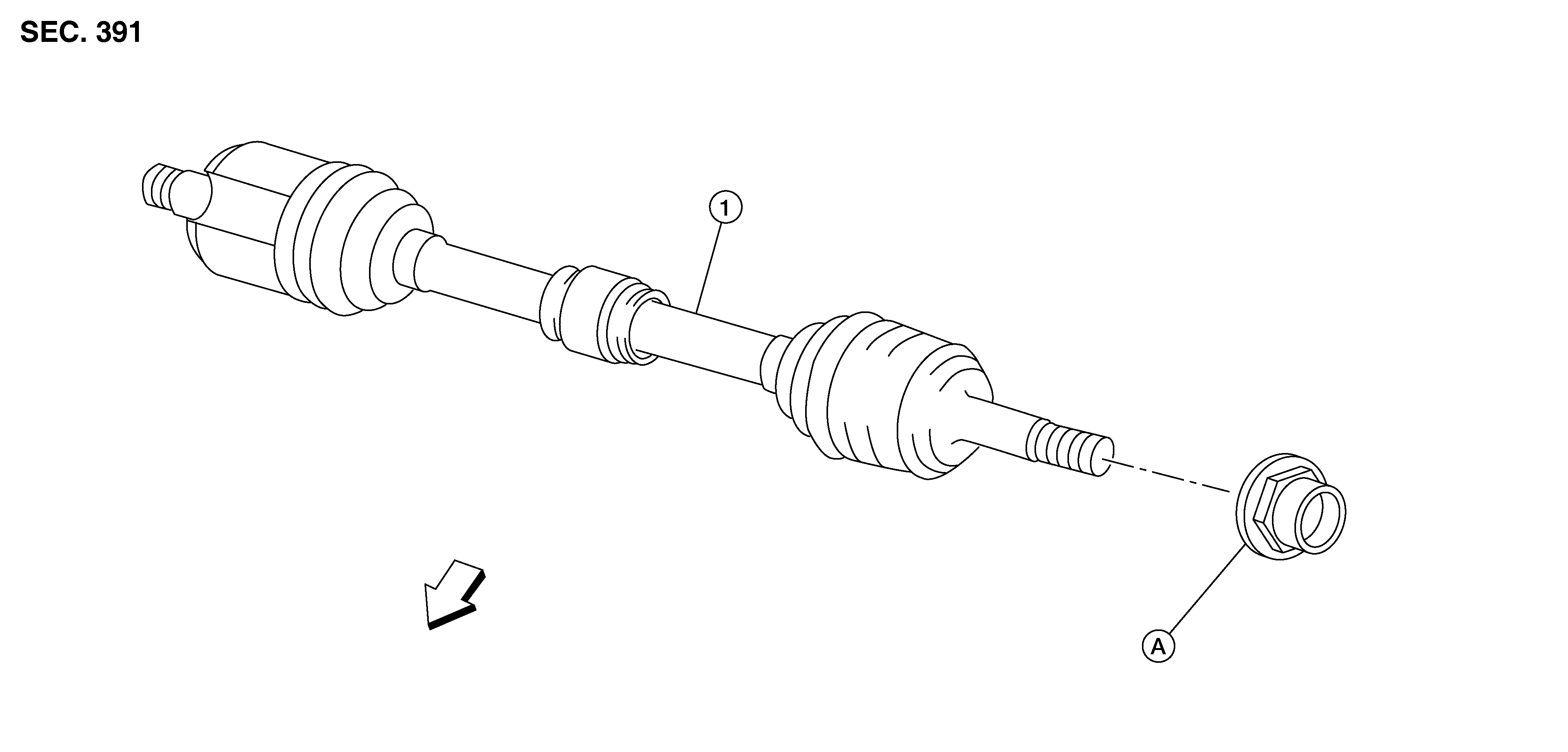

Exploded View

GNSDB127821

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Drive shaft

A.

Refer to Removal and Installation (LH) .

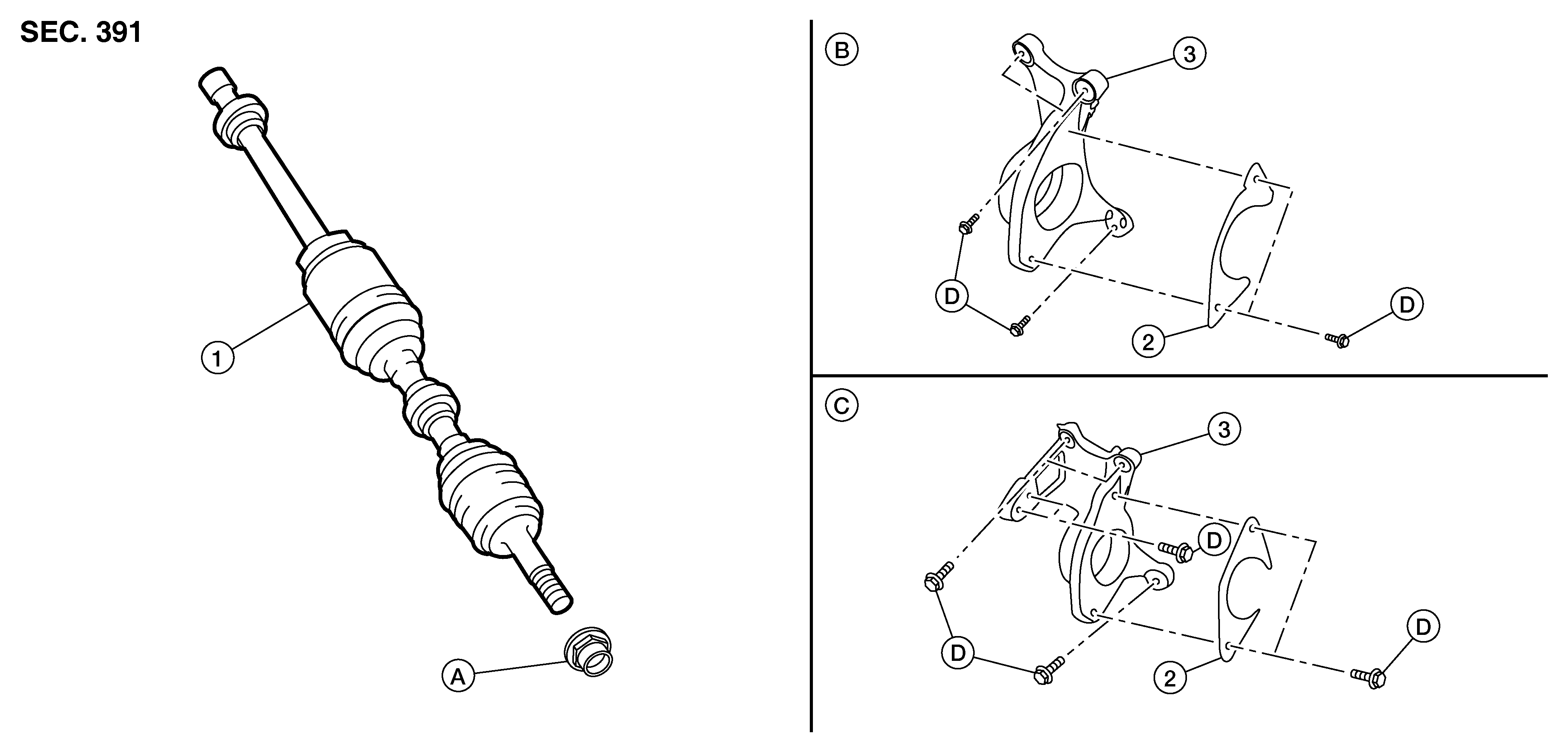

RH

GNSDB138348

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Drive shaft	2.	Bearing retainer	3.	Support bearing bracket
A.	Refer to Removal and Installation .	B.	Support bearing bracket (FWD)	C.	Support bearing Bracket (AWD)
D.	Refer to Removal and Installation (RH) .
