Home >> Infiniti >> 2024 >> QX50 Pure, FWD >> Repair and Diagnosis >> Drivelines & Axles >> Wheel Hubs >> Front Axle >> Removal And Installation >> Front Drive Shaft Boot >> Exploded View

Exploded View

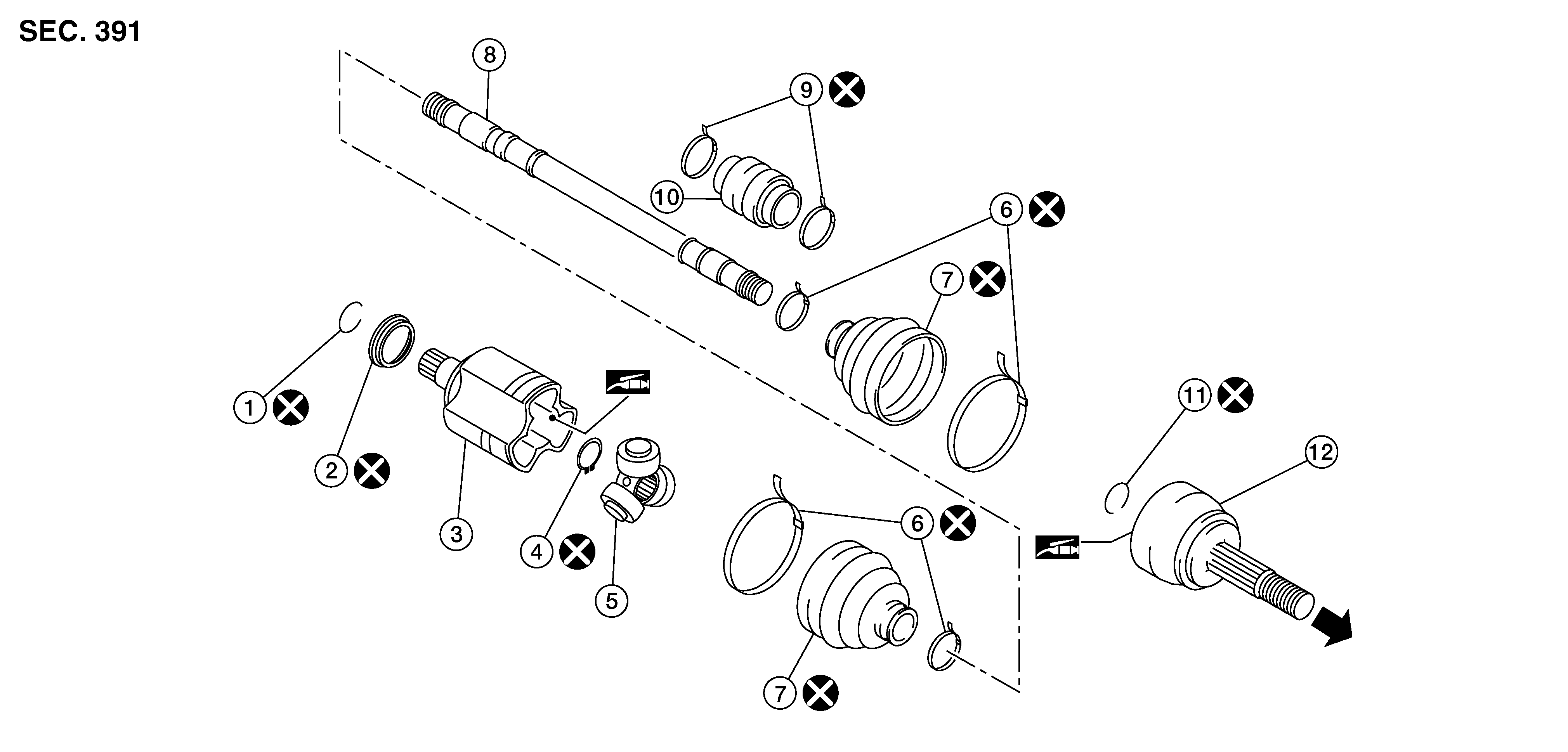

GNSDB109335Courtesy of NISSAN NORTH AMERICA, INC.
1. Circlip 2. Dust shield 3. Slide joint housing
4. Snap ring 5. Spider assembly 6. Boot band
7. Boot 8. Shaft 9. Damper band
10. Dynamic damper 11. Circlip 12. Joint sub-assembly
SYMBOL Wheel side
