Exploded View

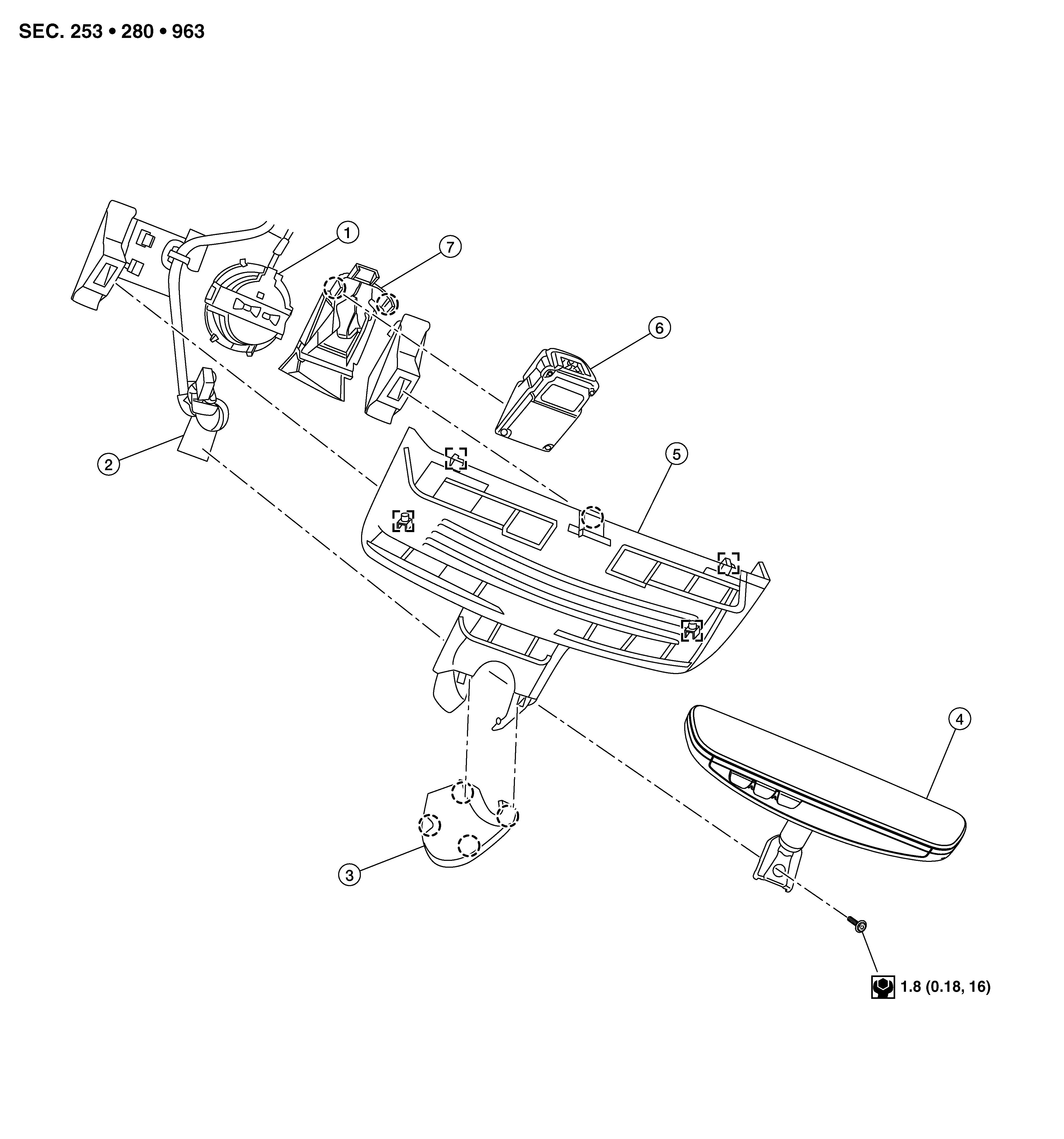

WITH RAIN SENSOR
| 1. | Rain sensor | 2. | Mirror base | 3. | Inside mirror cover |
| 4. | Inside mirror | 5. | Front camera unit cover | 6. | Front camera unit |
| 7. | Front camera unit bracket | Pawl | Metal clip |

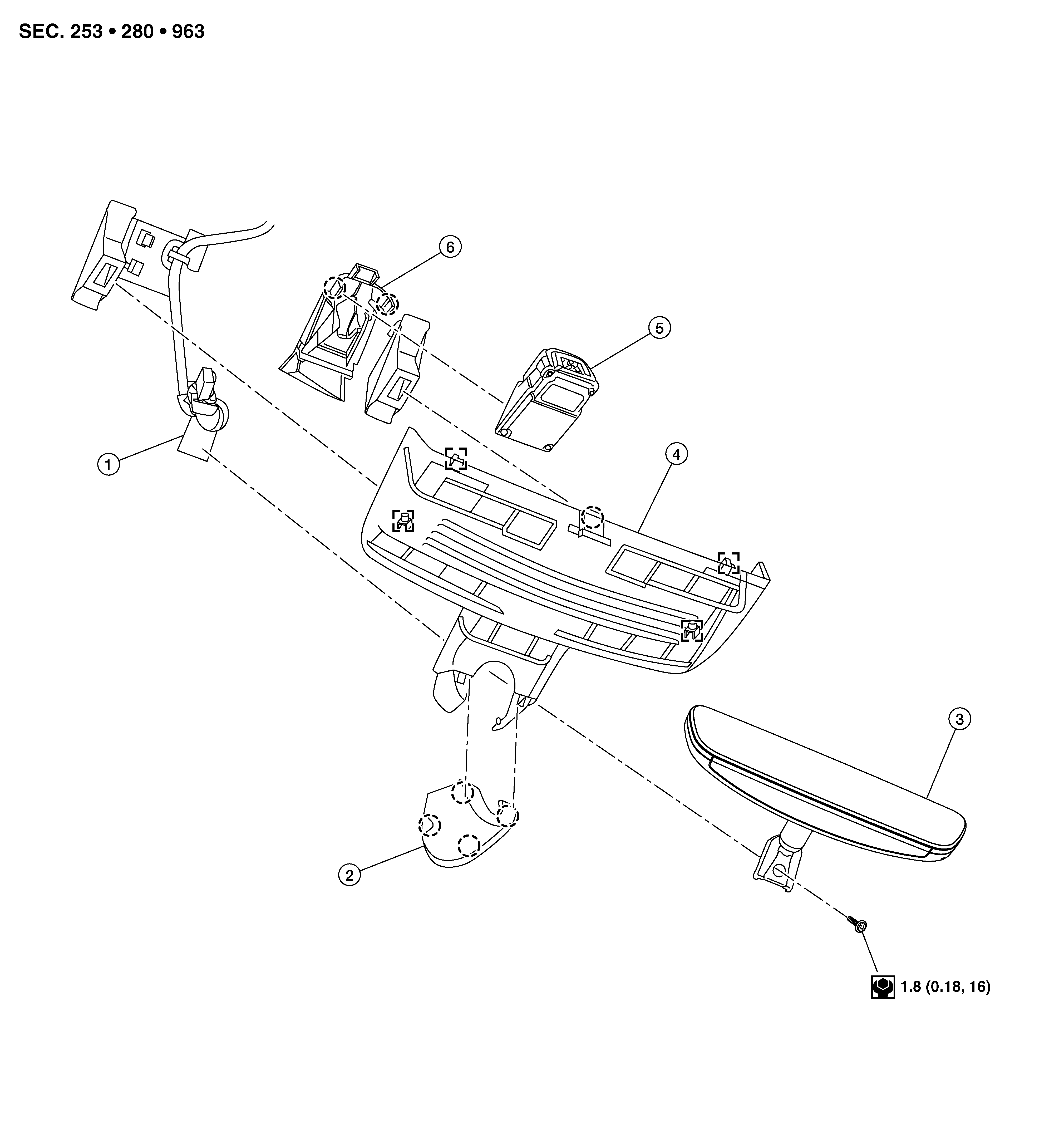

WITHOUT RAIN SENSOR
| 1. | Mirror base | 2. | Inside mirror cover | 3. | Inside mirror |
| 4. | Front camera unit cover | 5. | Front camera unit | 6. | Front camera unit bracket |
| Pawl | Metal clip | ||||
