Exploded View

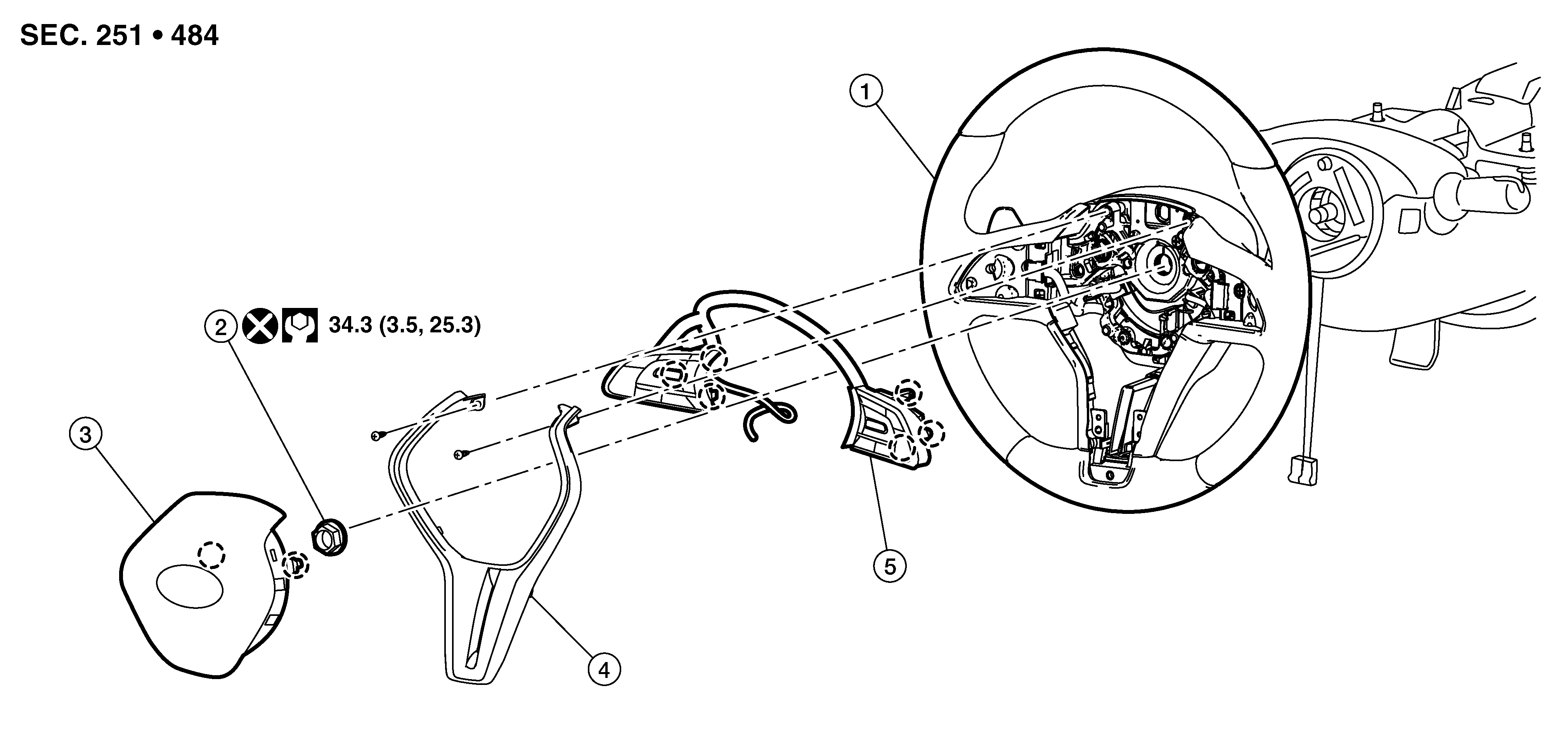

Fig 1: Steering Wheel With Torque Specifications
GNSDB139047Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering wheel 2. Steering wheel lock nut 3. Driver air bag module
4. Steering wheel finisher 5. ProPILOT Assist Steering switch SYMBOL : Pawl
