Exploded View

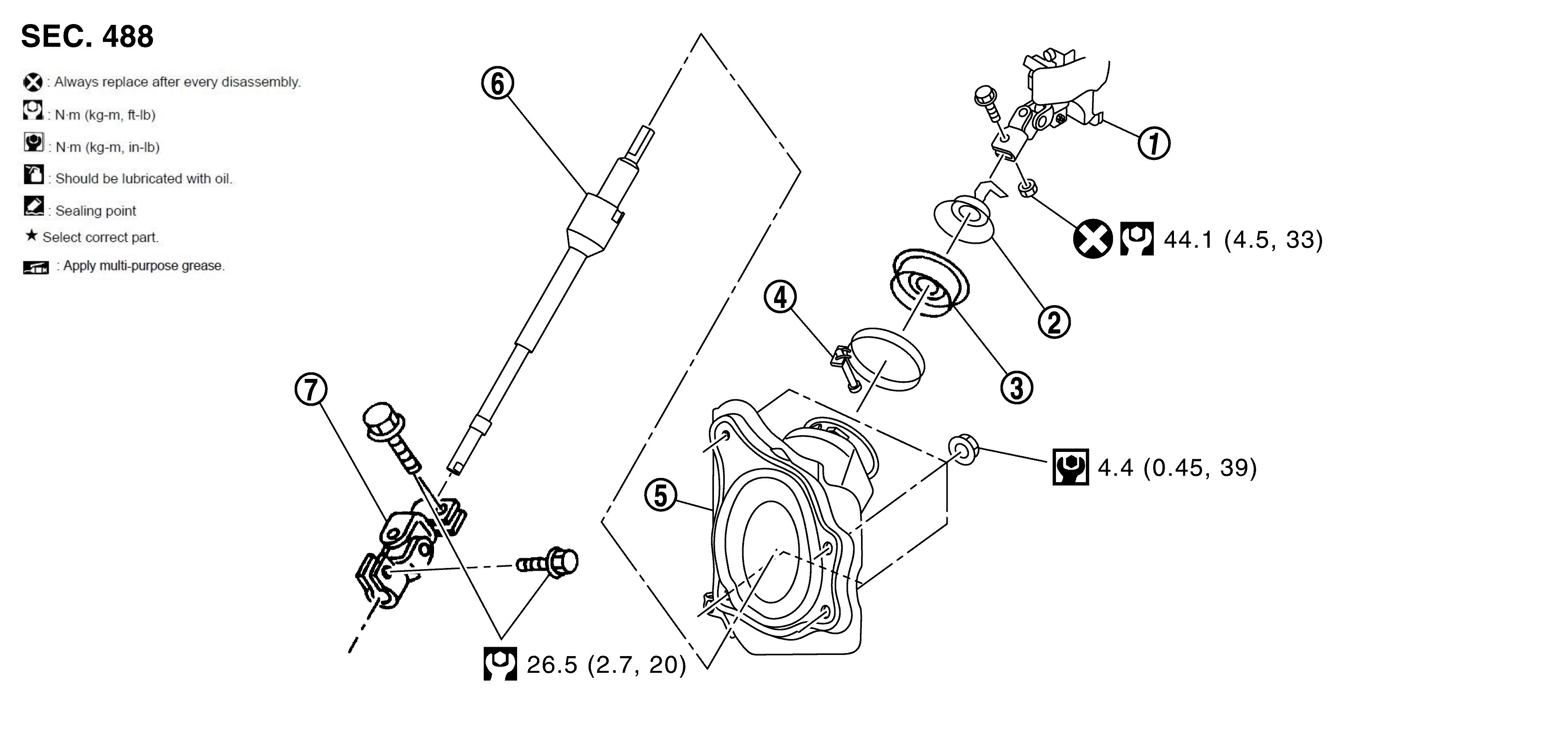

Fig 1: Steering Shaft with Torque Specifications
GNSDB148707Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Steering column assembly SYMBOL Collar SYMBOL Hole cover seal
SYMBOL Clamp SYMBOL Hole cover SYMBOL Steering shaft
SYMBOL Lower joint
SYMBOL : Always replace after every disassembly.
SYMBOL : N.m (kg-m, ft-lb)
SYMBOL : N.m (kg-m, in-lb)
