DTC Description
DTC DETECTION LOGIC

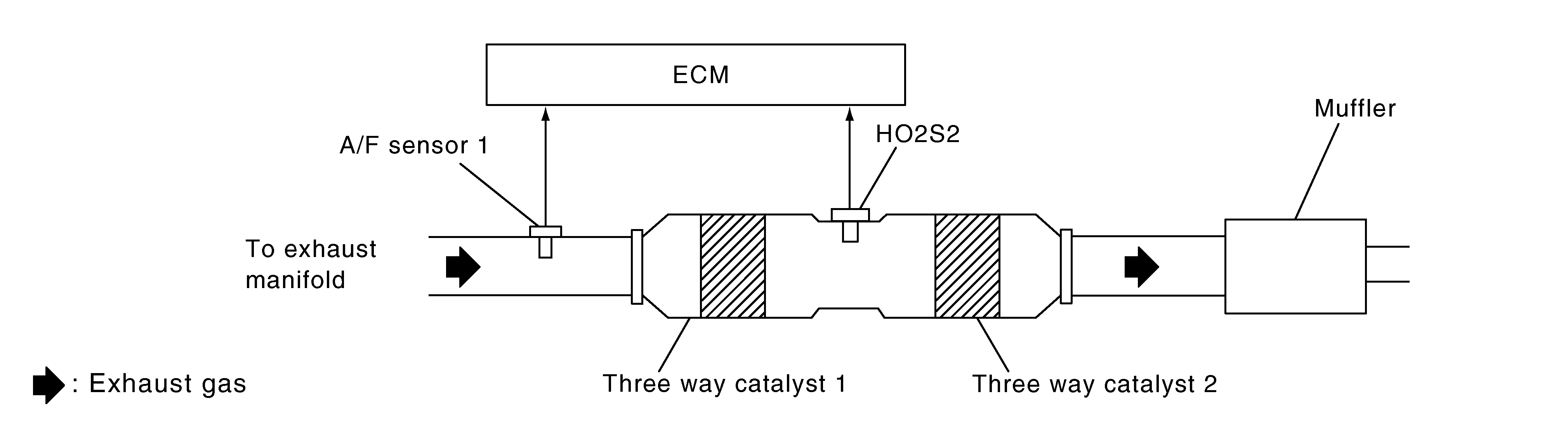

The ECM monitors the switching frequency ratio of air fuel ratio (A/F) sensor 1 and heated oxygen sensor 2.
A three way catalyst 1 with high oxygen storage capacity will indicate a low switching frequency of heated oxygen sensor 2. As oxygen storage capacity decreases, the heated oxygen sensor 2 switching frequency will increase.
When the frequency ratio of A/F sensor 1 and heated oxygen sensor 2 approaches a specified limit value, the three way catalyst 1 malfunction is diagnosed.
| DTC No. | CONSULT screen terms (Trouble diagnosis content) |
DTC detecting condition |
|---|---|---|
| P0430 | TW CATALYST SYS-B2 (Catalyst system efficiency below threshold bank 2) |
|
POSSIBLE CAUSE
- Three way catalyst (manifold)
- Exhaust tube
- Intake air leaks
- Fuel injector
- Fuel injector leaks
- Spark plug
- Improper ignition timing
FAIL-SAFE
Not applicable
