DRIVE MODE SELECT SWITCH : Removal and Installation

CAUTION:

Use waste to protect parts potential to interfere from being scratched.

REMOVAL

Remove center console side finisher LH and center console side finisher RH. Refer to CENTER CONSOLE ASSEMBLY : Exploded View .
Remove cup holder assembly. Refer to CENTER CONSOLE ASSEMBLY : Exploded View .

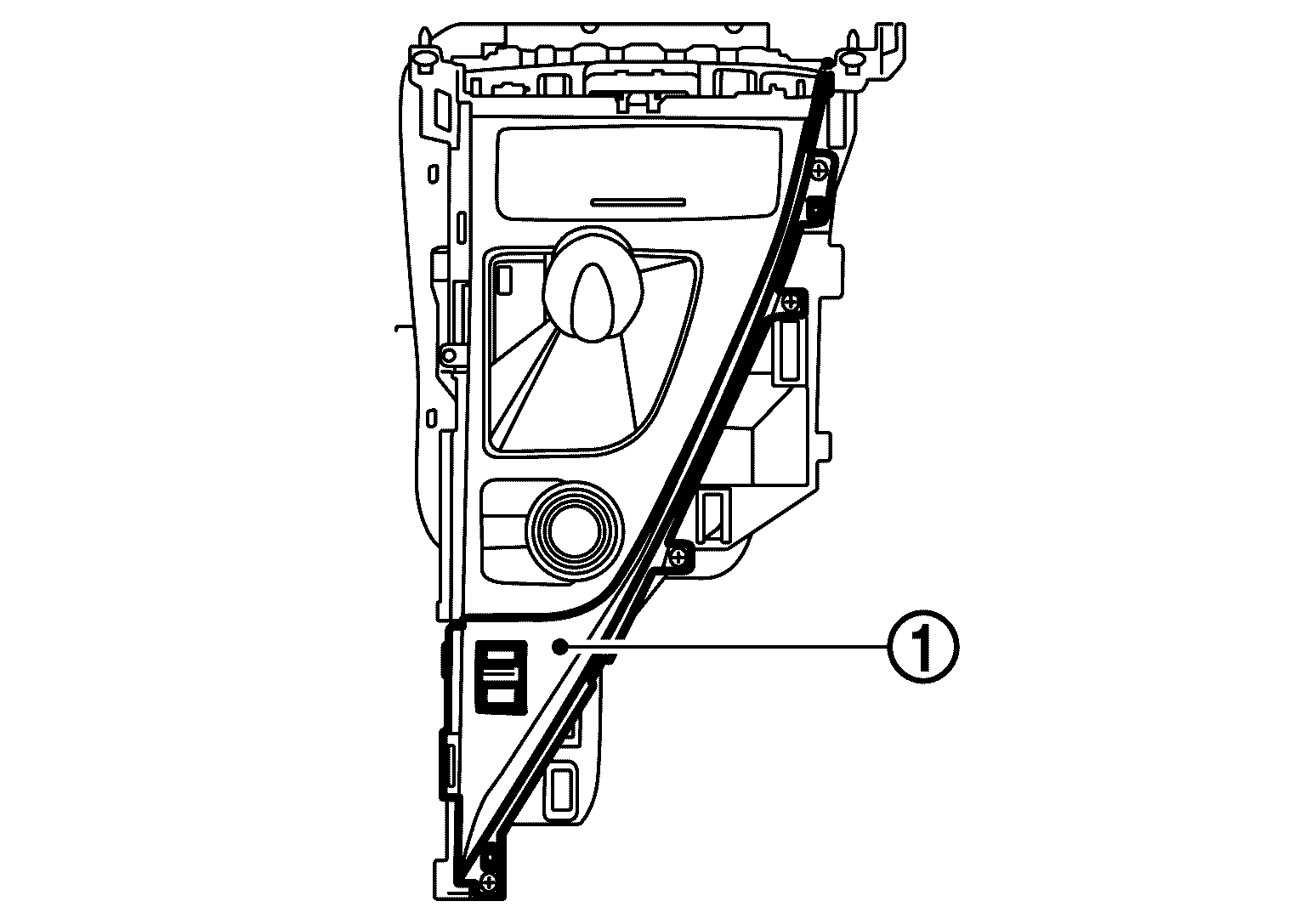

Remove fixing screw, and then remove finisher .

Courtesy of NISSAN NORTH AMERICA, INC.
Disconnect harness connector from drive mode select switch.
Remove drive mode select switch fixing screw, and then remove drive mode select switch.

INSTALLATION

Install in the reverse order of removal.
