Exploded View

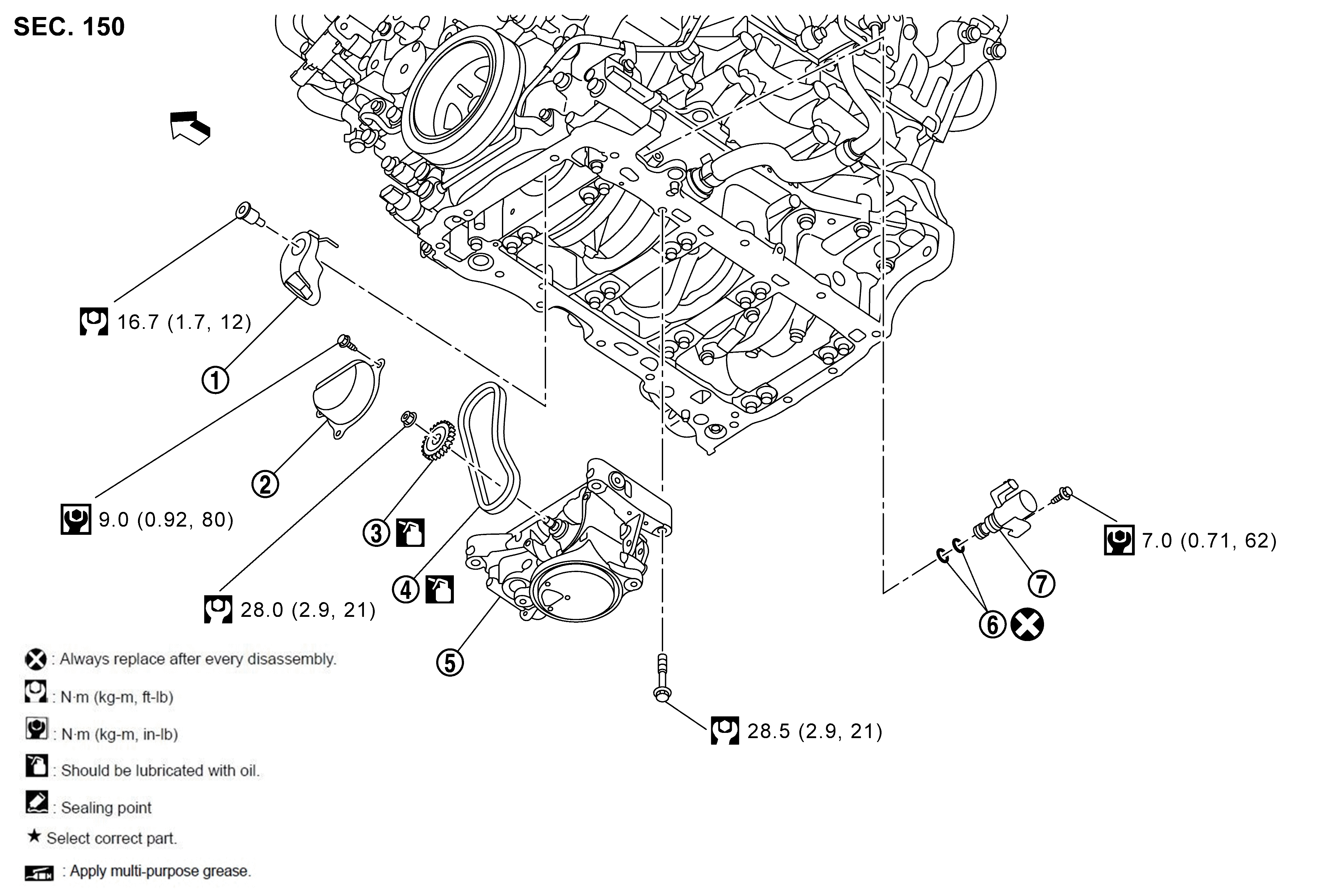

Fig 1: Oil Pump with Torque Specifications
GNSDB149094Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Oil pump drive chain tensioner SYMBOL Cover SYMBOL Oil pump sprocket
SYMBOL Oil pump drive chain SYMBOL Oil pump assembly SYMBOL O-ring
SYMBOL Engine oil pressure control solenoid valve
SYMBOL : Engine front
SYMBOL : Always replace after every disassembly.
SYMBOL : N.m (kg-m, ft-lb)
SYMBOL : N.m (kg-m, in-lb)
SYMBOL : Should be lubricated with oil.
