Exploded View

REMOVAL

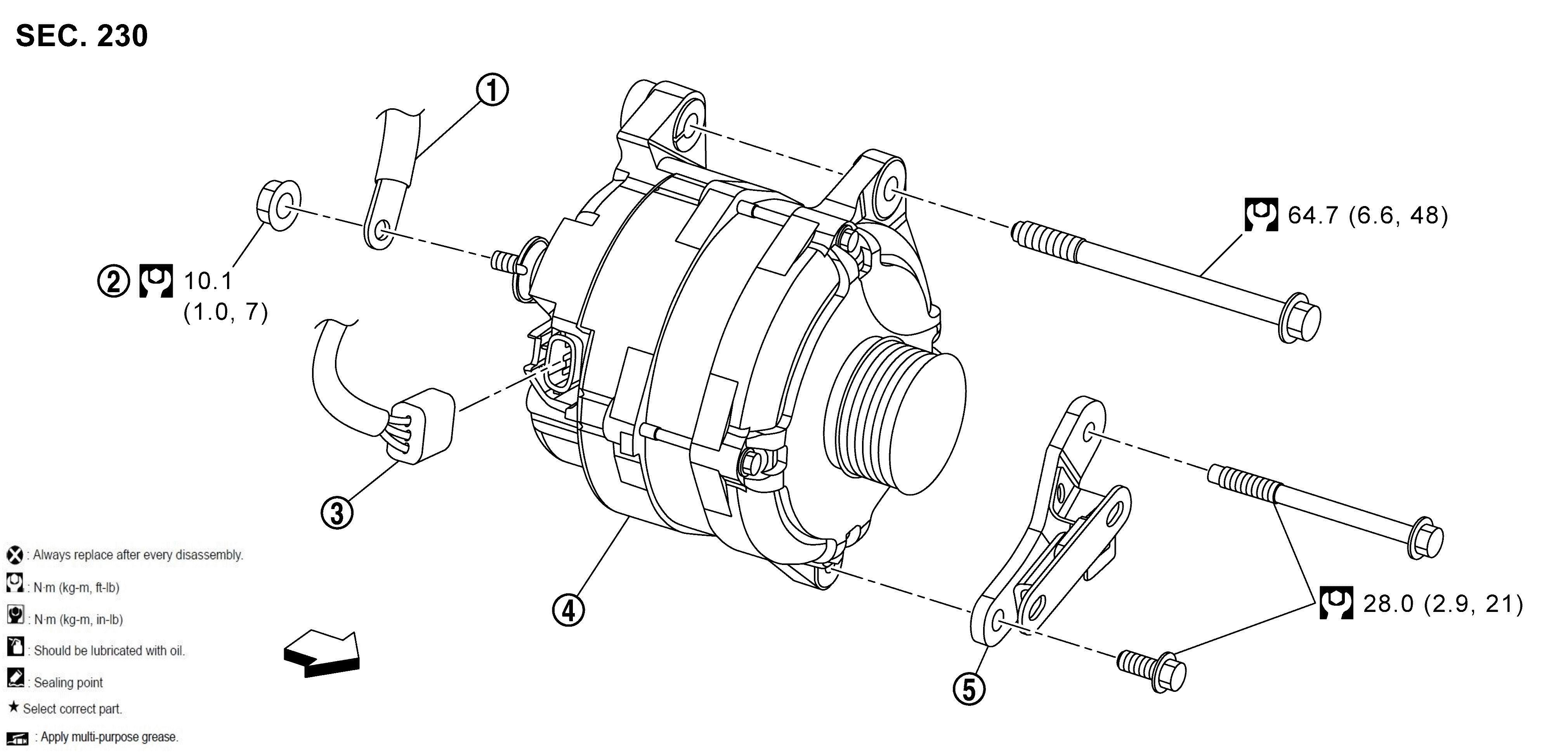

Fig 1: Alternator with Torque Specifications
GNSDB147704SYMBOLSYMBOLSYMBOLSYMBOLSYMBOLSYMBOLSYMBOLCourtesy of NISSAN NORTH AMERICA, INC.
SYMBOL "B" terminal harness SYMBOL "B" terminal nut SYMBOL Alternator connector
SYMBOL Alternator SYMBOL Alternator stay
SYMBOL : Vehicle front
SYMBOL : N.m (kg-m, ft-lb)

DISASSEMBLY

A003TX2391

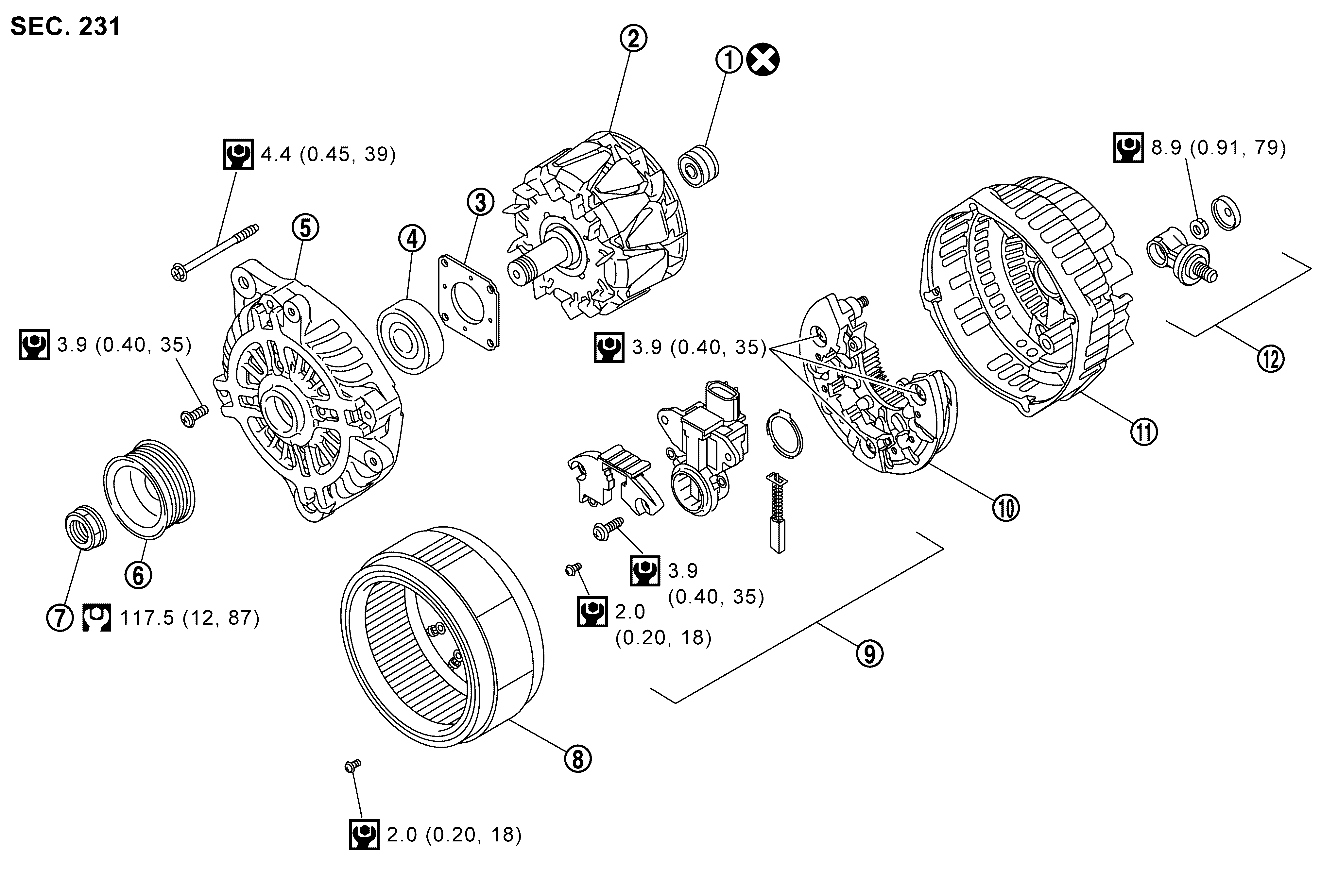

GNSDB149007Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Rear bearing SYMBOL Rotor assembly SYMBOL Retainer
SYMBOL Front bearing SYMBOL Front bracket assembly SYMBOL Pulley
SYMBOL Pulley nut SYMBOL Stator assembly SYMBOL IC voltage regulator assembly
SYMBOL Diode assembly SYMBOL Rear bracket assembly SYMBOL Terminal set
SYMBOL : Always replace after every disassembly.
SYMBOL : N.m (kg-m, in-lb)
SYMBOL : N.m (kg-m, ft-lb)

A003TL0191

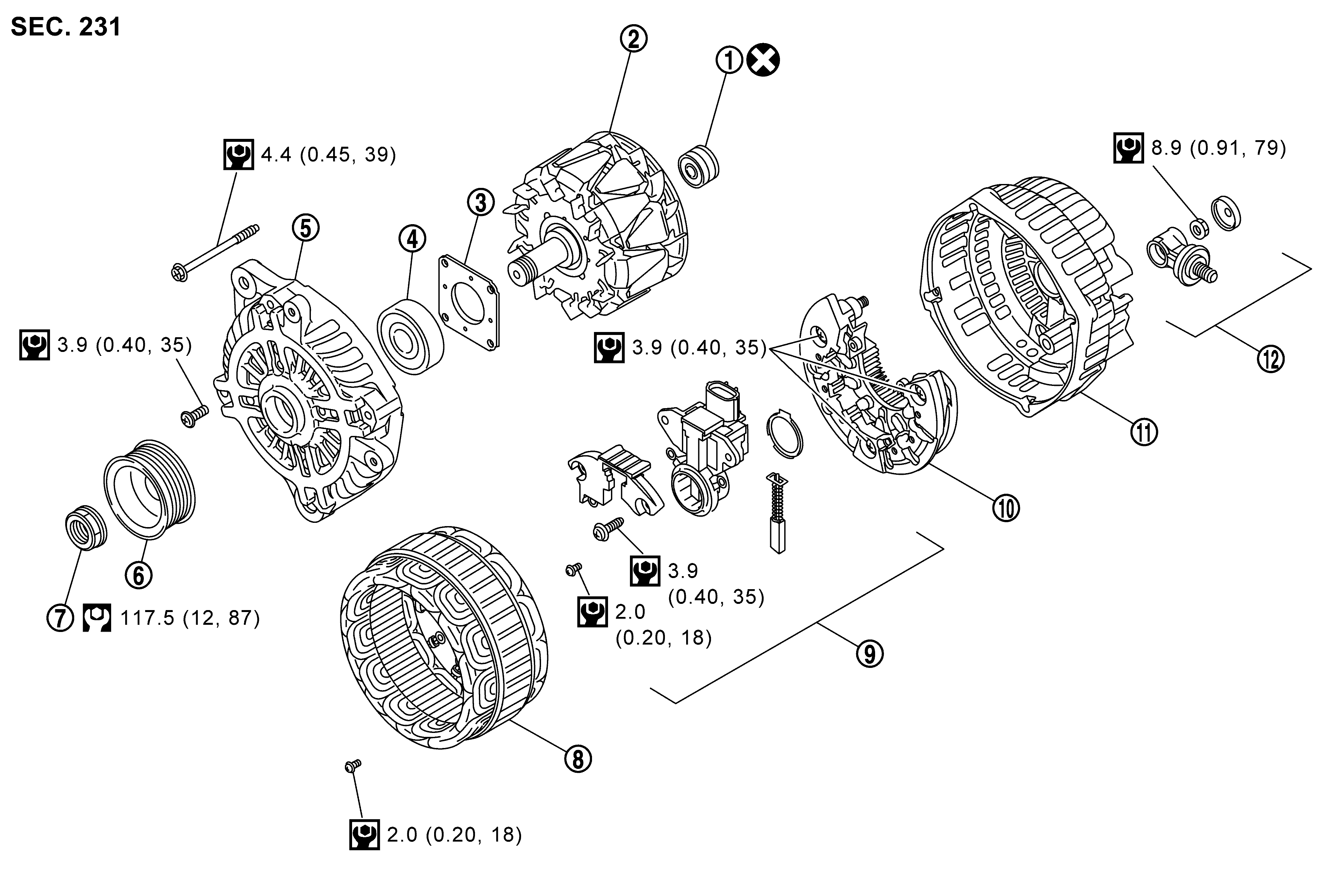

GNSDB148670Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Rear bearing SYMBOL Rotor assembly SYMBOL Retainer
SYMBOL Front bearing SYMBOL Front bracket assembly SYMBOL Pulley
SYMBOL Pulley nut SYMBOL Stator assembly SYMBOL IC voltage regulator assembly
SYMBOL Diode assembly SYMBOL Rear bracket assembly SYMBOL Terminal set
SYMBOL : Always replace after every disassembly.
SYMBOL : N.m (kg-m, in-lb)
SYMBOL : N.m (kg-m, ft-lb)
