Removal and Installation

REMOVAL

1. Disengage cluster lid A fixing pawls. Refer to INSTRUMENT PANEL ASSEMBLY : Removal and Installation .
2. Disconnect push-button ignition switch connector and NATS antenna amp. connector.

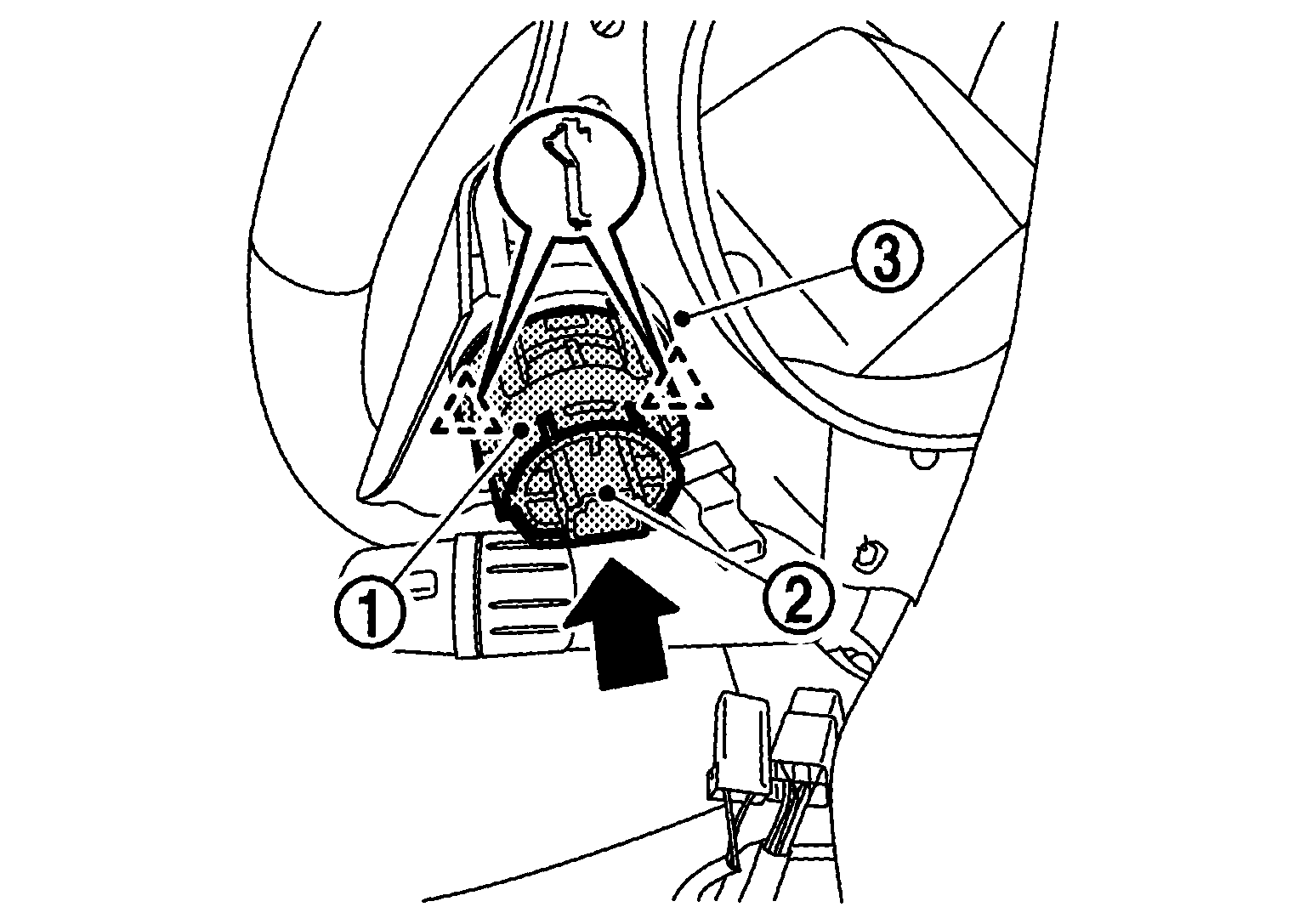

3. Disengage NATS antenna amp. fixing pawls and then remove NATS antenna amp. and push-button ignition switch as a set from cluster lid A .

   Courtesy of NISSAN NORTH AMERICA, INC.

   : Pawl

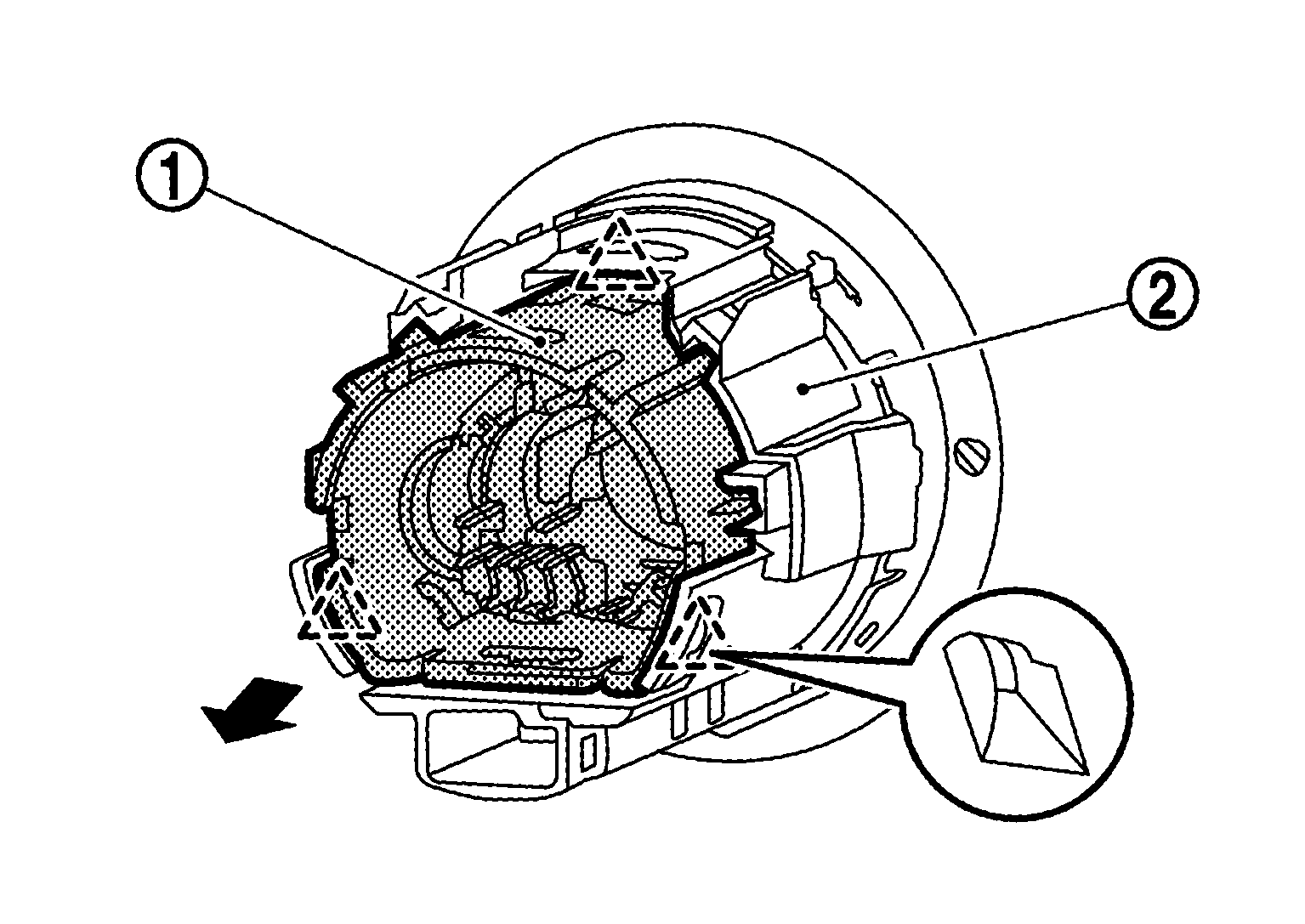

4. Disengage push-button ignition switch fixing pawl and then remove push-button ignition switch from NATS antenna amp. .

   Courtesy of NISSAN NORTH AMERICA, INC.

   : Pawl

INSTALLATION

Install in the reverse order of removal.
