System Description

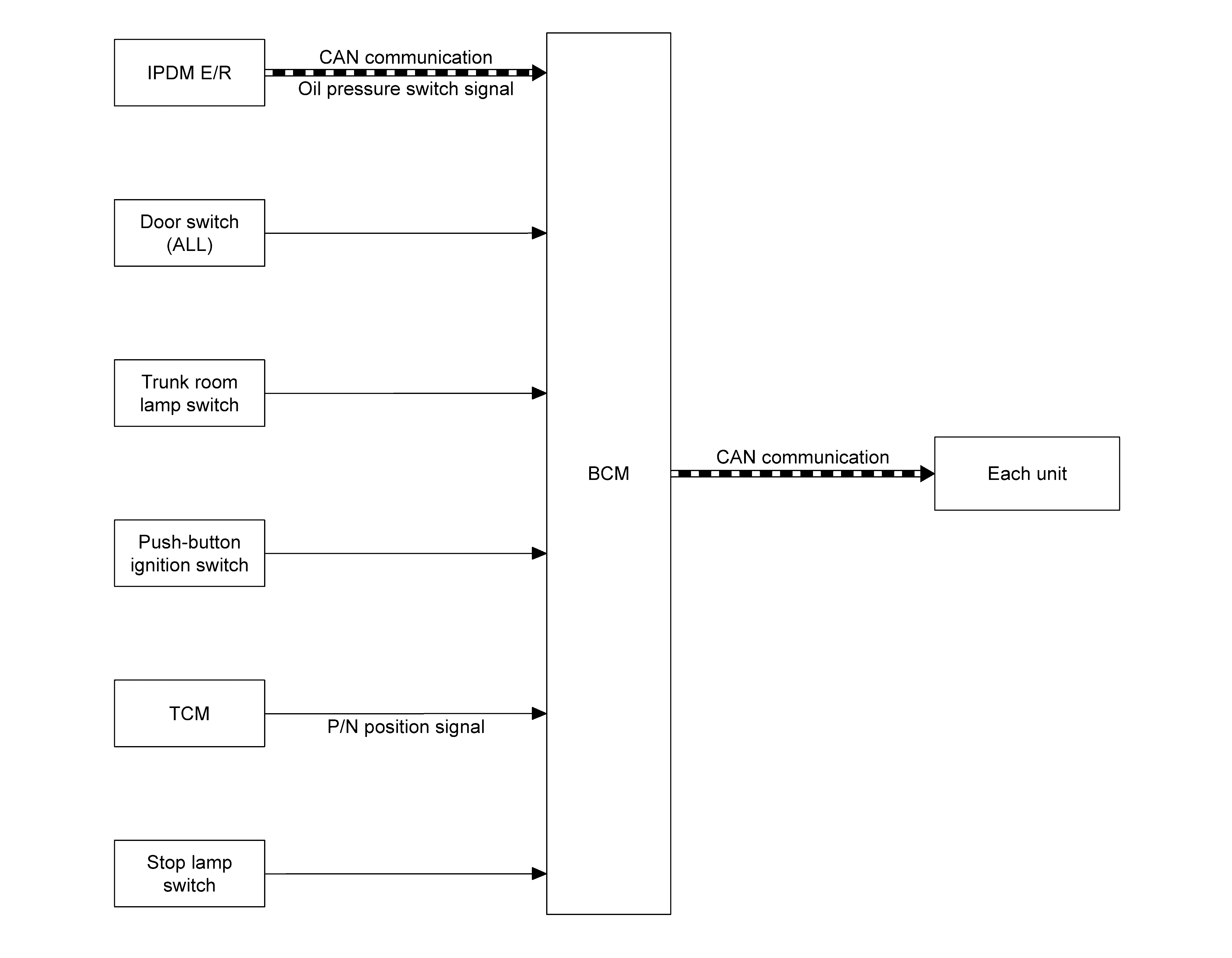

SYSTEM DIAGRAM

GNSDB148803

Courtesy of NISSAN NORTH AMERICA, INC.

OUTLINE

BCM has the signal transmission function that outputs/transmits each input/received signal to each unit.

Signal transmission function list

Signal name	Input	Output	Description
Oil pressure switch signal	IPDM E/R (CAN)	Combination meter (CAN) TCU (CAN)	Transmits the received oil pressure switch signal via CAN communication.
Door switch signal	Any door switch	Combination meter (CAN) Driver seat control unit (CAN) IPDM E/R (CAN) Pre-crash seat belt control unit (CAN) Around view monitor control unit (CAN)	Inputs the door switch signal and transmits it via CAN communication.
Trunk switch signal	Trunk room lamp switch	Combination meter (CAN)	Inputs the trunk room lamp switch signal and transmits trunk switch signal via CAN communication.
Ignition switch ON signal Ignition switch signal	Push-button ignition switch (Push switch)	Driver seat control unit (CAN) IPDM E/R (CAN) Pre-crash seat belt control unit (CAN)	Inputs the push-button ignition switch (push switch) signal and transmits the ignition switch status judged with BCM via CAN communication.
Interlock/PNP switch signal	TCM	IPDM E/R (CAN)	Inputs the P/N position signal via CAN communication.
Stop lamp switch signal	Stop lamp switch	TCM (CAN)	Inputs the stop lamp switch 1 signal and stop lamp switch 2 signal, and transmits it via CAN communication.
