System Description

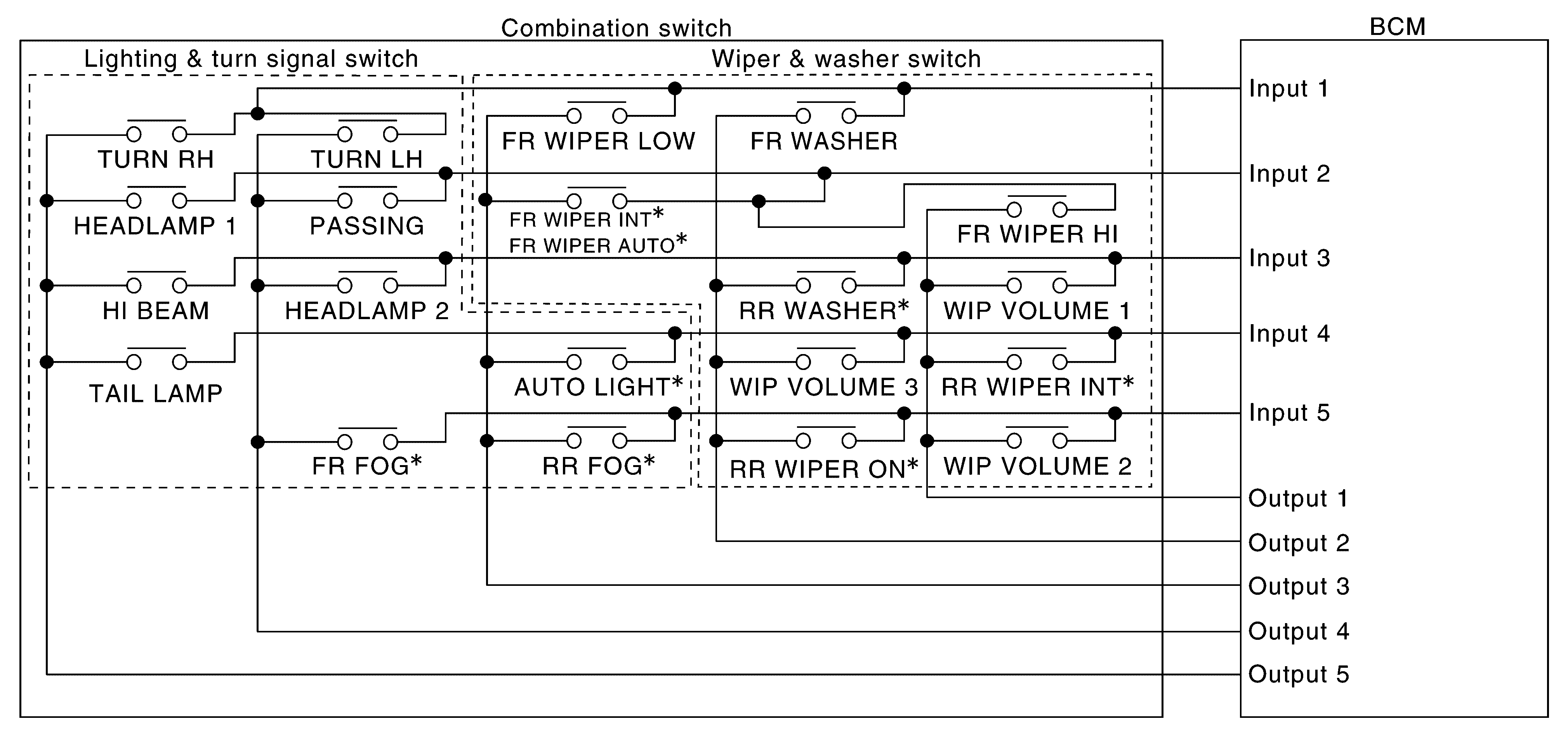

SYSTEM DIAGRAM

Courtesy of NISSAN NORTH AMERICA, INC.

OUTLINE

• BCM reads the status of the combination switch (light, turn signal, wiper and washer) and recognizes the status of each switch.
• BCM has a combination of 5 output terminals (OUTPUT 1 - 5) and 5 input terminals (INPUT 1 - 5). It reads a maximum of 20 switch status.

COMBINATION SWITCH MATRIX

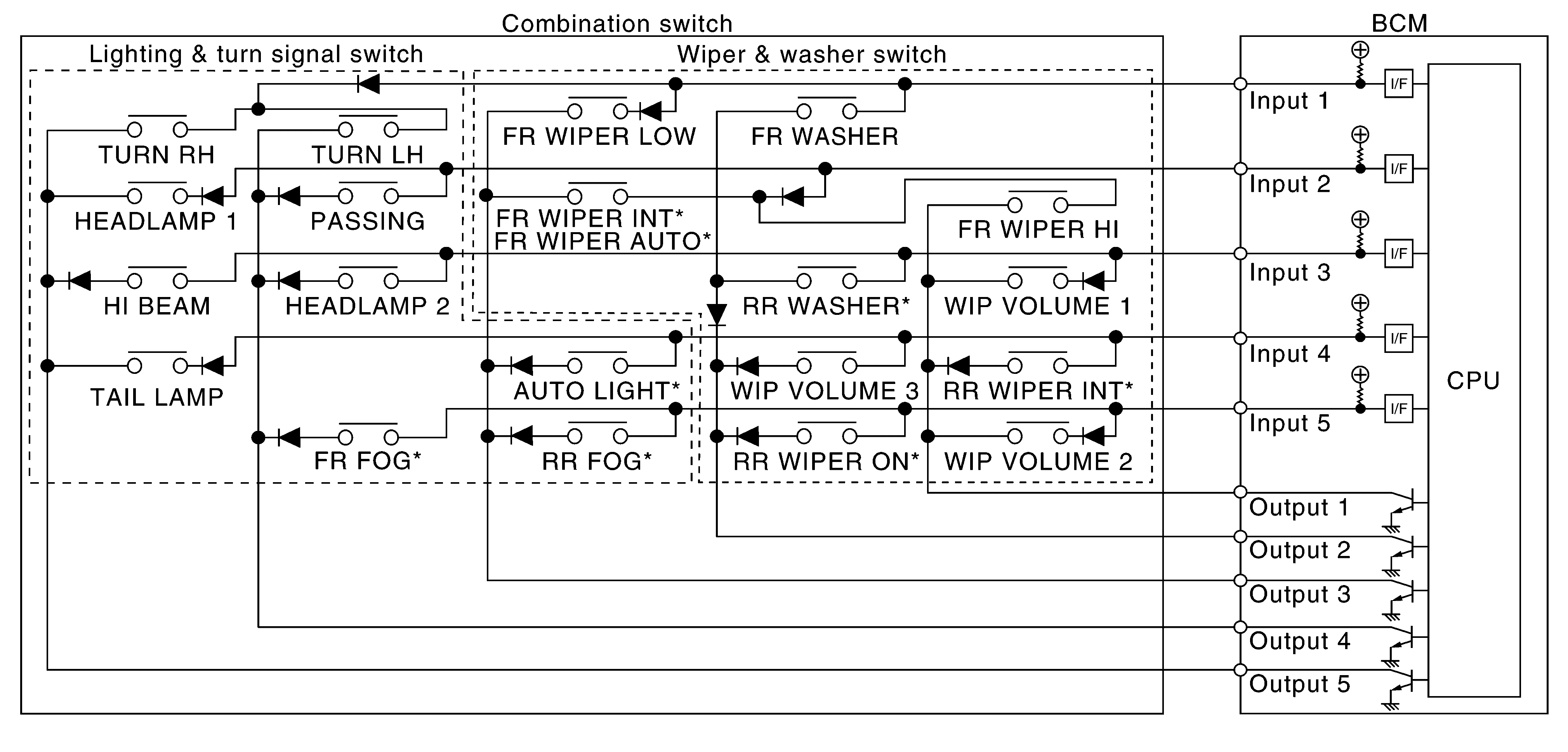

Combination switch circuit

Courtesy of NISSAN NORTH AMERICA, INC.

System	OUTPUT 1	OUTPUT 2	OUTPUT 3	OUTPUT 4	OUTPUT 5
INPUT 1	-	FR WASHER	FR WIPER LOW	TURN LH	TURN RH
INPUT 2	FR WIPER HI	-	FR WIPER INT/AUTO*	PASSING	HEADLAMP 1
INPUT 3	WIP VOLUME 1	RR WASHER*	-	HEADLAMP 2	HI BEAM
INPUT 4	RR WIPER INT*	WIP VOLUME 3	AUTO LIGHT*	-	TAIL LAMP
INPUT 5	WIP VOLUME 2	RR WIPER ON*	RR FOG*	FR FOG*	-

COMBINATION SWITCH READING FUNCTION

Description

• BCM reads the status of the combination switch at 10 ms interval normally.

  Courtesy of NISSAN NORTH AMERICA, INC.

  NOTE: BCM reads the status of the combination switch at 60 ms interval when BCM is controlled at low power consumption control mode.

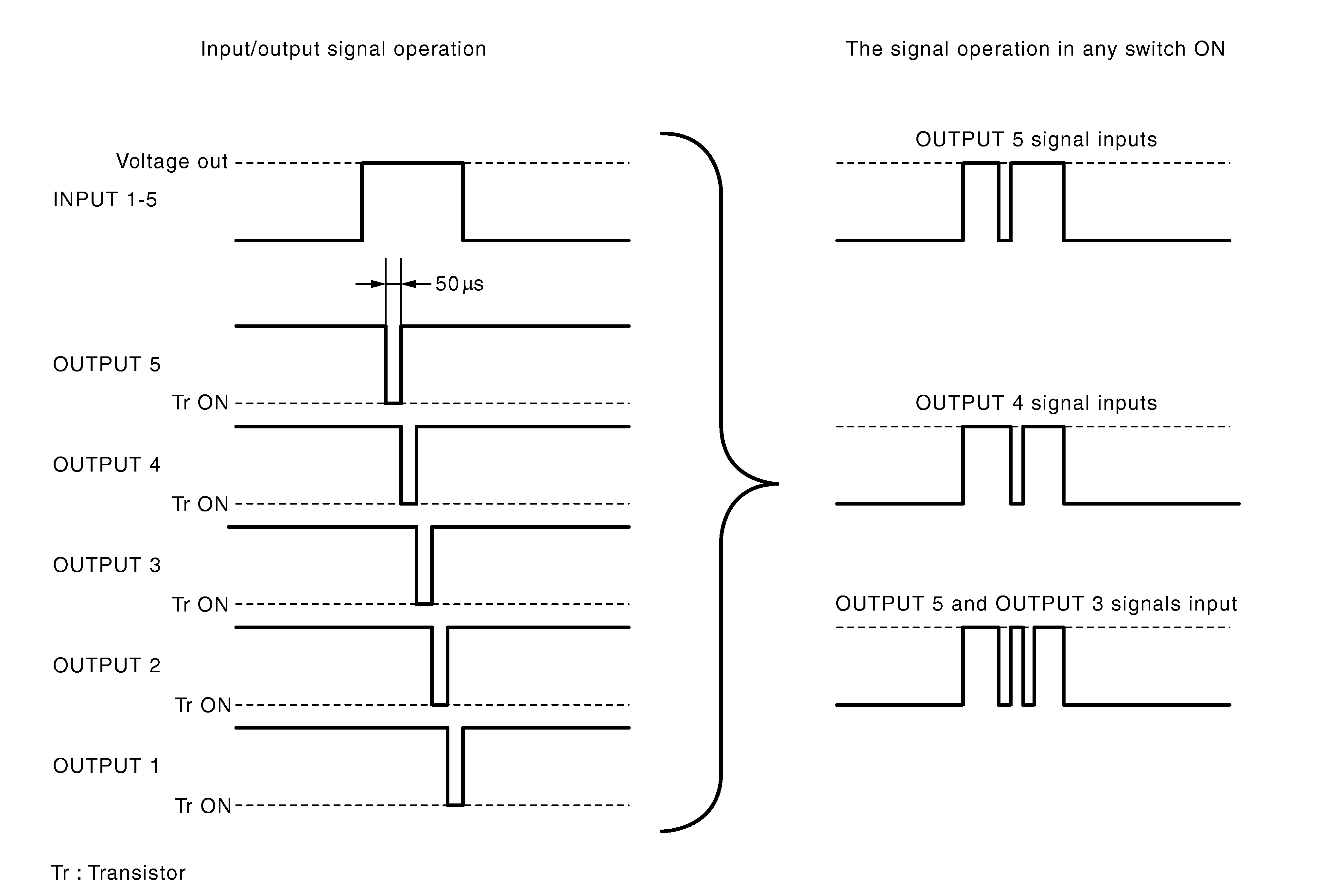

• BCM operates as follows and judges the status of the combination switch.
  • It operates the transistor on OUTPUT side in the following order: OUTPUT 5 → 4 → 3 → 2 → 1, and outputs voltage waveform.
  • The voltage waveform of OUTPUT corresponding to the formed circuit is input into the interface on INPUT side if any (1 or more) switches are ON.
  • It reads this change of the voltage as the status signal of the combination switch.

    Courtesy of NISSAN NORTH AMERICA, INC.

Operation Example

In the following operation example, the combination of the status signals of the combination switch is replaced as follows: INPUT 1 - 5 to "1 - 5" and OUTPUT 1 - 5 to "A - E".

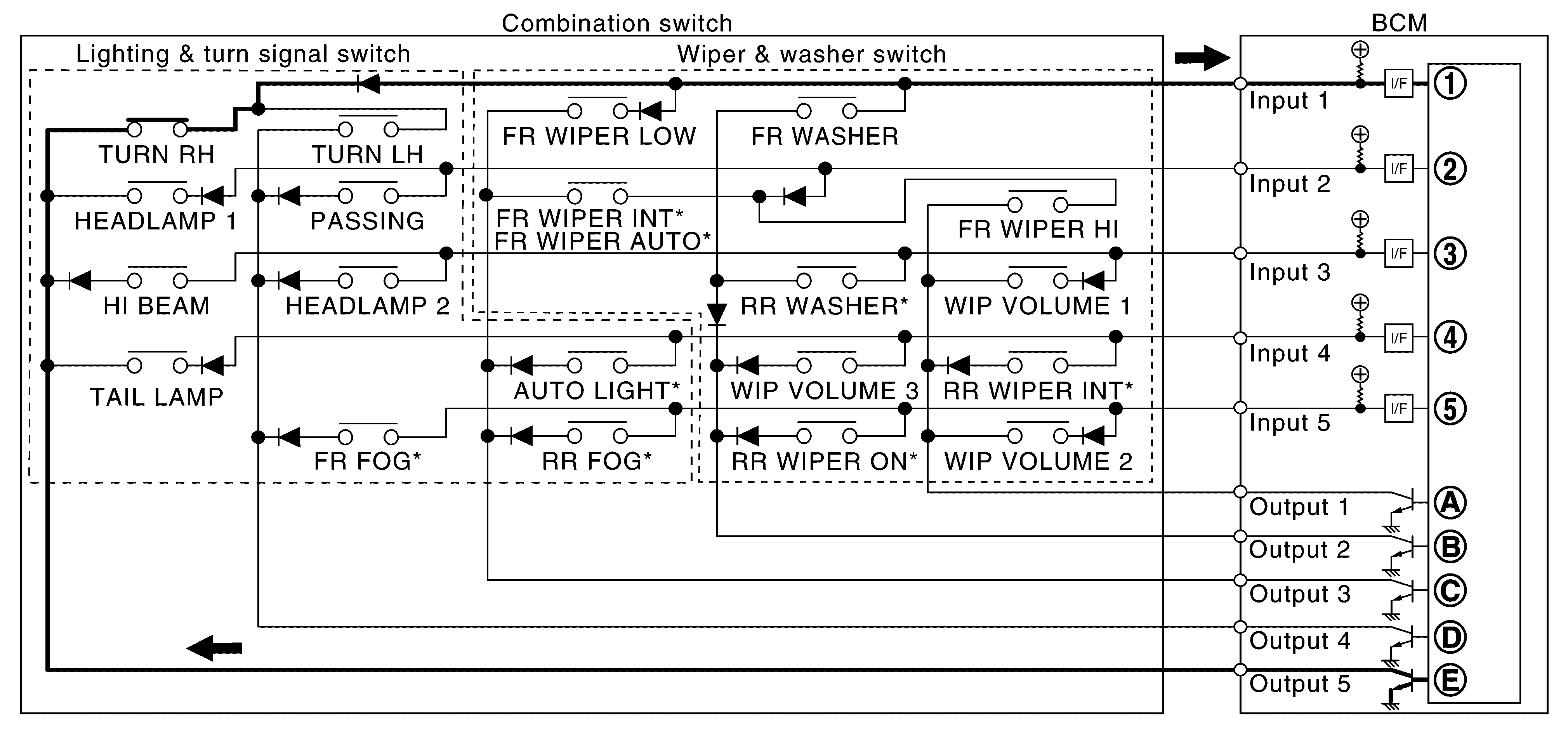

Example 1: When a switch (TURN RH switch) is turned ON

• The circuit between OUTPUT 4 and INPUT 5 is formed when the TAIL LAMP switch is turned ON.

  Courtesy of NISSAN NORTH AMERICA, INC.

  NOTE:

  • *: If so equipped.
  • TAIL LAMP switch links lighting switch 1ST and 2ND positions.
• BCM detects the combination switch status signal "1E" when the signal of OUTPUT 5 is input to INPUT 1.
• BCM judges that the TURN RH switch is ON when the signal "1E" is detected.

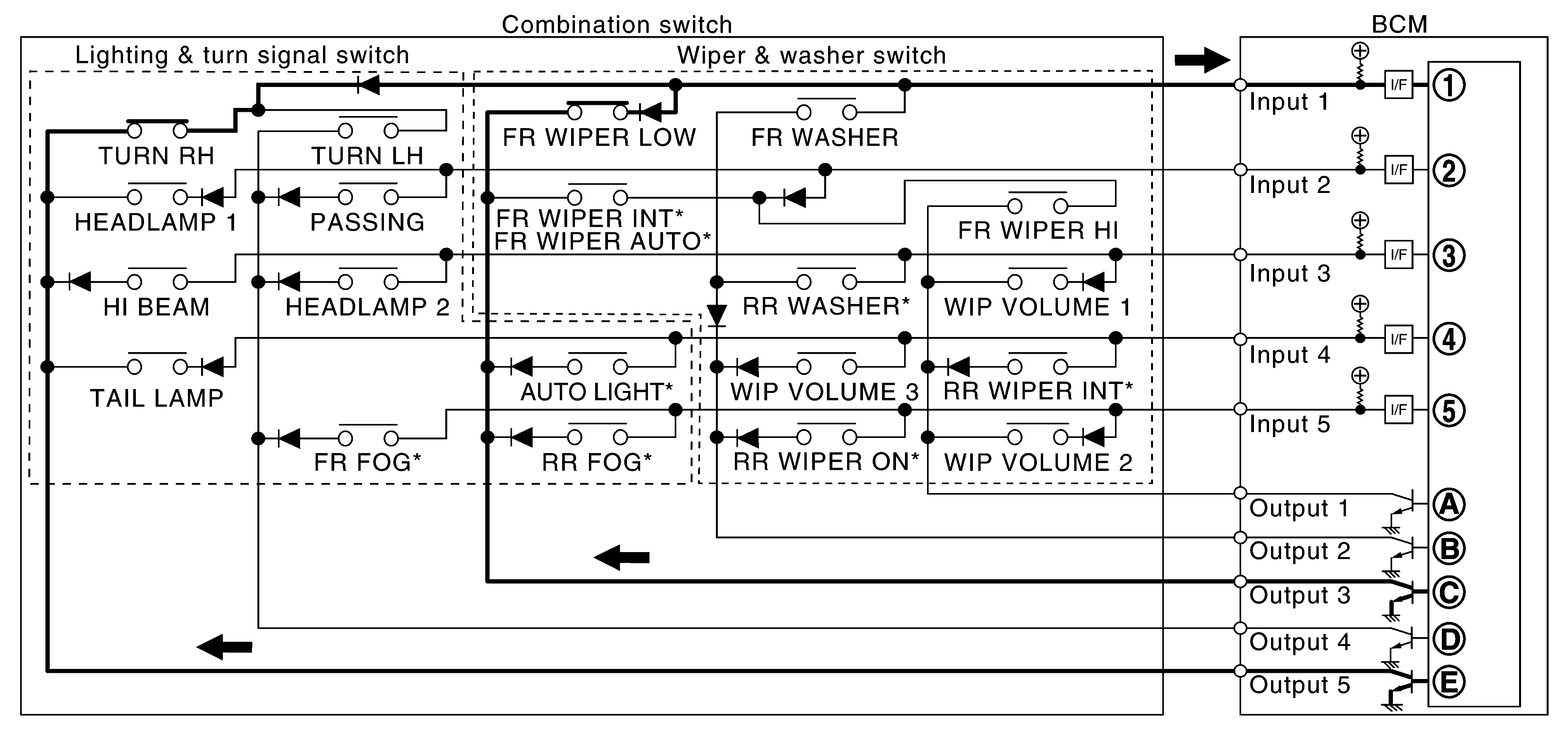

Example 2: When some switches (TURN RH switch, FR WIPER LOW switch) are turned ON

• The circuits between OUTPUT 5 and INPUT 1 and between OUTPUT 3 and INPUT 1 are formed when the TURN RH switch and FR WIPER LOW switch are turned ON.

  Courtesy of NISSAN NORTH AMERICA, INC.

  NOTE:

  • *: If so equipped.
  • TAIL LAMP switch links lighting switch 1ST and 2ND positions.
• BCM detects the combination switch status signal "1CE" when the signals of OUTPUT 3 and OUTPUT 5 are input to INPUT 1.
• BCM judges that the TURN RH switch and FR WIPER LOW switch are ON when the signal "1CE" is detected.

WIPER VOLUME DIAL POSITION

BCM judges the INT VOLUME 1 - 7 by the status of WIP VOLUME 1, 2 and 3 switches.

CONSULT data monitor		Switch status
Monitor item	Value/Status	WIP VOLUME 1	WIP VOLUME 2	WIP VOLUME 3
INT VOLUME	1	ON	ON	ON
	2	ON	ON	OFF
	3	ON	OFF	OFF
	4	OFF	OFF	OFF
	5	OFF	OFF	ON
	6	OFF	ON	ON
	7	OFF	ON	OFF
