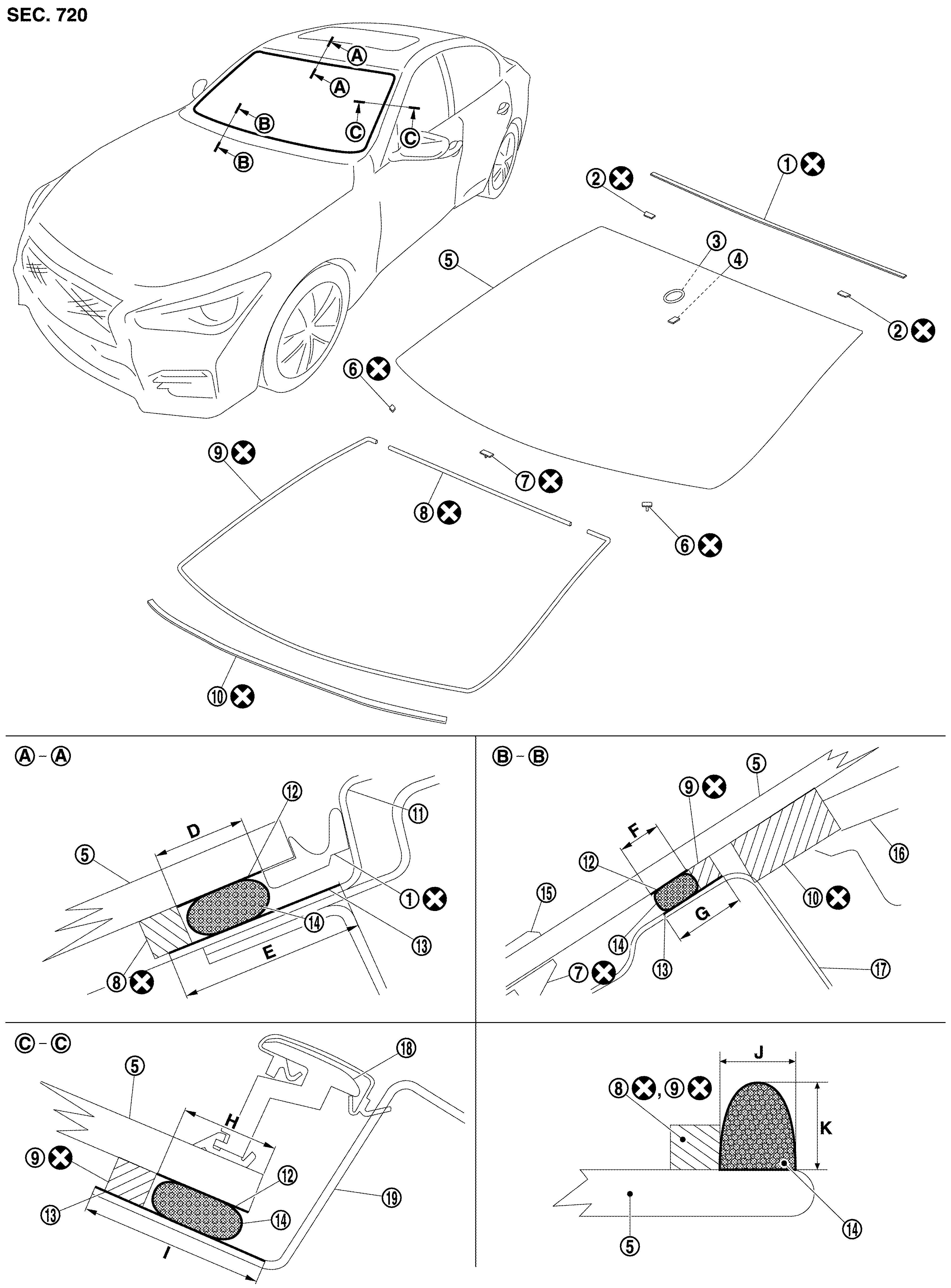

Exploded View

GNSDB147798Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Windshield glass upper molding SYMBOL Windshield glass upper spacer SYMBOL Rain sensor bracket*
SYMBOL Inside mirror base SYMBOL Windshield glass SYMBOL Windshield glass lower side spacer
SYMBOL Windshield glass lower center spacer SYMBOL Dam sealant rubber upper SYMBOL Dam sealant rubber lower
SYMBOL Windshield glass insulator SYMBOL Roof panel SYMBOL Glass primer
SYMBOL Body primer SYMBOL Adhesive SYMBOL Cowl top cover
SYMBOL Front speaker grille SYMBOL Dash upper panel SYMBOL Roof side molding
SYMBOL Body side outer panel
SYMBOL : Always replace after every disassembly.

*: With rain sensor

Unit: mm (in)

Portion Primer range Adhesive range
J K
Windshield glass - Roof panel SYMBOL -SYMBOL D 12.0
(0.472)		 7.0
(0.276)		 12.0
(0.472)
E 20.0
(0.787)		 - -
Windshield glass - Dash upper panel SYMBOL -SYMBOL F 10.5
(0.413)		 7.0
(0.276)		 12.0
(0.472)
G 17.0
(0.669)		 - -
Windshield glass - Body side outer panel SYMBOL -SYMBOL H 11.0
(0.433)		 7.0
(0.276)		 12.0
(0.472)
I 19.0
(0.748)		 - -
