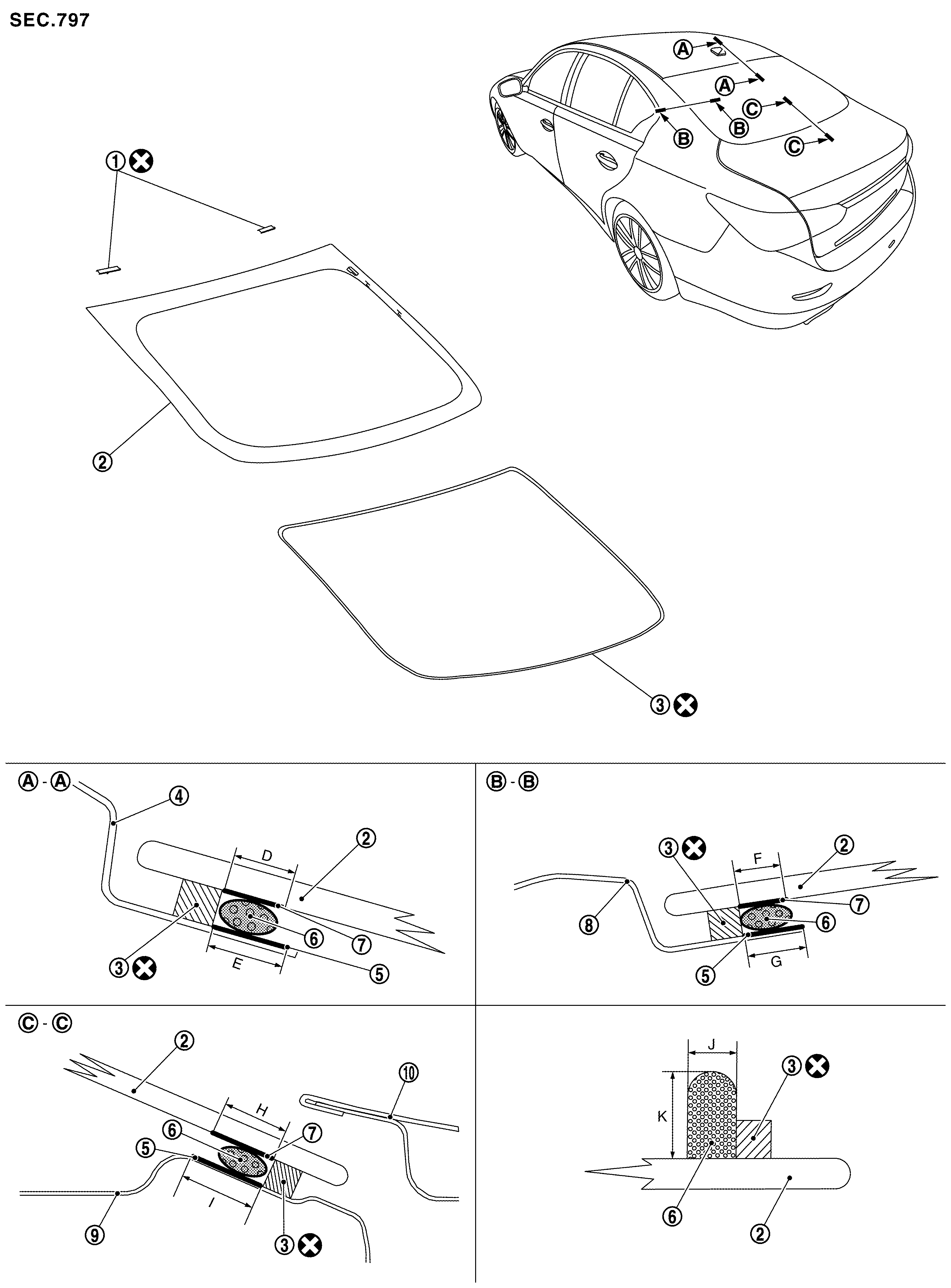

Exploded View
| Rear window glass spacer | Rear window glass | Dam sealant rubber | |||
| Roof panel | Body primer | Adhesive | |||
| Glass primer | Body side outer panel | Waist rear | |||
| Trunk lid | |||||
| : Always replace after every disassembly. | |||||
Unit: mm (in)
| Portion | Primer range | Adhesive range | |||
|---|---|---|---|---|---|
| J | K | ||||
| Rear window glass - Roof panel | D | 8.0 (0.315) |
7.0 (0.276) |
12.0 (0.472) |
|
| E | 10.0 - 15.0 (0.394 - 0.591) |
- | - | ||
| Rear window glass - Body side outer panel | F | 8.0 (0.315) |
7.0 (0.276) |
12.0 (0.472) |
|
| G | 10.0 - 15.0 (0.394 - 0.591) |
- | - | ||
| Rear window glass - Waist rear | H | 8.0 (0.315) |
7.0 (0.276) |
12.0 (0.472) |
|
| I | 10.0 - 15.0 (0.394 - 0.591) |
- | - | ||
