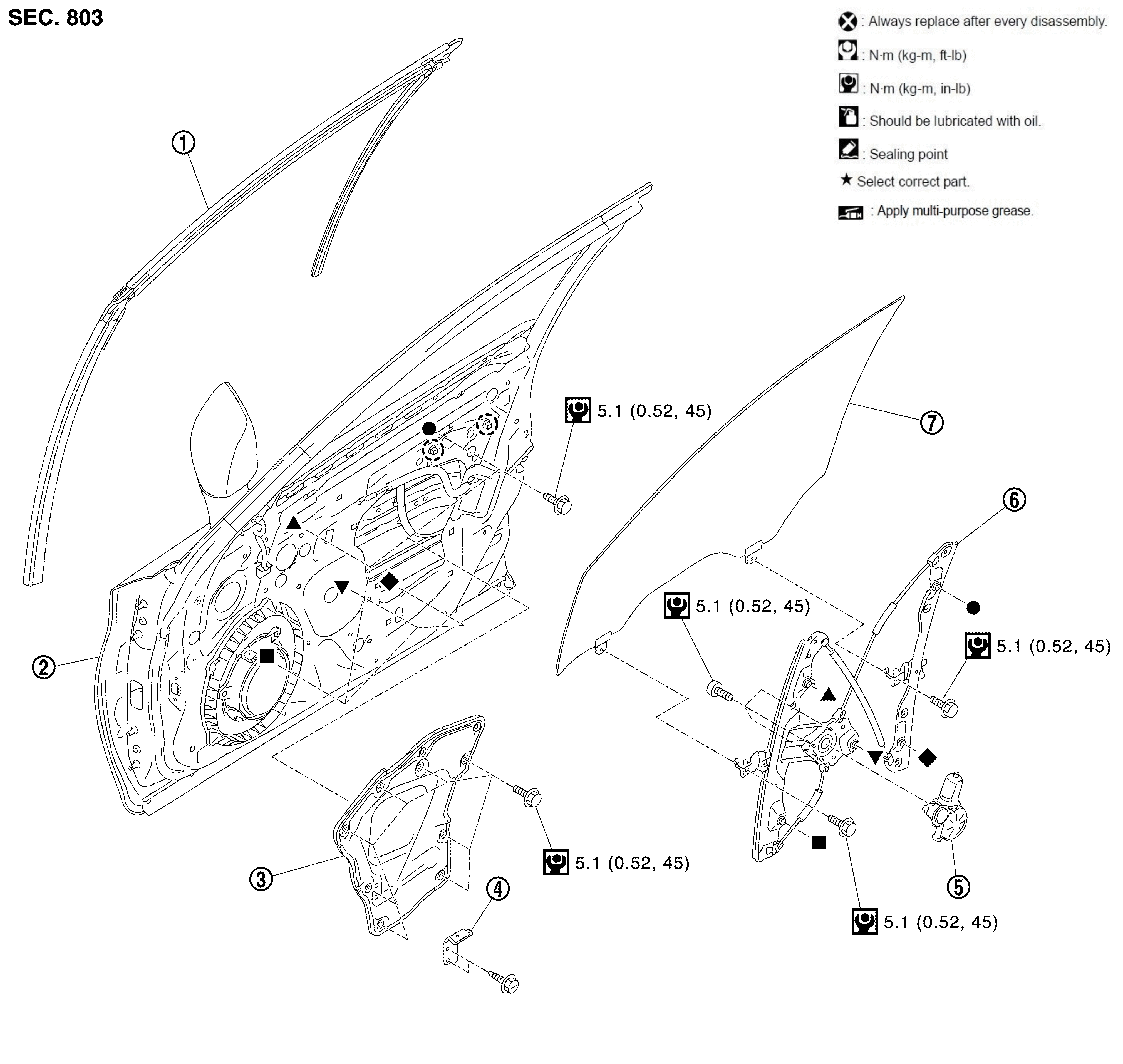

Exploded View

GNSDB148525Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Front door glass run SYMBOL Front door panel SYMBOL Front door inner frame
SYMBOL Front door pull handle bracket SYMBOL Front door power window motor SYMBOL Front door regulator
SYMBOL Front door glass
SYMBOL : Clip
SYMBOL : N.m (kg-m, in-lb)
SYMBOL , SYMBOLSYMBOLSYMBOL
SYMBOL : Indicates that the part is connected at points with same symbol in actual vehicle.
