Vehicle Security System
>>

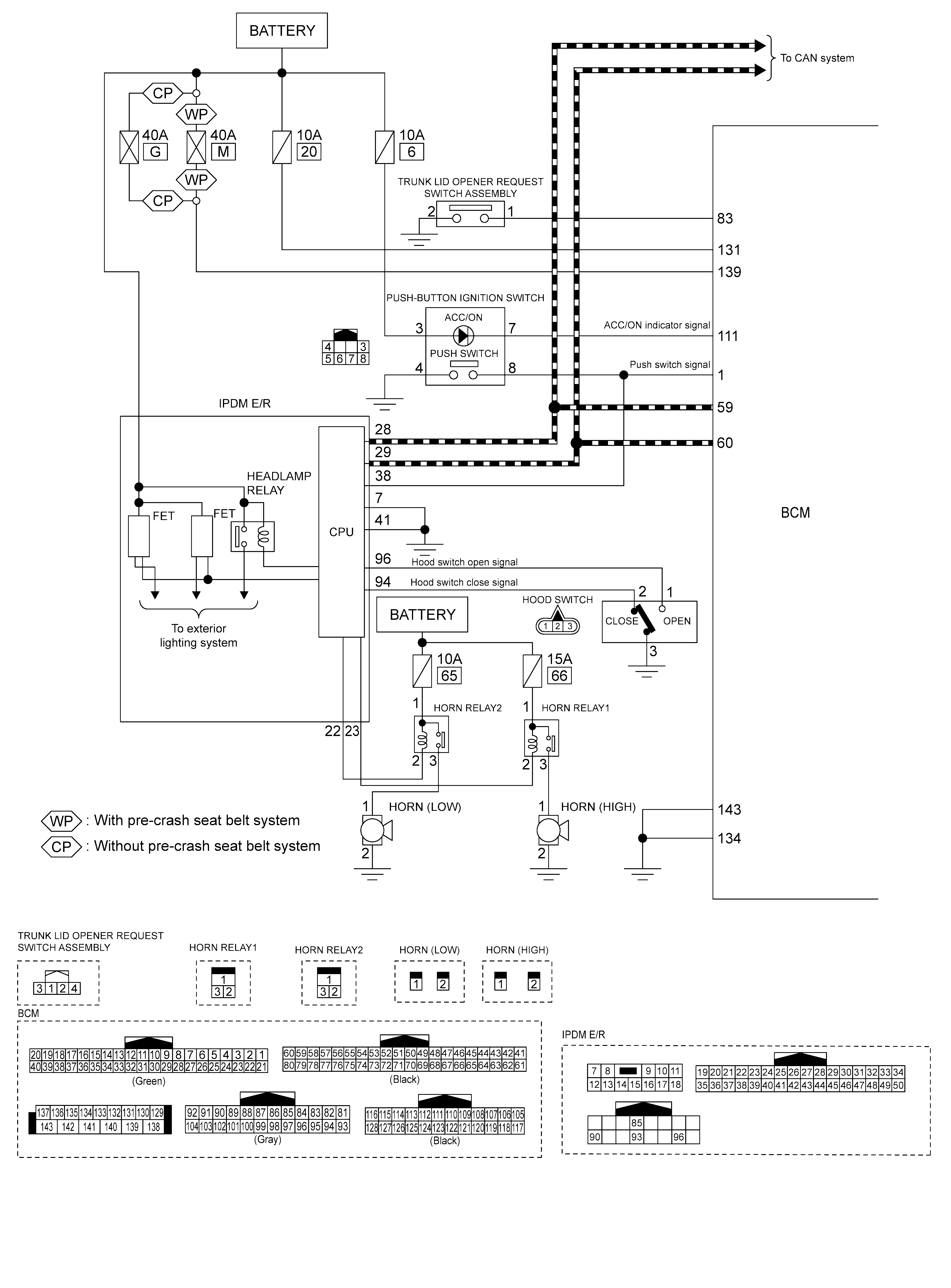

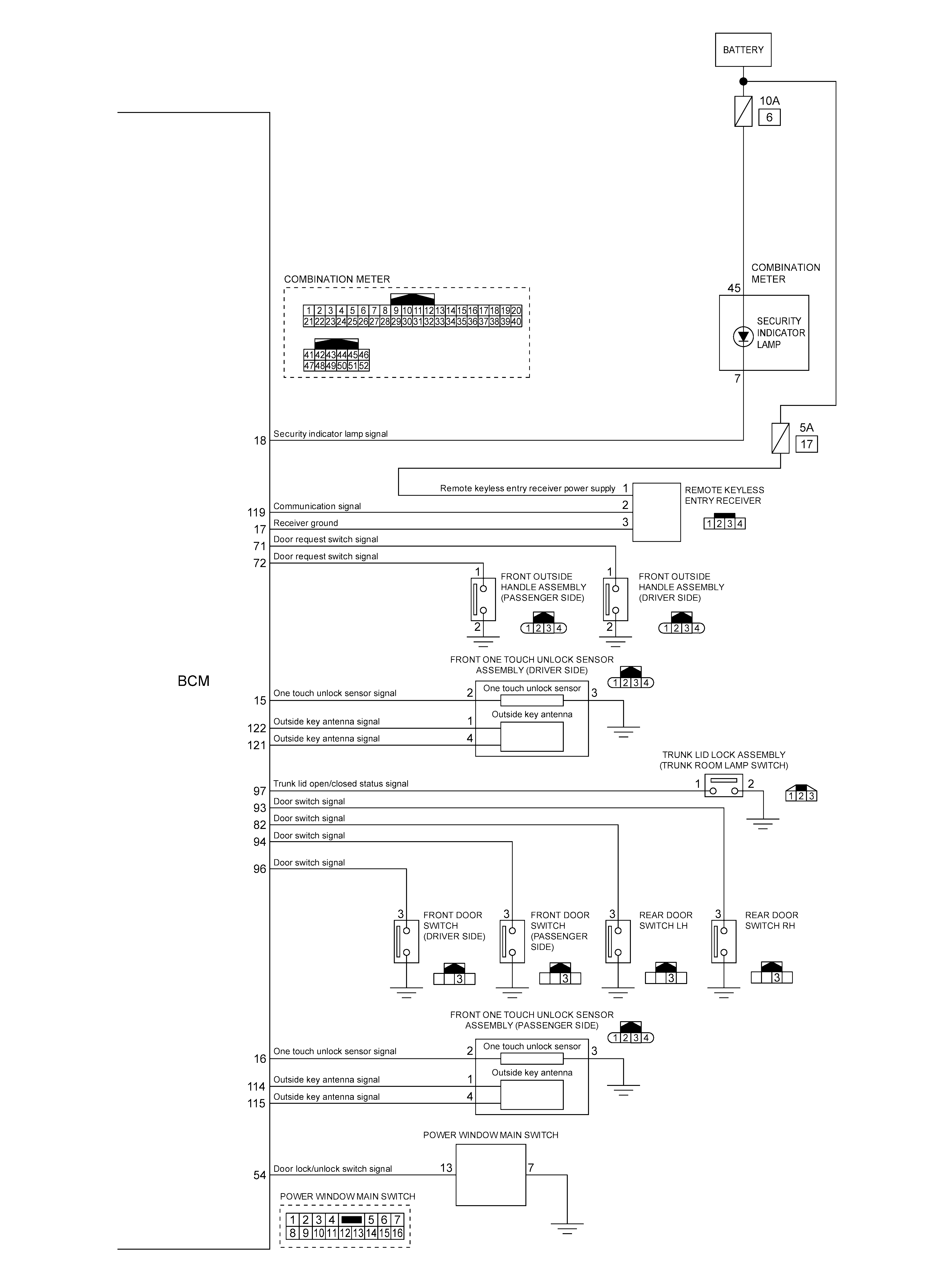

Circuit Diagram
Circuit Diagram
FOR VR30DDTT ENGINE MODELS
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
