IGNITION TIMING : Periodic Maintenance

  1. CHECK IGNITION TIMING

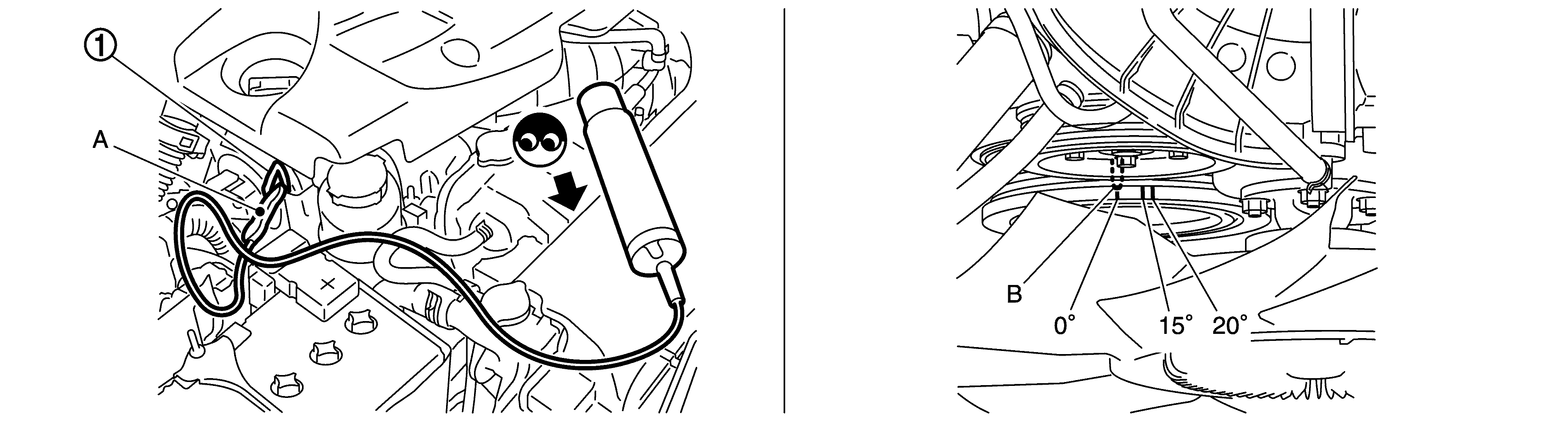

    1. Attach timing light to loop wire as shown.
      GNSDB21759Courtesy of NISSAN NORTH AMERICA, INC.

      1.

      Loop wire

      A.

      Timing light

      B.

      Timing indicator
    2. Check ignition timing.

    INSPECTION END
