Work Procedure

Perform action test to verify the customer's concern.
Perform action test and check the system operation after system diagnosis.

Warning:

WARNING: Be careful of traffic conditions and safety around the vehicle when performing road test.

CAUTION:

Fully understand the following items well before the road test;
- System description: System Description
- Handling precaution: Handling Precaution

CHECK LDW SYSTEM SETTING
1. 1. Start the engine.
  2. Check that the LDW system setting can be enabled/disabled on the information display.
  3. Turn OFF the ignition switch and wait for 30 seconds or more.
  4. Check that the previous setting is saved when the engine starts again.
>>

GO TO 2.

ACTION TEST FOR LDW

Enable the setting of the LDW system on the information display.
Turn LDW system ON.

Check the LDW operation according to the following table.

7 inch Information Display

Condition				Action	Display on information display	Steering vibration

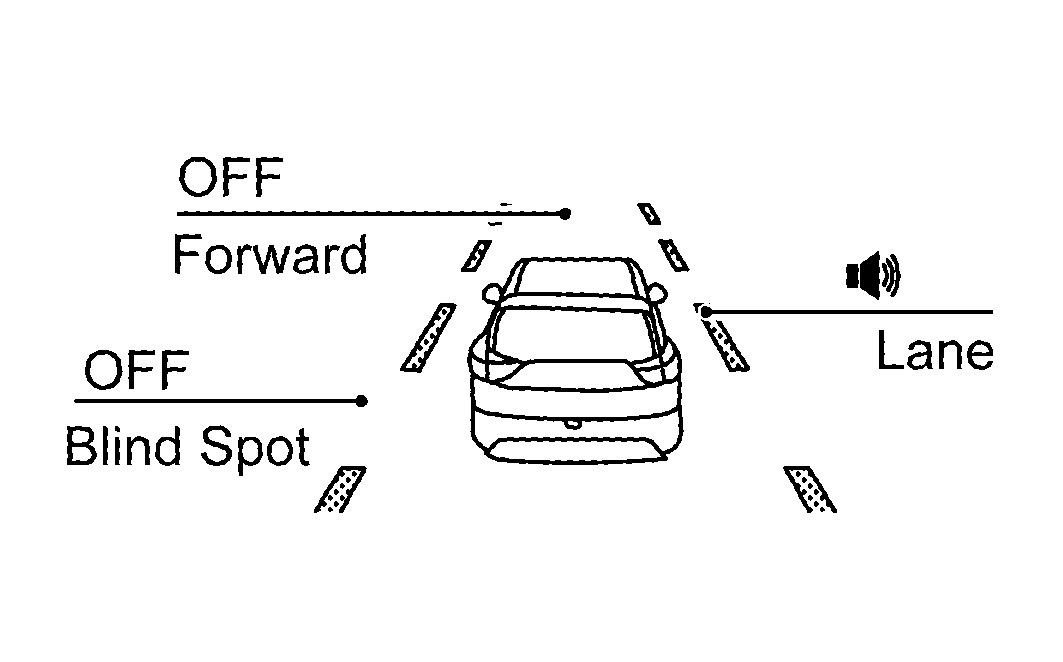

LDW OFF				-	Courtesy of NISSAN	OFF

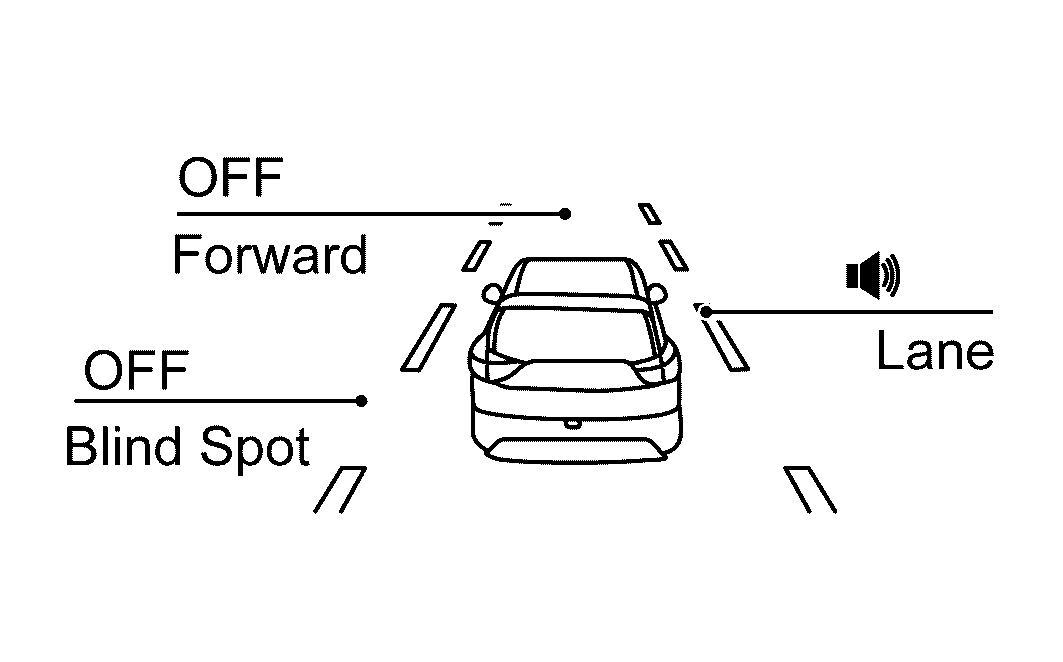

LDW ON	Vehicle speed is less than approx. 60 km/h (37 MPH)			-	LDW system indicator : White. Speaker icon : White Courtesy of NISSAN	OFF
	Vehicle speed is approx. 60 km/h (37 MPH) or more	Vehicle closes to lane marker	Turn signal is OFF or ON (Opposite to the deviate side)	-	Yellow (Blink) Courtesy of NISSAN	ON
			Turn signal is OFF or ON (Opposite to the deviate side)	-	LDW system indicator : Yellow (Blink) Speaker icon : White Courtesy of NISSAN	ON
			Turn signal is ON (Deviate side)	-	LDW system indicator : White. Speaker icon : White Courtesy of NISSAN	OFF

FULL TFT METER

Condition				Action	Display on information display	Steering vibration
LDW OFF				-	Courtesy of NISSAN	OFF
LDW ON	Vehicle speed is less than approx. 60 km/h (37 MPH)			-	LDW system indicator : White. Speaker icon : White Courtesy of NISSAN	OFF
	Vehicle speed is approx. 60 km/h (37 MPH) or more	Vehicle closes to lane marker	Turn signal is OFF or ON (Opposite to the deviate side)	-	Yellow (Blink) Courtesy of NISSAN	ON
			Turn signal is OFF or ON (Opposite to the deviate side)	-	LDW system indicator : Yellow (Blink) Speaker icon : White Courtesy of NISSAN	ON
			Turn signal is ON (Deviate side)	-	LDW system indicator : White. Speaker icon : White Courtesy of NISSAN	OFF

NOTE:

After the operating conditions of warning are satisfied, the warning continues until the vehicle speed reaches approximately 55 km/h (34 MPH). Refer to System Description .

INSPECTION END
