Rear Cargo Power Socket

REMOVAL

  1. Partially remove the luggage side lower finisher (LH). Refer to Removal and Installation .
  2. Disconnect harness connector from rear cargo socket.
  3. Remove rear cargo power socket.

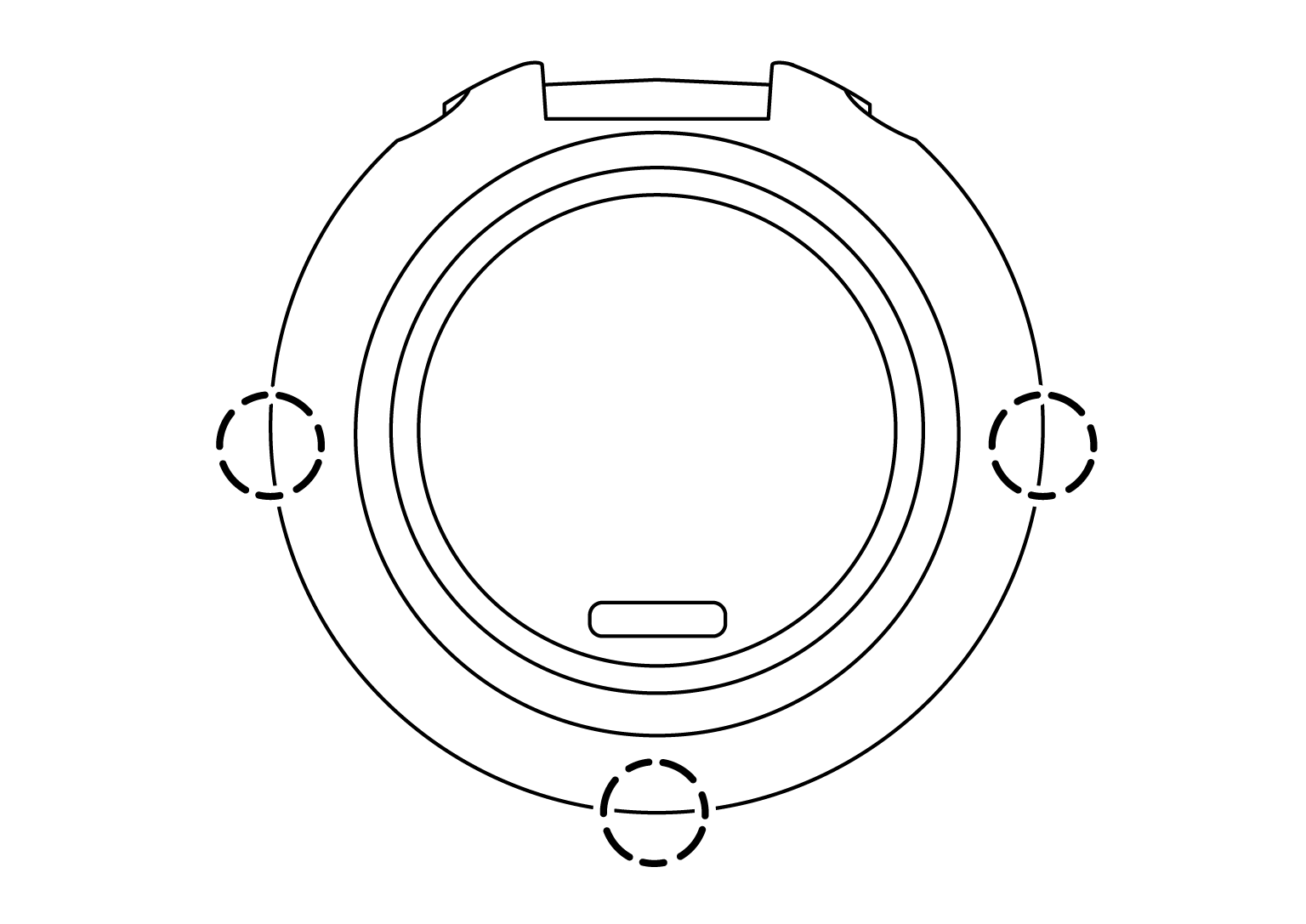

    GNSDB45464Courtesy of NISSAN
    SYMBOL : Pawl

INSTALLATION

Installation is in the reverse order of removal.
