Exploded View

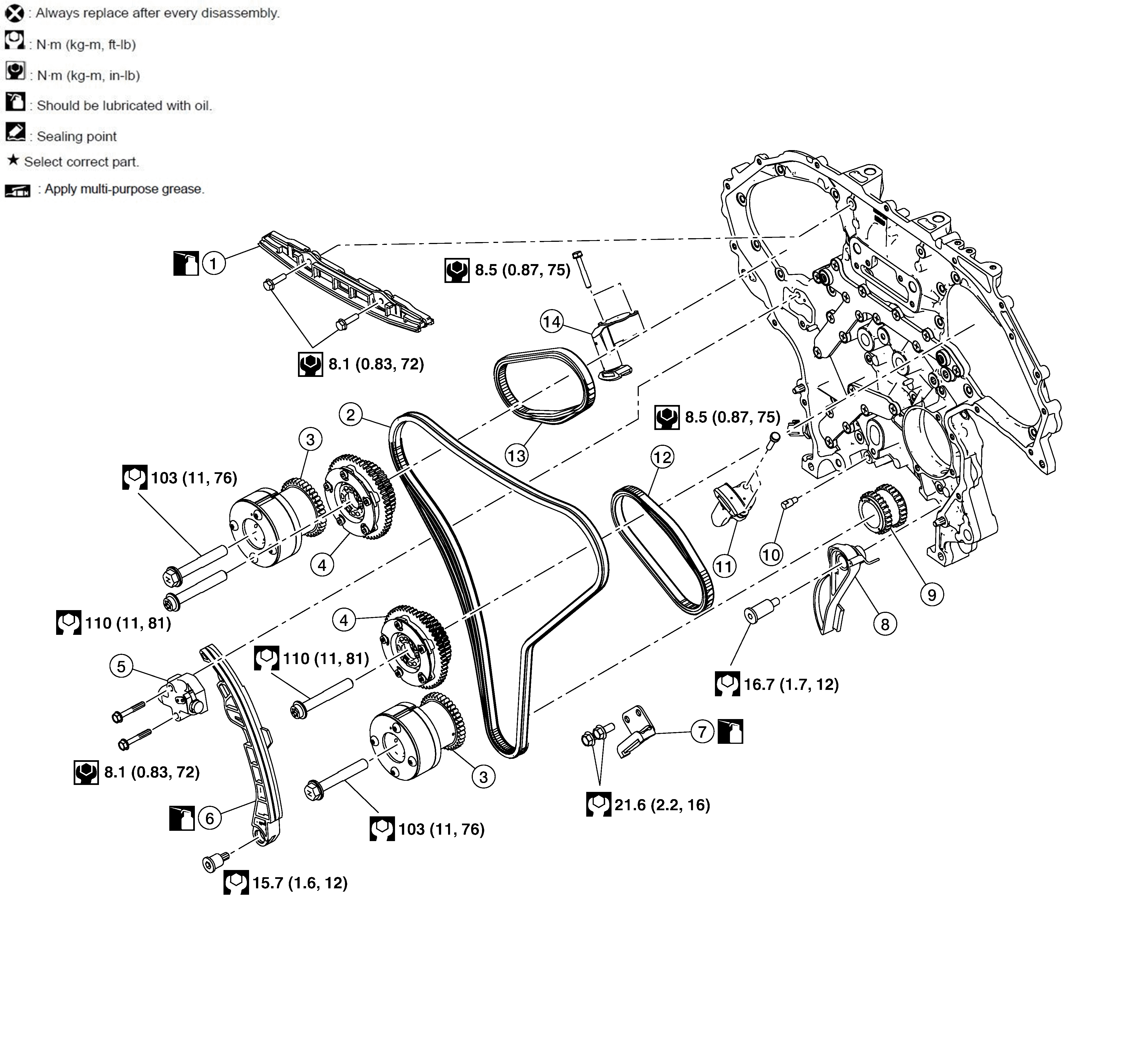

Fig 1: Timing Chain With Torque Specifications

Courtesy of NISSAN

1.	Internal chain guide	2.	Timing chain (primary)	3.	Camshaft sprocket (EXH)
4.	Camshaft sprocket (INT)	5.	Timing chain tensioner (primary)	6.	Slack guide
7.	Tension guide	8.	Oil pump drive chain tensioner	9.	Crankshaft sprocket
10.	Timing chain oil jet	11.	Timing chain tensioner [secondary (bank 2) ]	12.	Timing chain [secondary (bank 2) ]
13.	Timing chain [secondary (bank 1) ]	14.	Timing chain tensioner [secondary (bank 1) ]
