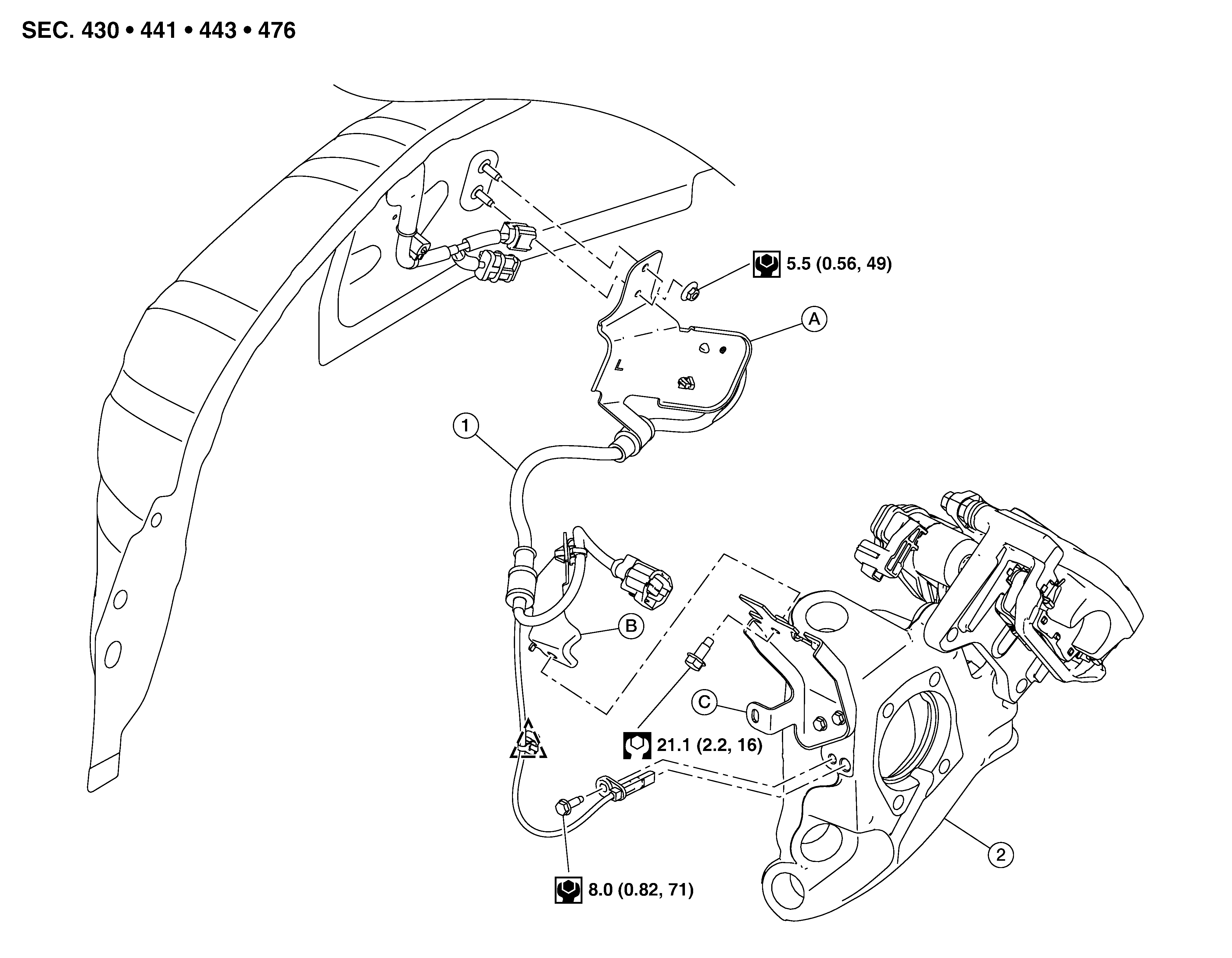

Exploded View
Exploded View
Courtesy of NISSAN
1.
Rear wheel sensor
2.
Rear knuckle
A.
Upper bracket
B.
Middle bracket
C.
Lower bracket
Clip
Courtesy of NISSAN
