Removal and Installation

REMOVAL

CAUTION:

If replacing chassis control module, Perform "ADDITIONAL SERVICE WHEN REPLACING CHASSIS CONTROL MODULE." Refer to Description .

Remove the instrument panel assembly. Refer to Removal and Installation .
Release hose clip. : Clip

Courtesy of NISSAN

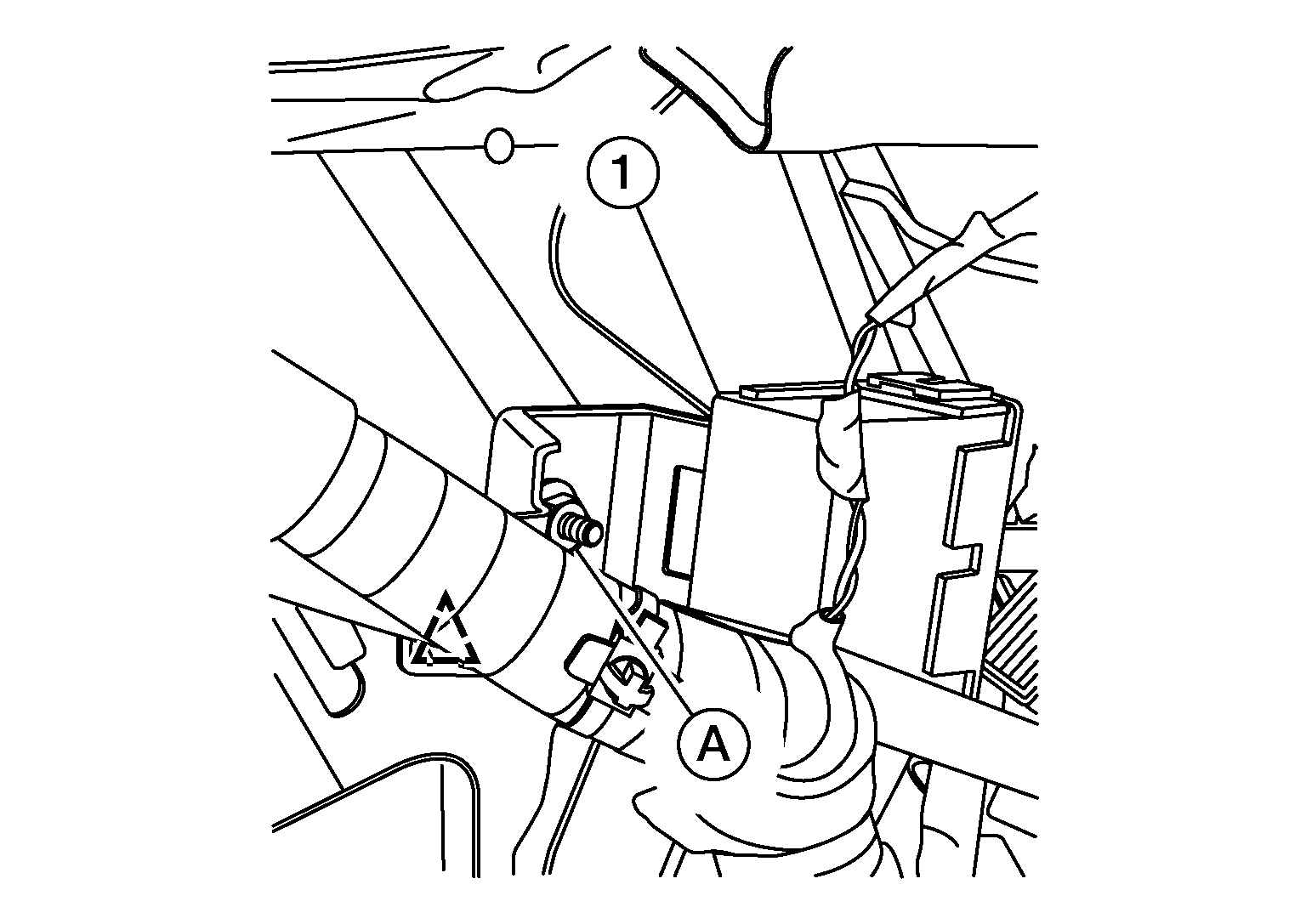

Remove nut (A) from chassis control module (1).
Disconnect harness connector and remove chassis control module.
CAUTION:
Do not drop the chassis control module.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

If replacing chassis control module, perform "ADDITIONAL SERVICE WHEN REPLACING CHASSIS CONTROL MODULE." Refer to Description .
