Exploded View

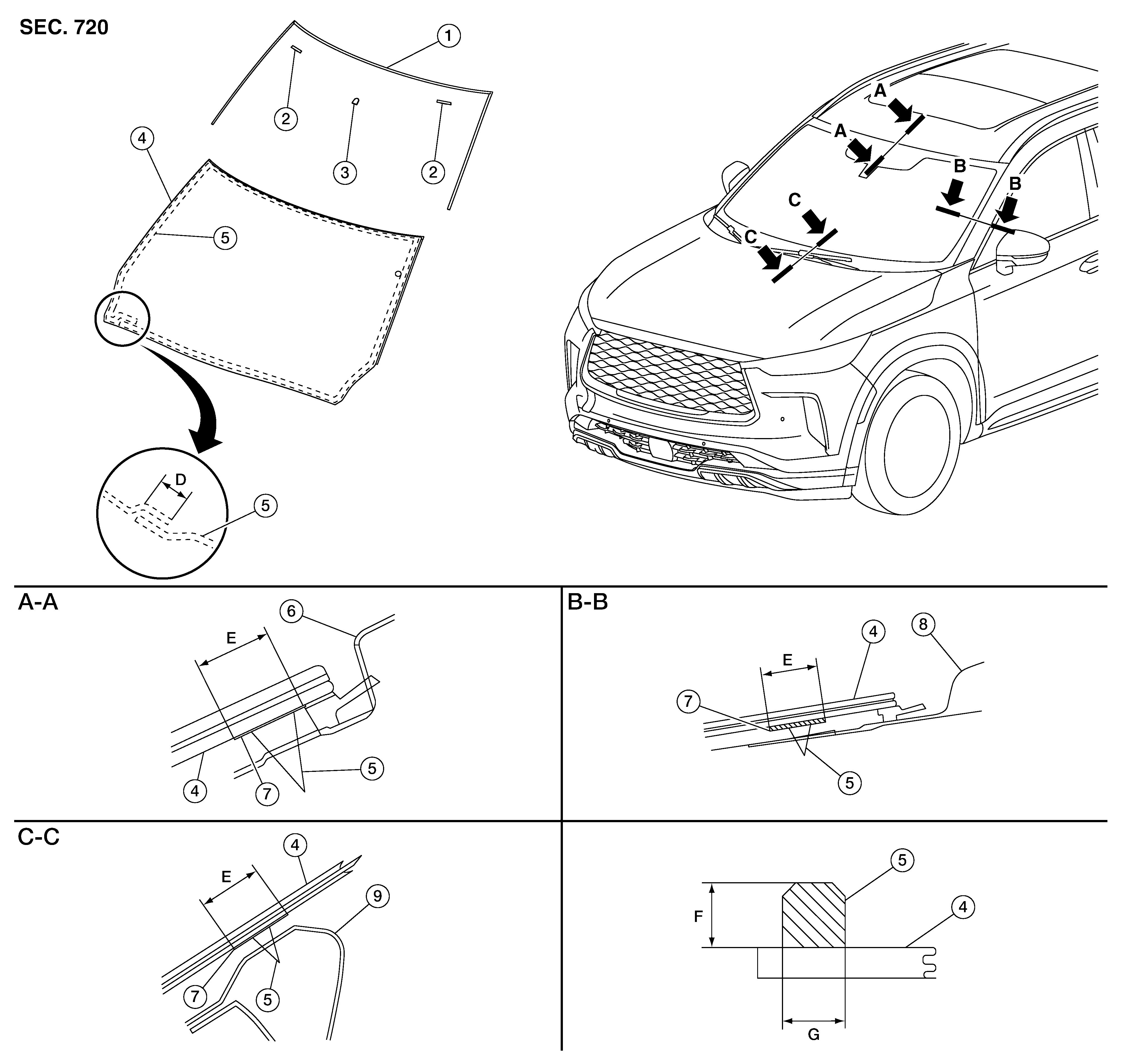

GNSDB57873Courtesy of NISSAN
1. Windshield glass molding 2. Spacer 3. Mirror base
4. Windshield glass 5. Adhesive 6. Roof
7. Glass primer 8. Body side outer 9. Cowl top
D. 30 mm (1.18 in) E. 16 mm (0.63 in) F. 12 mm (0.47 in)
G. 7 mm (0.28 in)
