Back Door Window Glass
>>

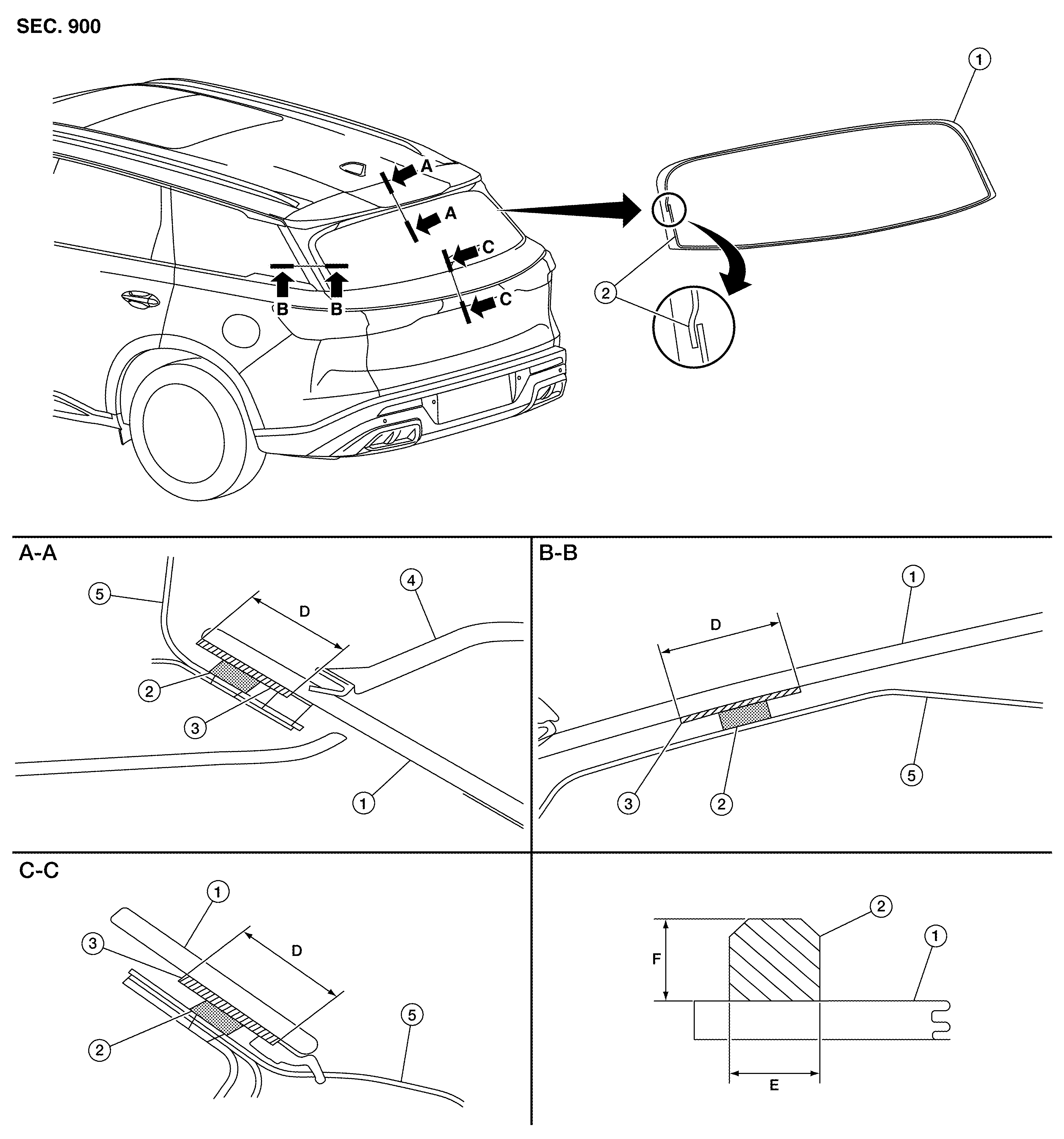

Exploded View
Exploded View
Courtesy of NISSAN
1.
Back door glass
2.
Adhesive
3.
Primer
4.
Rear spoiler
5.
Body side outer
D.
15 mm (0.59 in)
E.
7 mm (0.28 in)
F.
12 mm (0.47 in)
Courtesy of NISSAN
