Removal and Installation

REMOVAL

1. Remove shift selector finisher. Refer to Exploded View .

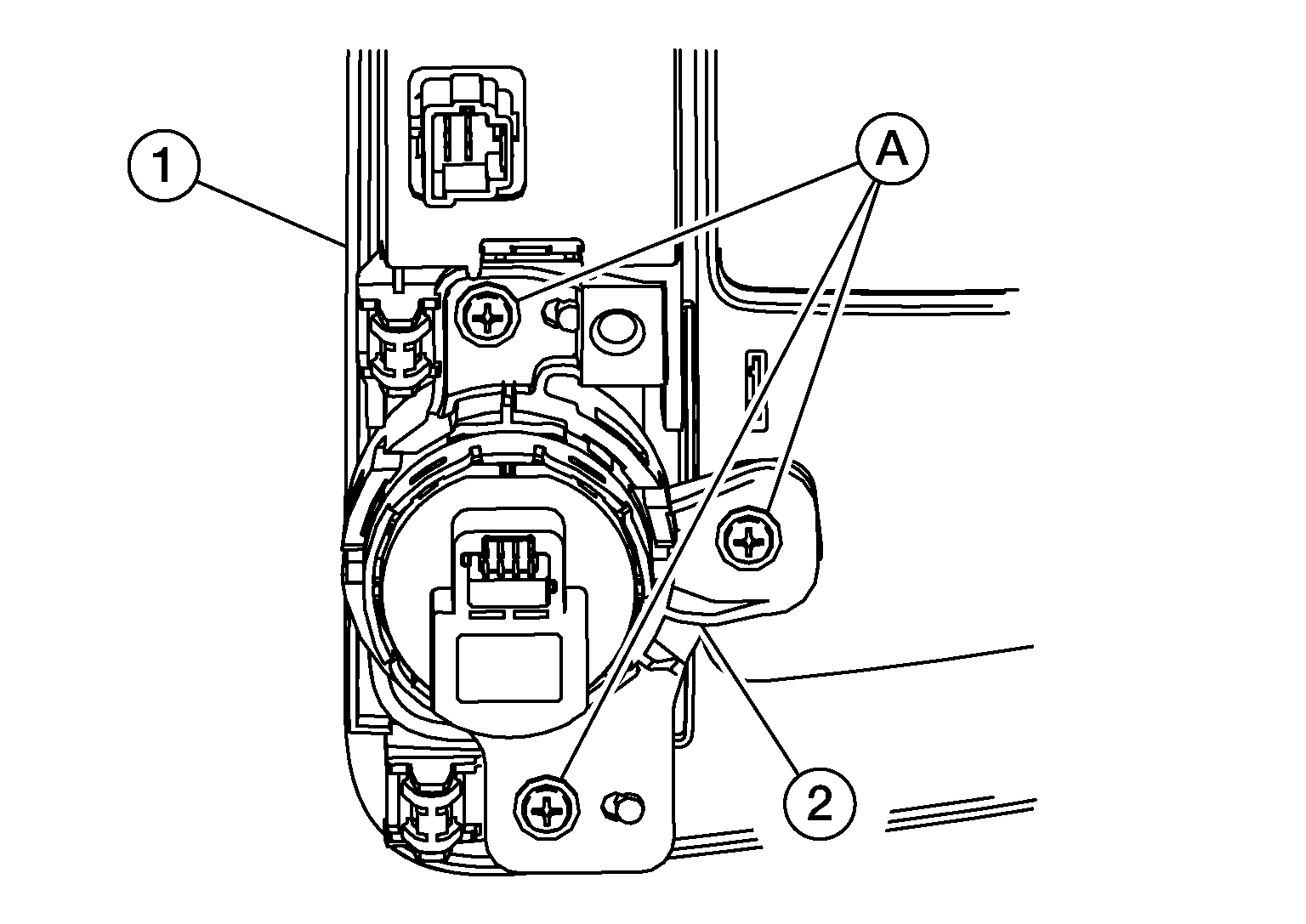

2. Remove screws (A), then remove push-button ignition switch bracket (2) from the shift selector finisher (1).

   Courtesy of NISSAN

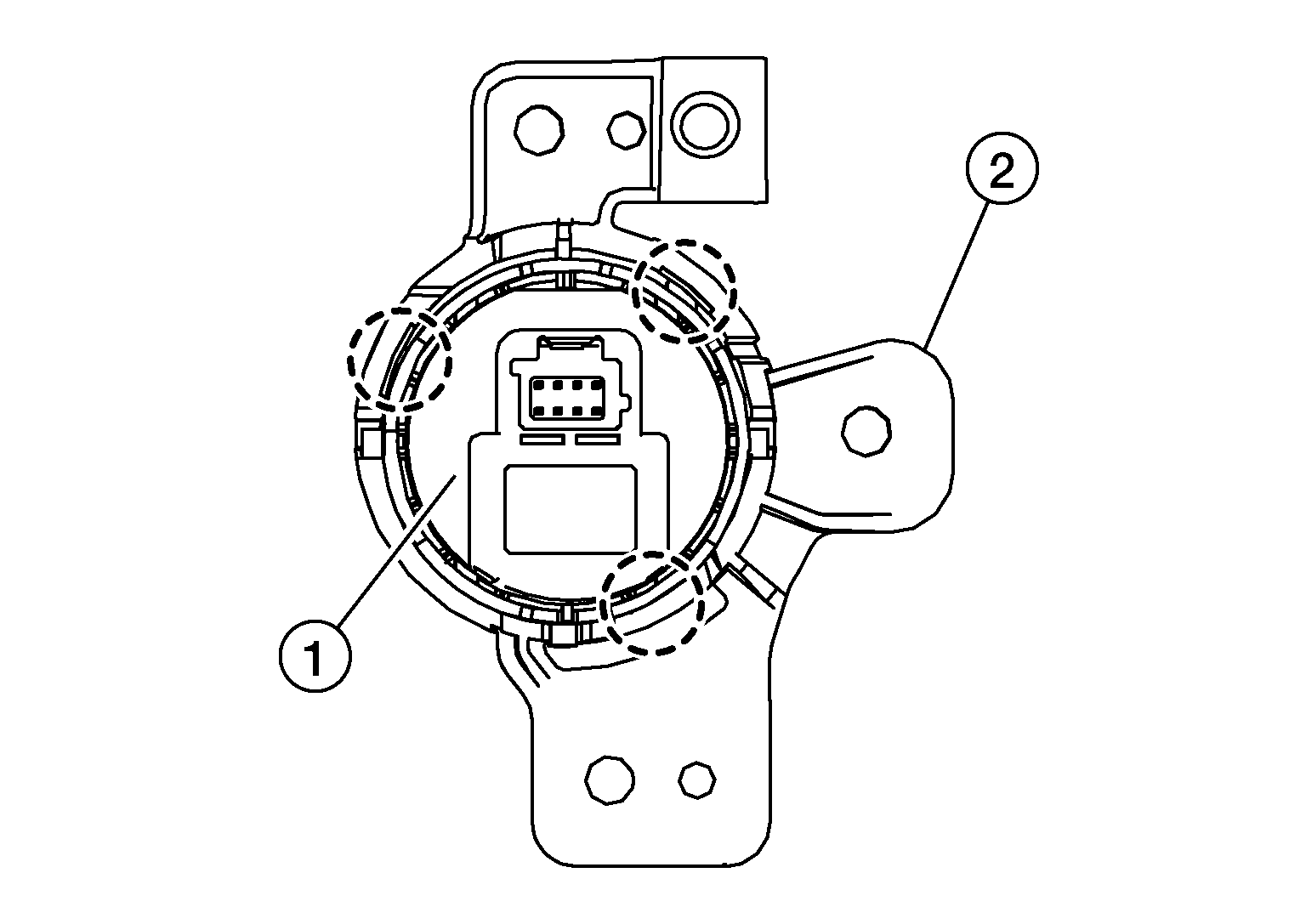

3. Using a suitable tool, release pawls and remove the push-button ignition switch (1) from push-button ignition switch bracket (2).

   Courtesy of NISSAN

   : Pawl

INSTALLATION

Installation is in the reverse order of removal.
