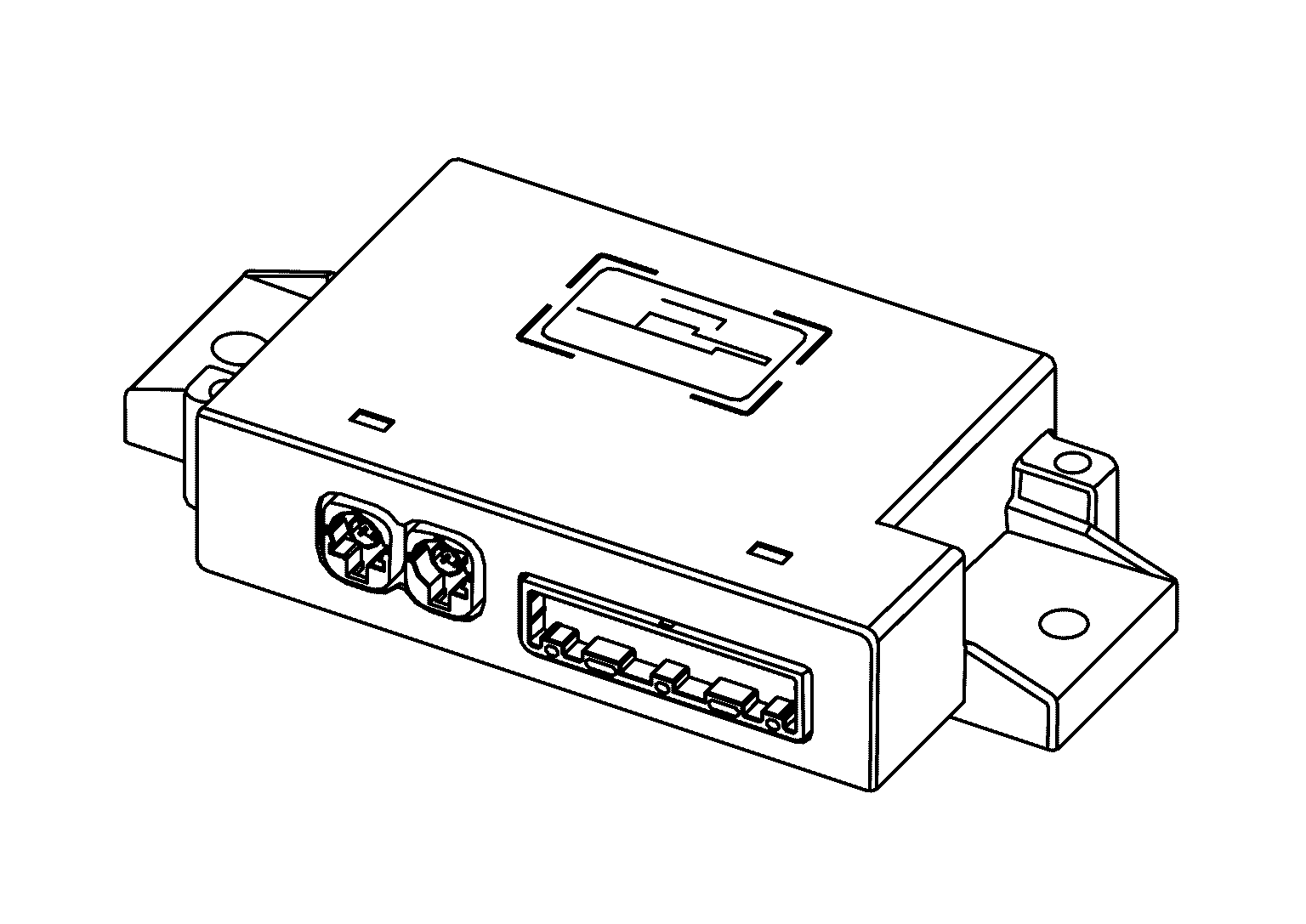

ADAS Control Unit 2

FUNCTIONS WITHIN THE SYSTEM

• ADAS control unit 2 controls the following systems, based on CAN communication signal from each control unit.

  Courtesy of NISSAN

  • FEB
  • RAB
  • ProPILOT Assist
  • PFCW
  • LDW
  • LDP
  • Blind Spot Intervention
  • DAA

INDIVIDUAL FUNCTIONS WITHIN THE SYSTEM

• Transmits the signals to each control unit via CAN communication.
• Receives the signals from each control unit via CAN communication

INDIVIDUAL OPERATION

• FEB: Refer to System Description .
• RAB: Refer to System Description .
• ProPILOT Assist: Refer to System Description .
• PFCW: Refer to System Description .
• LDW: Refer to System Description .
• LDP: Refer to System Description .
• Blind Spot Intervention: Refer to System Description .
• DAA: Refer to System Description .

PARTS LOCATION

Refer to Component Location .
