Individual Operation

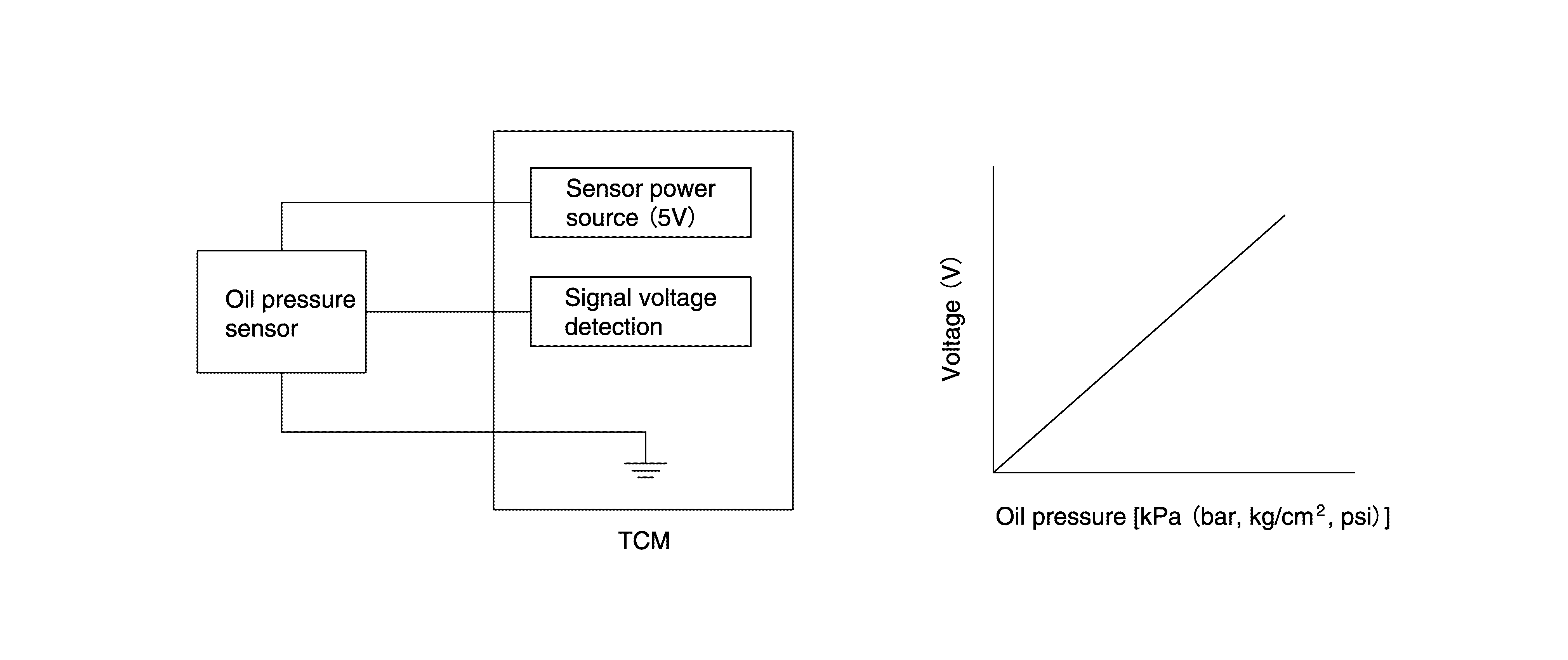

When pressure is applied to the ceramic device in the secondary pressure sensor, the ceramic device is deformed, resulting in voltage change.

TCM evaluates the secondary pressure based on the voltage change.

Voltage is increased along with pressure increase.

Courtesy of NISSAN NORTH AMERICA, INC.
