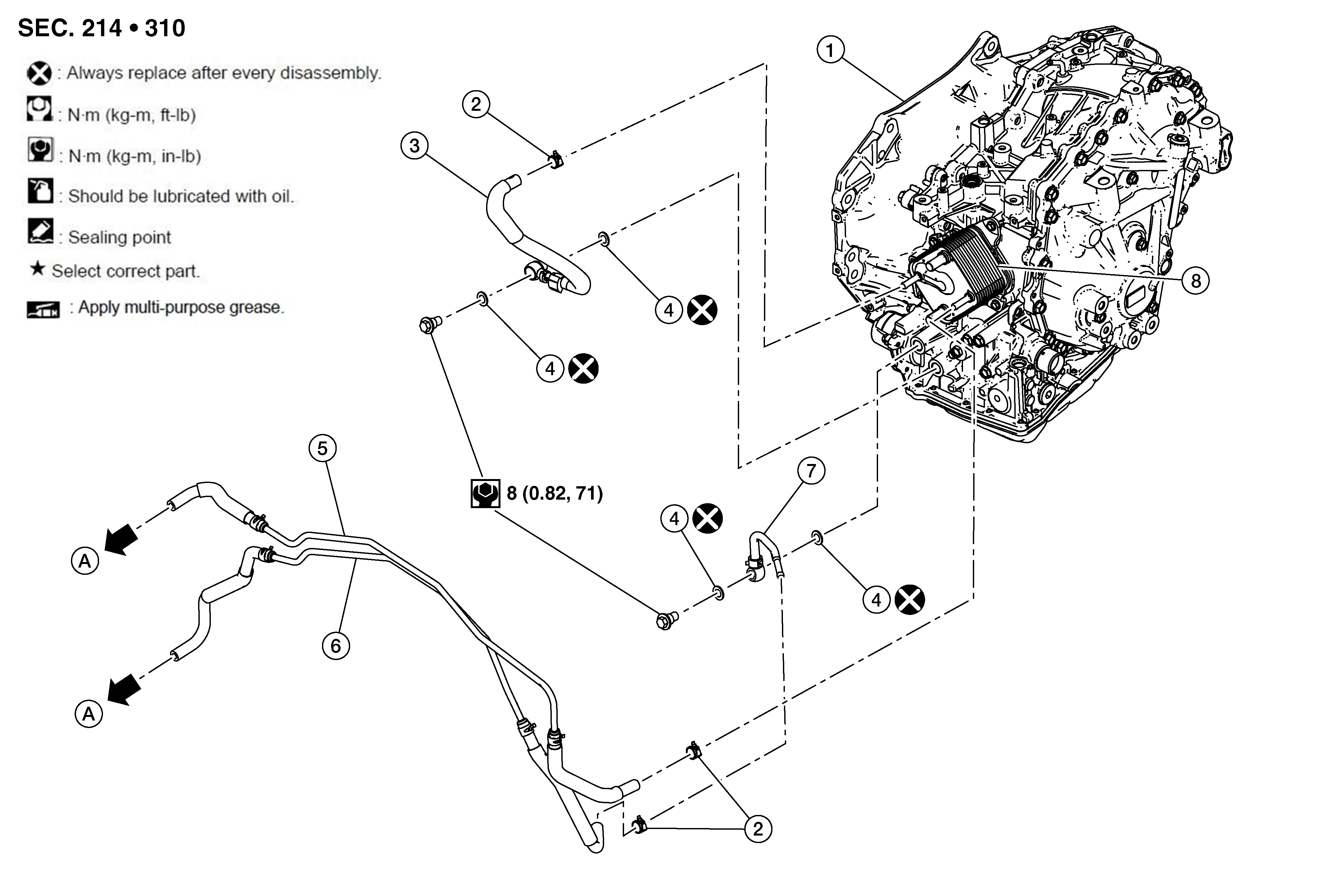

Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Transaxle assembly
|
2.
|
Hose clamp
|
3.
|
CVT fluid cooler hose A
|
|
4.
|
Copper sealing washer
|
5.
|
CVT fluid cooler hose C
|
6.
|
CVT fluid cooler hose D
|
|
7.
|
CVT fluid cooler hose B
|
8.
|
CVT fluid warmer
|
A.
|
To radiator
|
