Exploded View

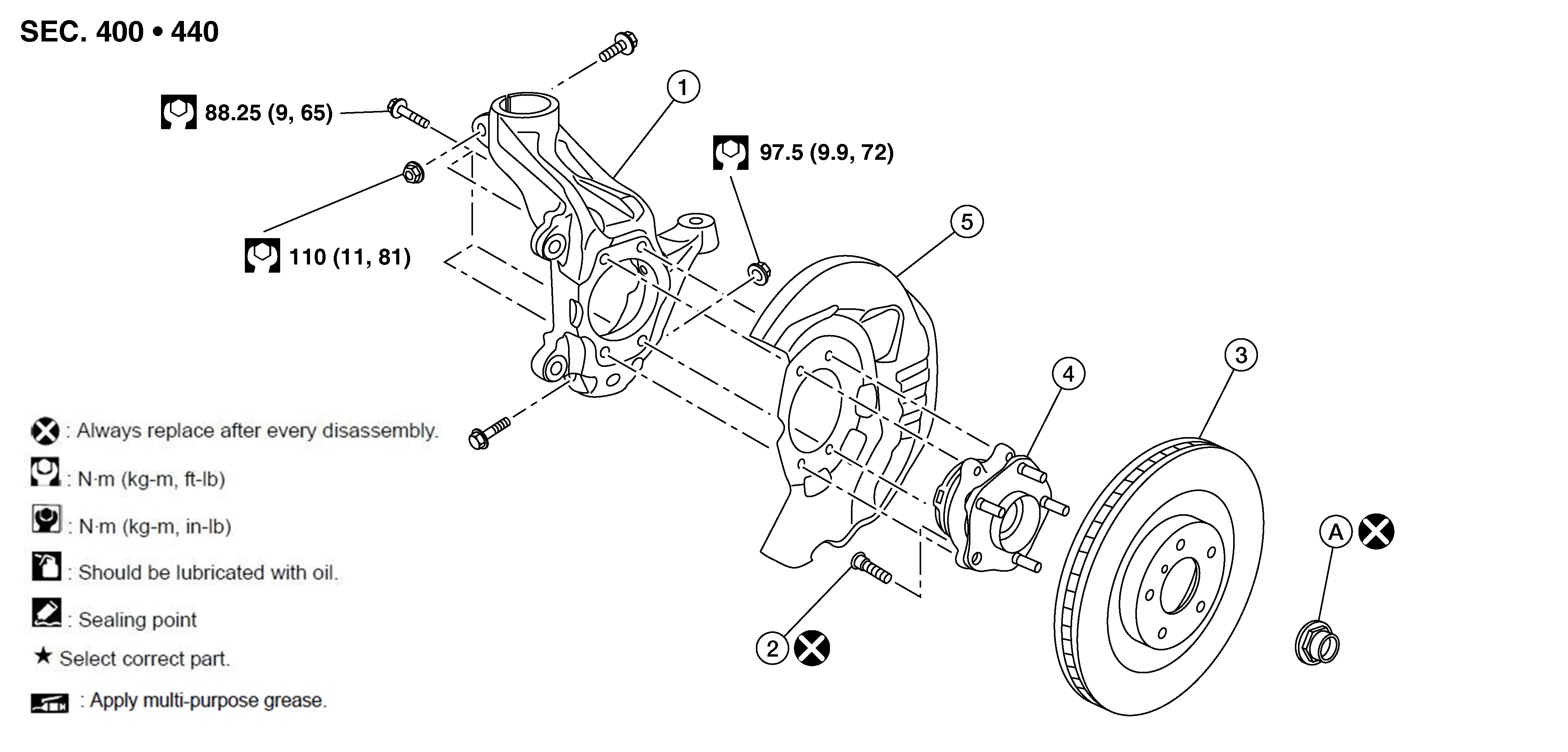

Fig 1: Steering Knuckle With Torque Specifications
GNSDB38592Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering knuckle

2.

Wheel stud

3.

Front disc brake rotor

4.

Wheel hub and bearing

5.

Splash guard

A.

Refer to Removal and Installation .
