Exploded View

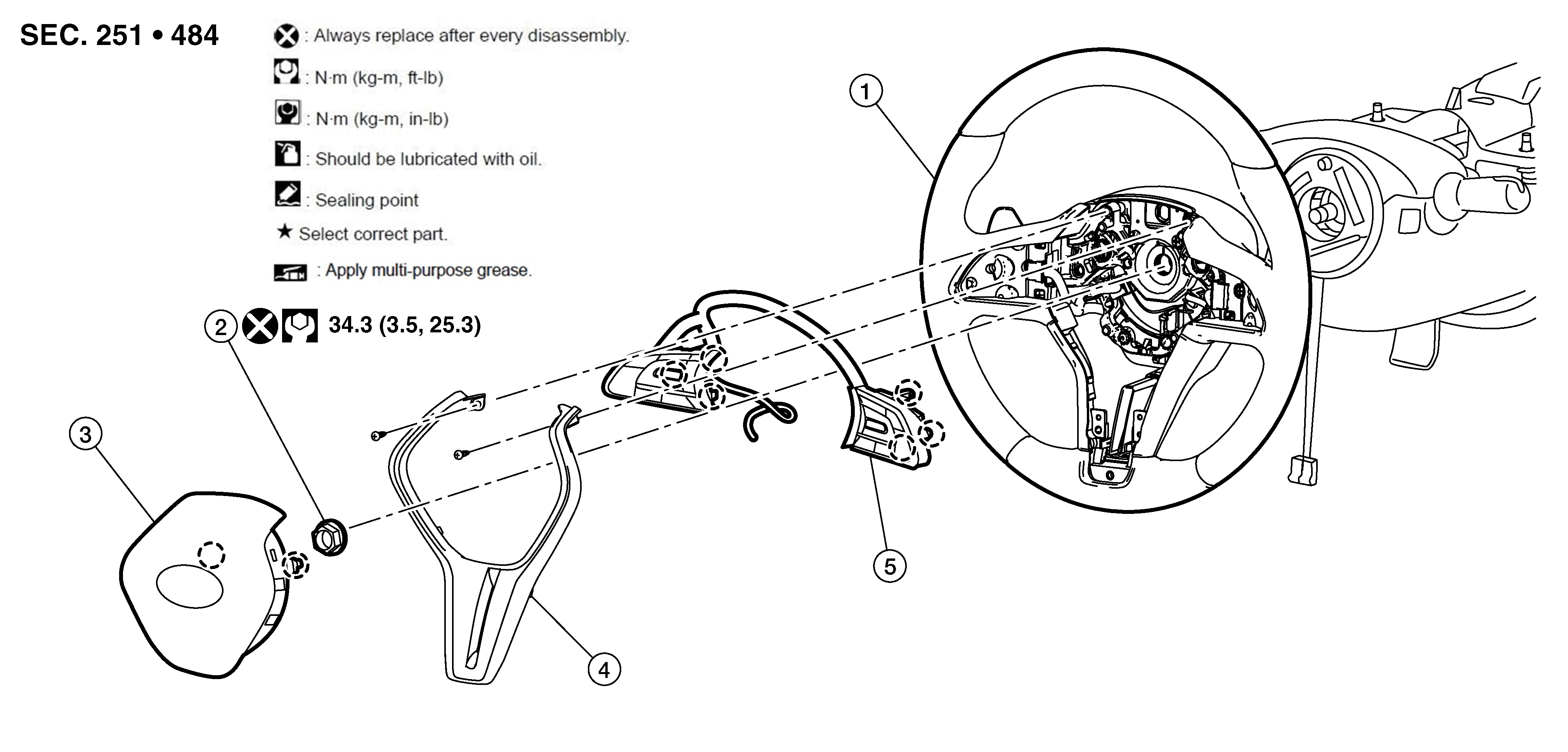

Fig 1: Steering Wheel With Torque Specifications
GNSDB39174Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering wheel

2.

Steering wheel lock nut

3.

Driver air bag module

4.

Steering wheel finisher

5.

ICC Steering switch

SYMBOL

: Pawl
