Exploded View

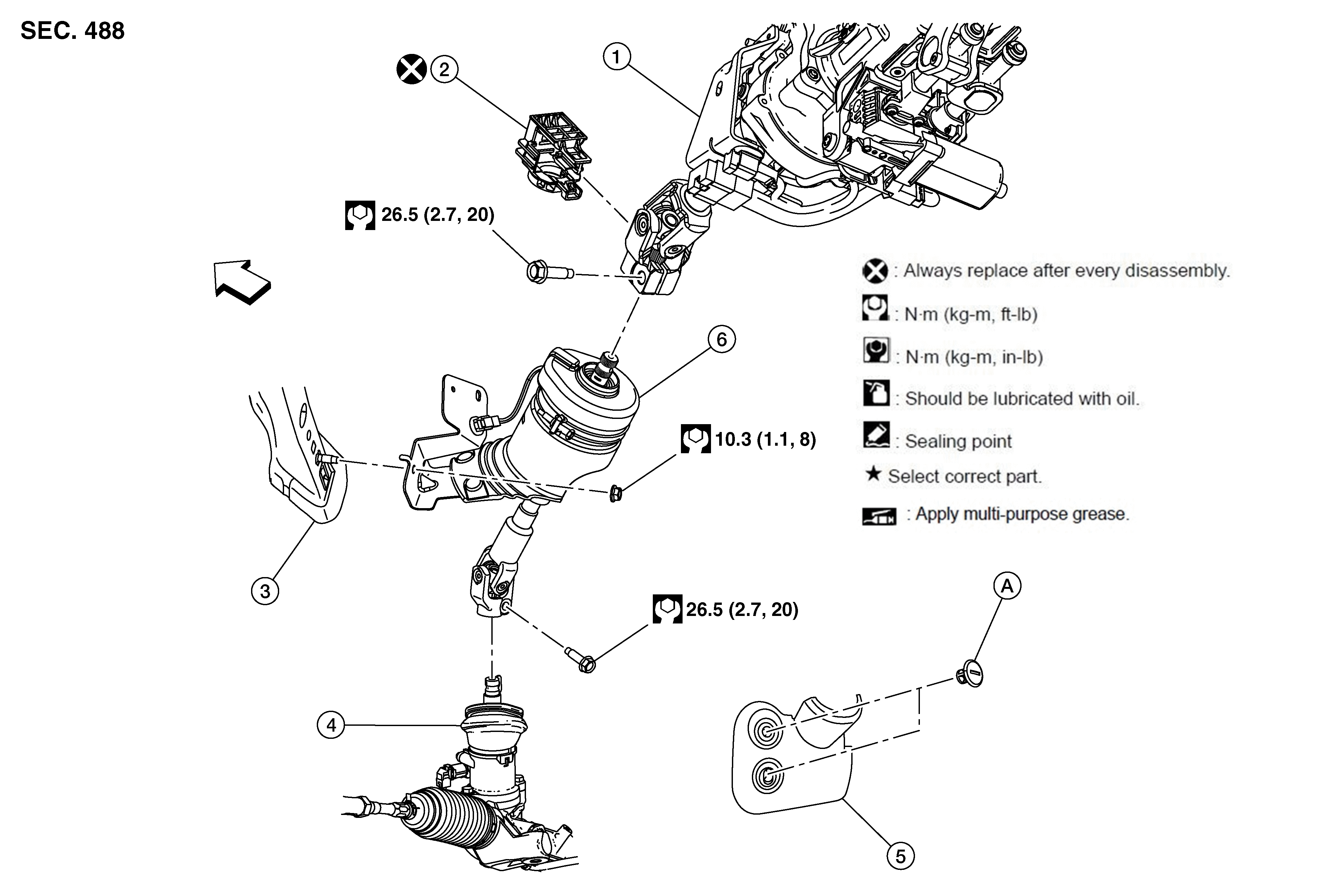

Fig 1: Lower Joint With Torque Specifications
GNSDB38108Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering column

2.

Collar

3.

Dash panel

4.

Steering gear

5.

Lower joint cover

6.

Lower joint

A.

Clip

SYMBOL

Front
