Removal and Installation: Removal

  1. Remove EVAP canister purge hose. Refer to Removal and Installation .
  2. Disconnect EVAP vent line from EVAP canister.

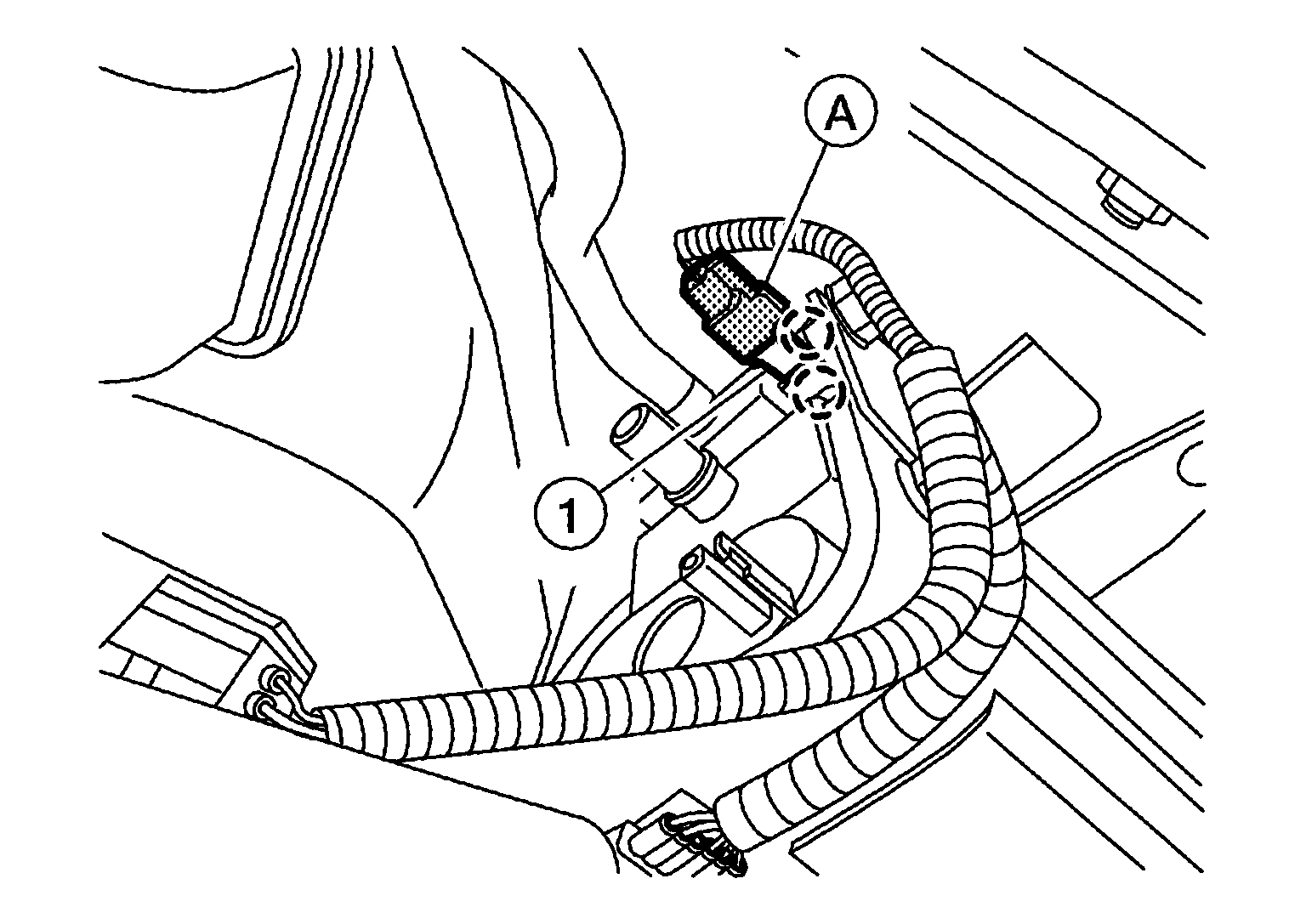

  3. Disconnect harness connector (A) from EVAP control system pressure sensor (1), then release pawls and remove EVAP control system pressure sensor (1).
    GNSDB39019Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl
