Removal and Installation: Installation
Installation is in the reverse order of removal.

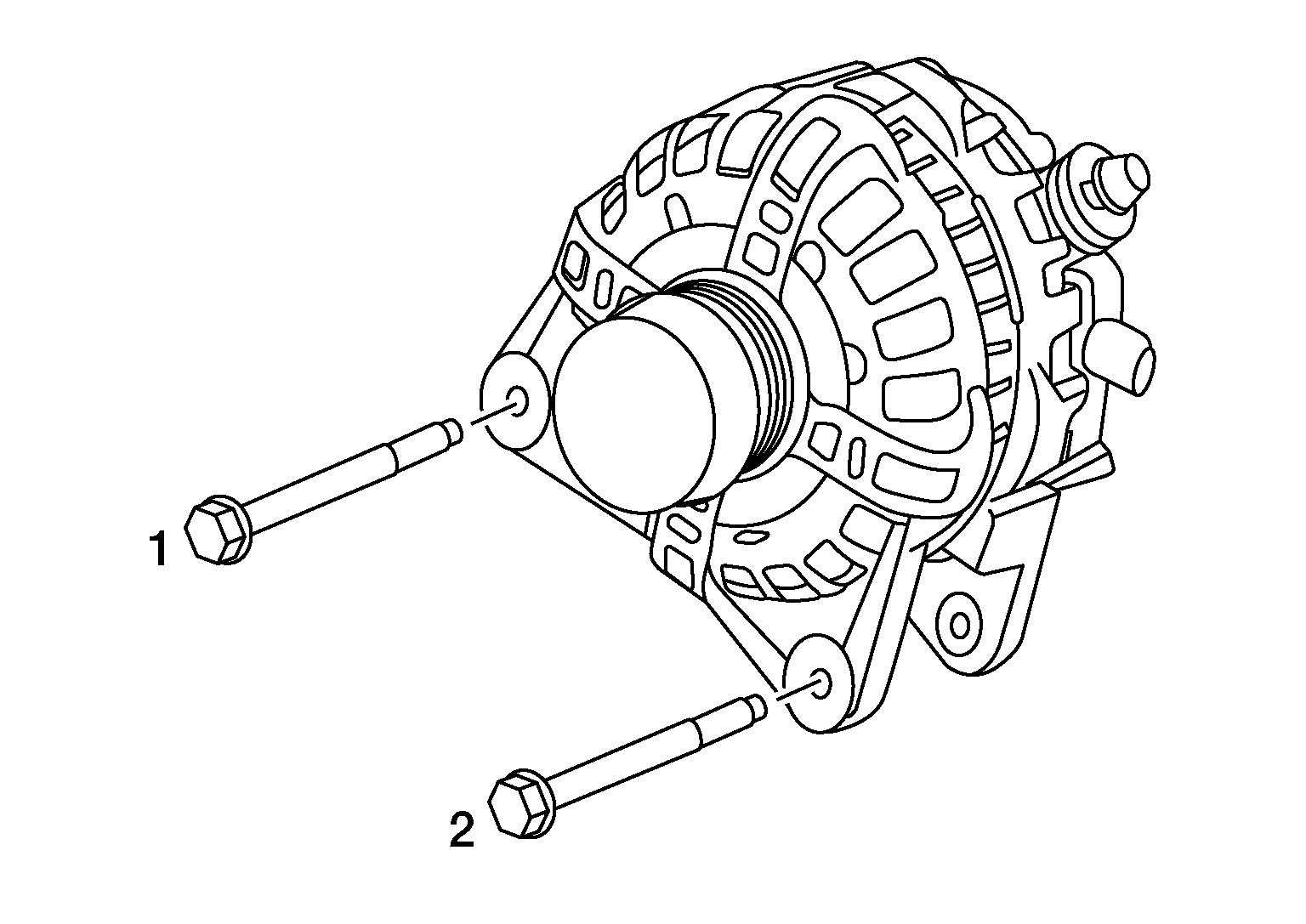

- Torque bolts to specification in order shown.
Bolts
: 25.0 N.m (2.6 kg-m, 18.4 ft-lb)
- Torque "B" terminal nut.
Nut
: 10.06 N.m (1.0 kg-m, 7 ft-lb)
CAUTION:
- Apply A/C oil to new O-rings for installation.
- After charging refrigerant, check for leaks. Refer to Leak Test .
- Check tension of belt. Refer to Inspection .
