Exploded View

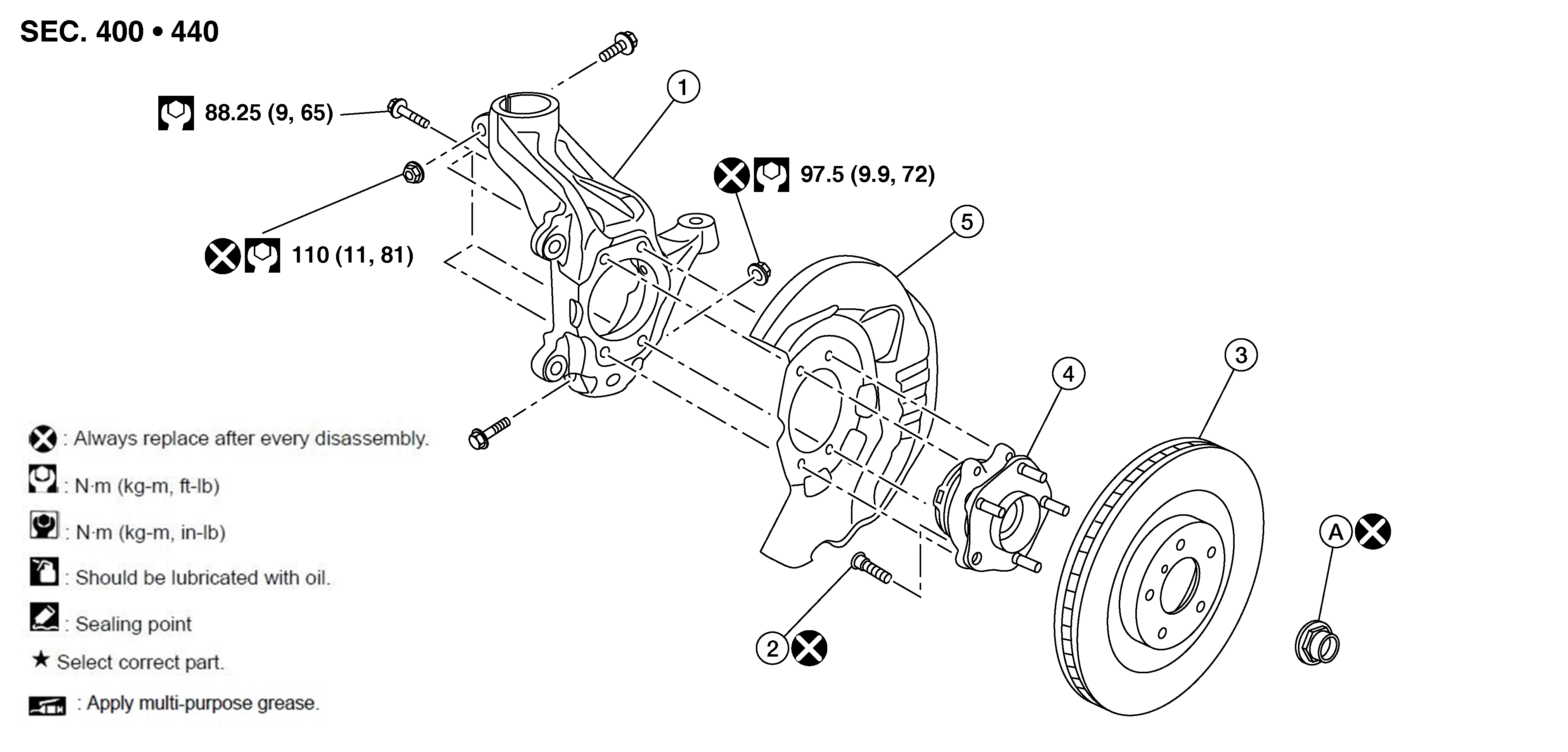

Fig 1: Front Wheel Hub And Bearing With Torque Specifications
GNSDB38192Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering knuckle

2.

Hub bolt

3.

Rotor

4.

Wheel hub and bearing assembly

5.

Splash guard

SYMBOL

Front

A.

Refer to Removal and Installation .
