Removal and Installation: Removal

  1. Remove the lower instrument panel LH. Refer to Removal and Installation .
  2. Remove the steering column covers. Refer to Removal and Installation .

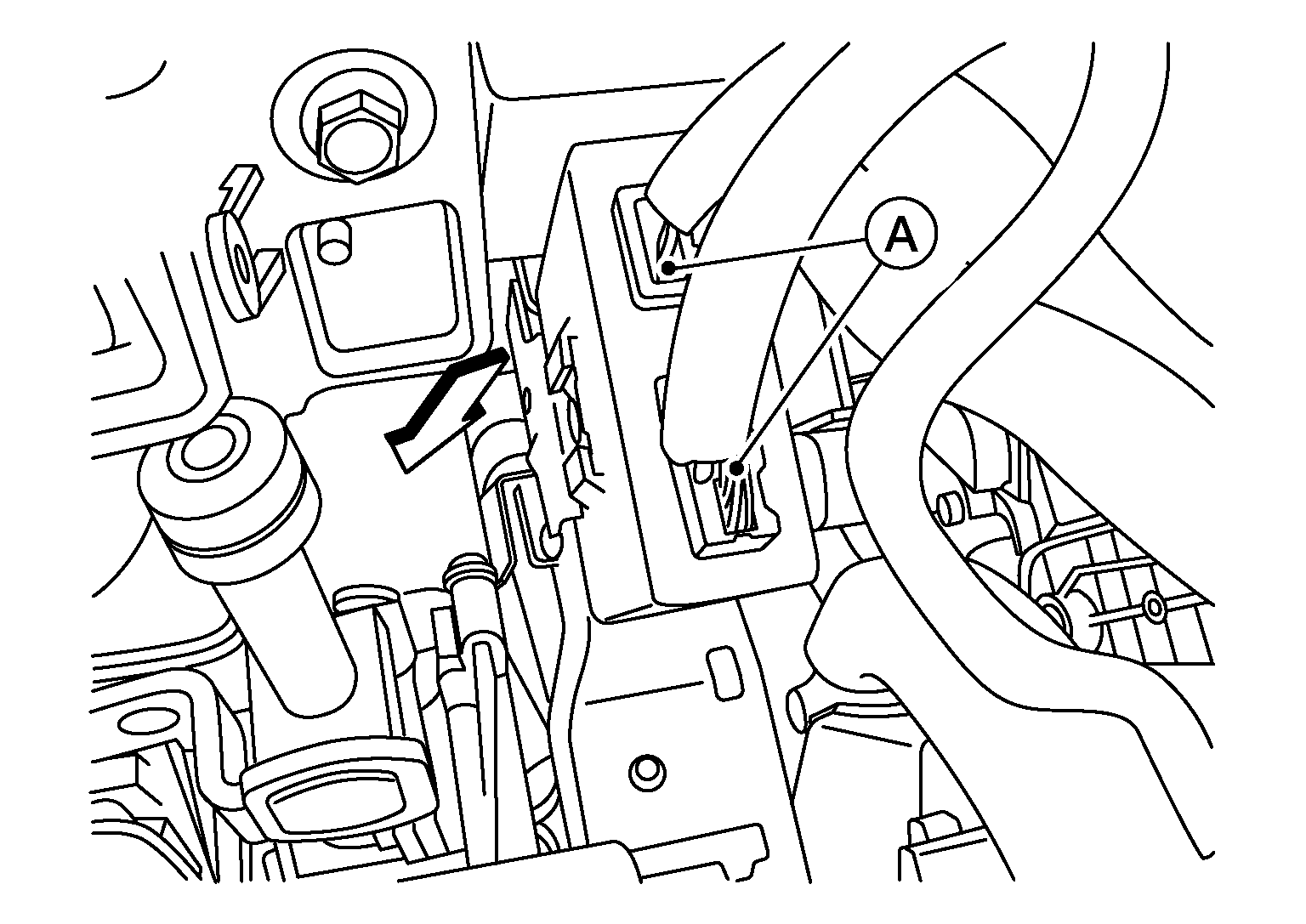

  3. Disconnect the harness connectors (A) from the automatic drive positioner control unit then remove the automatic drive positioner control unit.
    GNSDB37855Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front
