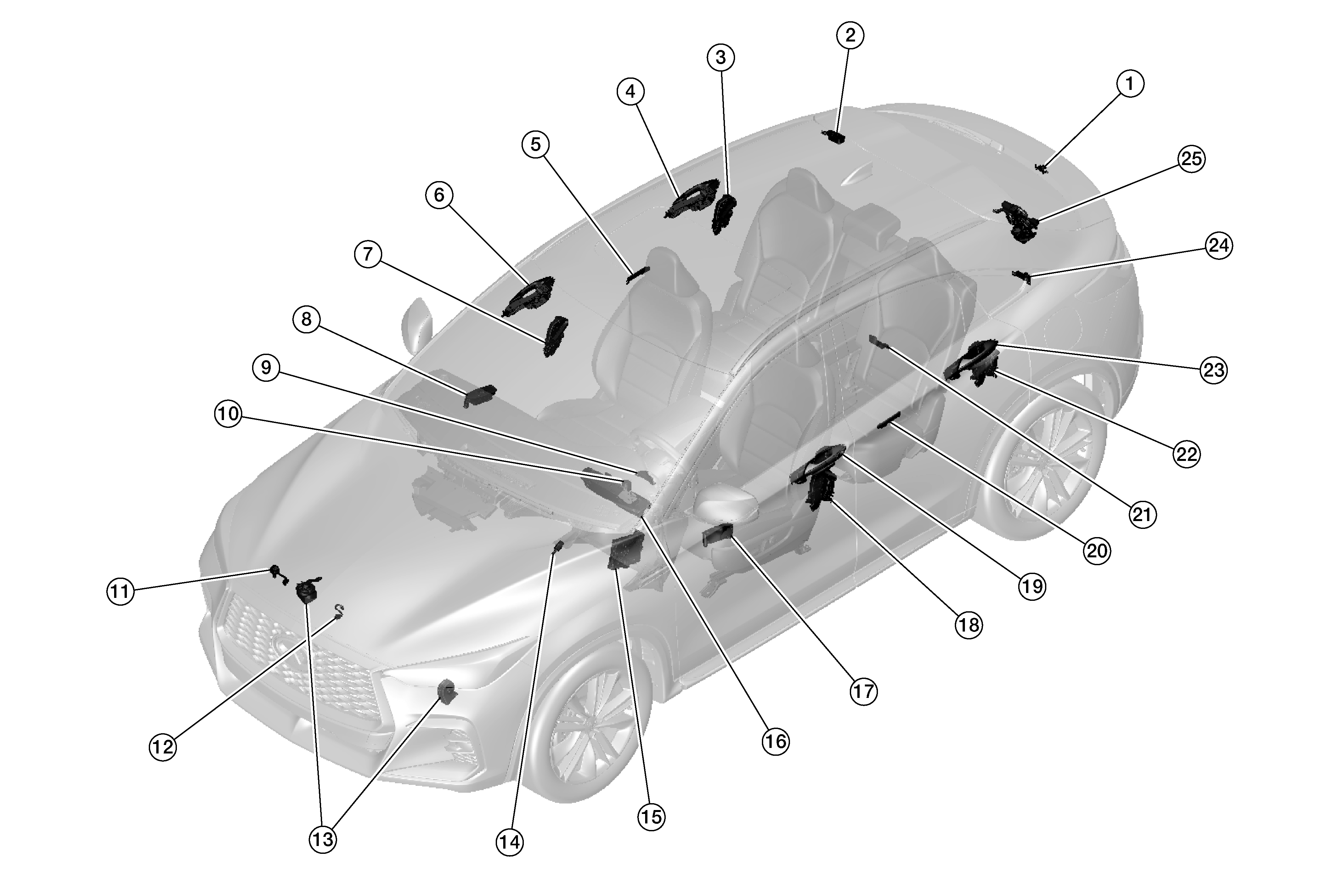

Component Location
|
No. |
Component |
Function |
|
1. |
Back door opener switch |
Back door request switch is integrated into the back door opener switch. Back door request switch transmits door lock/unlock request signal to the BCM. Refer to Back Door Opener Switch . |
|
2. |
Remote keyless entry receiver |
Remote keyless entry receiver receives button operation signal and key ID signal of Intelligent Key and then transmits them to the BCM. Refer to Remote Keyless Entry Receiver . |
|
3. |
Rear door lock actuator RH |
Rear door lock actuator locks/unlocks the rear door latch assembly. |
|
4. |
Rear door request switch RH |
Door request switch transmits door lock/unlock request signal to the BCM. Refer to Rear Door Request Switch . |
|
5. |
Outside key antenna RH |
Outside key antenna (RH) detects whether Intelligent Key is outside the vehicle or not, and then transmits the signal to the BCM. Refer to Outside Key Antenna (RH) . |
|
6. |
Front door request switch RH |
Door request switch transmits door lock/unlock request signal to the BCM. Refer to Front Door Request Switch (RH) . |
|
7. |
Front door lock actuator RH |
Front door lock actuator locks/unlocks the front door latch assembly. |
|
8. |
Power window and door lock/unlock switch RH |
Door lock and unlock switch RH is integrated into the power window and door lock/unlock switch RH. Door lock and unlock switch transmits door lock/unlock operation signal to BCM. Refer to Door Lock and Unlock Switch (Passenger Side) . |
|
9. |
Inside key antenna (console) |
Inside key antenna (console) detects whether Intelligent Key is inside the vehicle or not, and then transmits the signal to the BCM. Refer to Inside Key Antenna (Console) . |
|
10. |
Push-button ignition switch |
Push-button ignition switch has push switch inside which detects that push-button ignition switch is pressed, and then transmits ON/OFF signal to BCM. BCM changes the ignition switch position with the operation of push-button ignition switch. BCM maintains the ignition switch position status while push-button ignition switch is not operated. |
|
11. |
Intelligent Key warning buzzer |
Intelligent Key warning buzzer warns the user, who is outside the vehicle, of operation confirmation according to Intelligent Key operation and door request switch operation, or of an inappropriate operation. Refer to Intelligent Key Warning Buzzer . |
|
12. |
Hood switch |
Hood switch detects that hood is open/closed, and then transmits the signal to IPDM E/R. IPDM E/R transmits hood switch signal to BCM via CAN communication. |
|
13. |
Horns |
Horn is operated when the panic button on the Intelligent Key is pressed or the alarm is activated. |
|
14. |
Stop lamp switch |
Refer to Stop Lamp Switch . |
|
15. |
BCM (Body Control Module) |
BCM controls INTELLIGENT KEY SYSTEM (ENGINE START FUNCTION), NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS [NVIS (NATS)] and VEHICLE SECURITY SYSTEM. BCM performs the ID verification between BCM and Intelligent Key when the Intelligent Key is carried into the detection area of inside key antenna, and ignition switch is placed in the ON position. If the ID verification result is OK, ignition switch operation is available. Then, when the ignition switch is placed in the ON position, BCM performs ID verification between BCM and ECM. If the ID verification result is OK, ECM can start engine. Refer to Component Location for detailed component location. |
|
16. |
Combination meter |
Combination meter transmits the vehicle speed signal to BCM via CAN communication. BCM also receives the vehicle speed signal from ABS actuator and electric unit (control unit) via CAN communication. BCM compares both signals to detect the vehicle speed. Security indicator lamp is located on combination meter. Security indicator lamp blinks when ignition switch is in any position other than ON to warn that NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS [NVIS (NATS)] is on board. Refer to Component Location for detailed component location. |
|
17. |
Main power window and door lock/unlock switch |
Door lock and unlock switch is integrated into the main power window and door lock/unlock switch. Door lock and unlock switch transmits door lock/unlock operation signal to BCM. Refer to Door Lock and Unlock Switch (Driver Side) . |
|
18. |
Front door lock assembly LH |
Front door lock actuator is integrated into the front door lock assembly LH and locks/unlocks the front door latch assembly. Refer to Front Door Lock Assembly LH . |
|
19. |
Front door request switch LH |
Door request switch transmits door lock/unlock request signal to the BCM. Refer to Front Door Request Switch (LH) . |
|
20. |
Outside key antenna LH |
Outside key antenna (LH) detects whether Intelligent Key is outside the vehicle or not, and then transmits the signal to the BCM. Refer to Outside Key Antenna (LH) . |
|
21. |
Inside key antenna (luggage room) |
Inside key antenna (luggage room) detects whether Intelligent Key is inside the vehicle or not, and then transmits the signal to the BCM. Refer to Inside Key Antenna (Luggage Room) . |
|
22. |
Rear door request switch LH |
Door request switch transmits door lock/unlock request signal to the BCM. Refer to Rear Door Request Switch . |
|
23. |
Rear door lock actuator LH |
Rear door lock actuator locks/unlocks the rear door latch assembly. |
|
24. |
Outside key antenna (rear bumper) |
Outside key antenna (Rear bumper) detects whether Intelligent Key is outside the vehicle or not, and then transmits the signal to the BCM. Refer to Outside Key Antenna (Rear Bumper) . |
|
25. |
Back door lock assembly (door ajar switch) |
Back door lock actuator locks/unlocks the back door latch assembly. Refer to Back Door Lock Assembly . |
