Exploded View

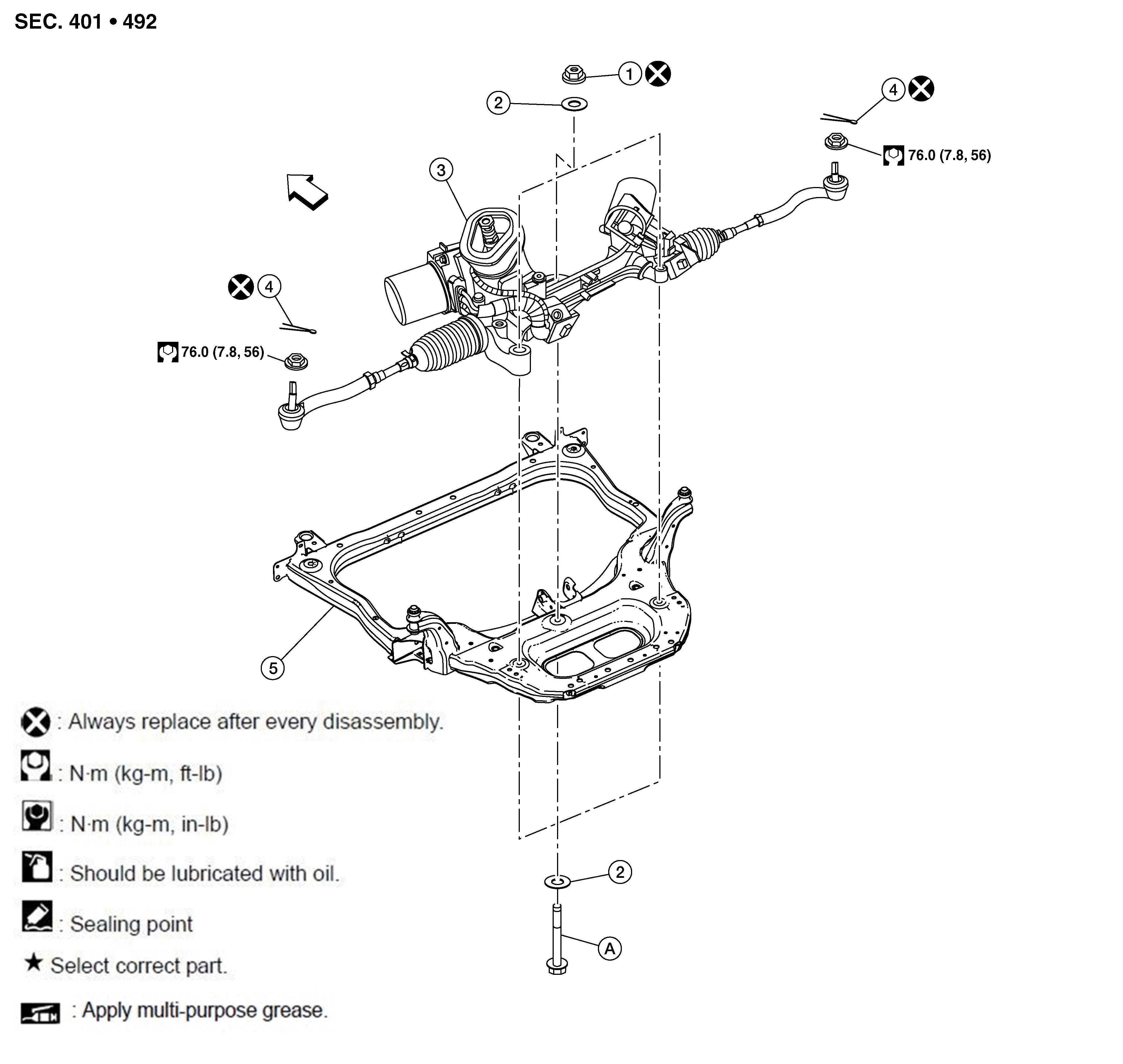

Fig 1: Steering Gear And Linkage With Torque Specifications

GNSDB59469

Courtesy of NISSAN

1.	Nut	2.	Washer	3.	Steering gear
4.	Cotter pin	5.	Front suspension member
A.	Refer to Removal and Installation .		Front
