Quarter Window Glass
>>

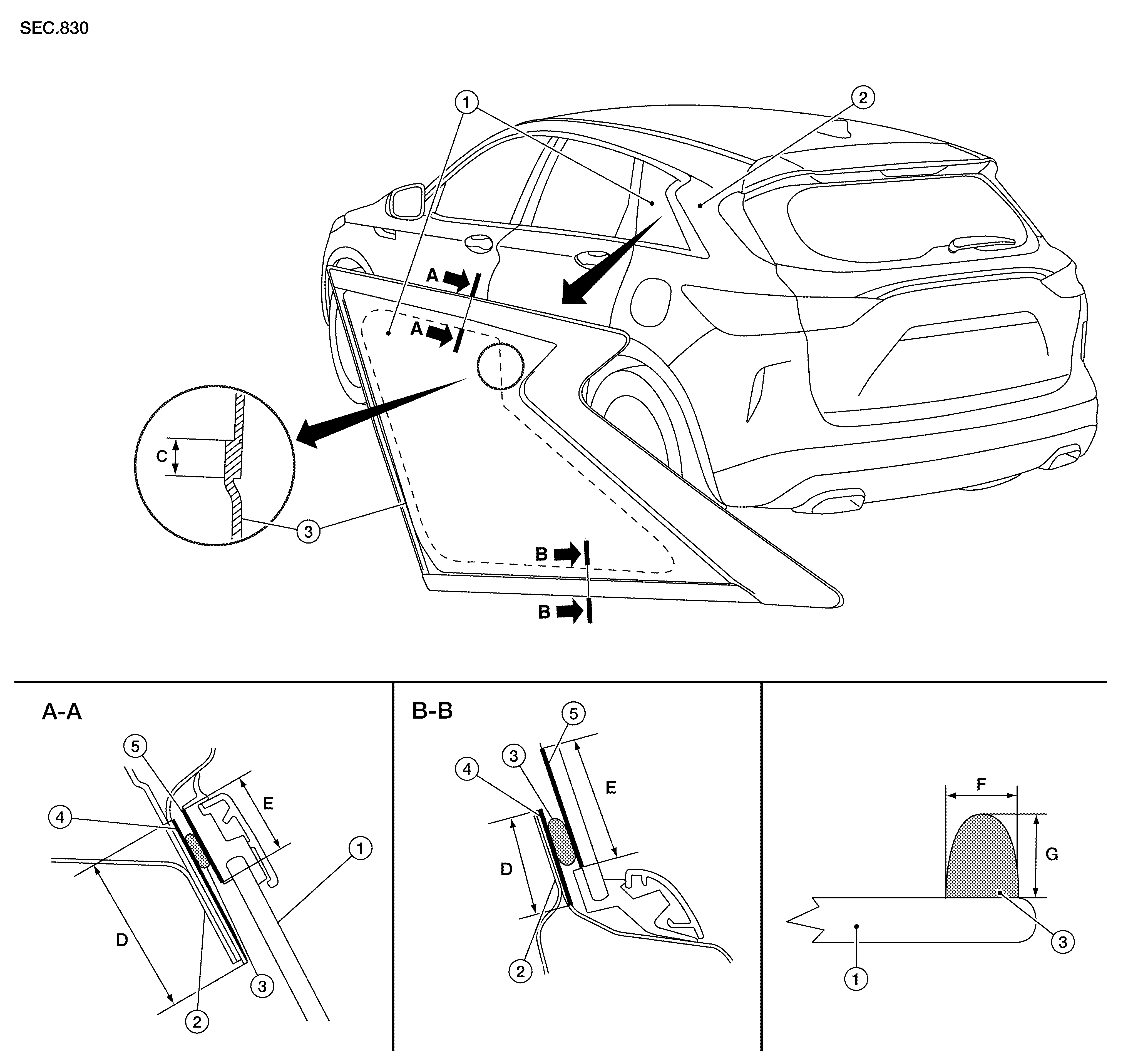

Exploded View
Exploded View
Courtesy of NISSAN
1.
Quarter window glass
2.
Body side outer
3.
Adhesive
4.
Body primer
5.
Glass primer
C.
30 mm (1.18 in)
D.
20 mm (0.79 in)
E.
15 mm (0.59 in)
F.
7 + 2, - 0 mm (0.28 + 0.08, - 0 in)
G.
12 + 2, - 0 mm (0.47 + 0.08, - 0 in)
