System Description

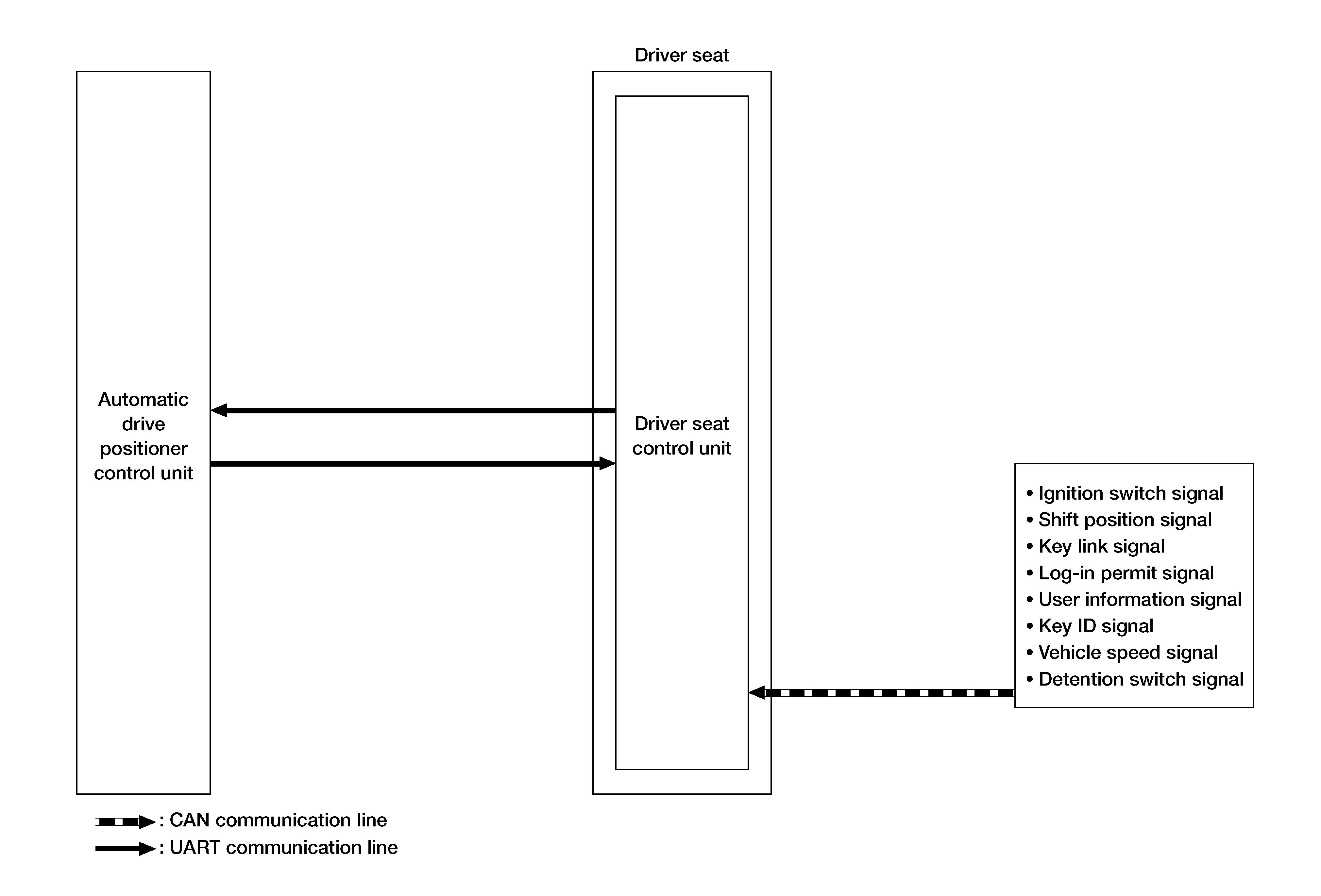

SYSTEM DIAGRAM

Courtesy of NISSAN

INPUT SIGNAL AND OUTPUT SIGNAL

Several types of signal are transmitted from the following units to the driver seat control unit via CAN communication:

Component	Signal
ABS actuator and electric unit (control unit)	Vehicle speed signal
Combination meter	Vehicle speed signal
BCM	Ignition switch signal Key ID signal
TCM	Shift position signal
Chassis control module	Key link signal Log-in permit signal
AV control unit	User information signal
IPDM E/R	Detention switch signal

DESCRIPTION

When push-button ignition switch is OFF, and door unlock operation is performed using Intelligent Key or driver side door request switch or one touch unlock sensor, driver seat automatically adjusts to a driving position other than seat sliding. Seat sliding and steering column tilt perform return operation and are set to standby status.
In standby status, when push-button ignition switch is operated from OFF to ACC, return operation sets seat sliding and steering column tilt to a registered position.

NOTE:

When starter signal turns ON during return operation, the operation is interrupted, starter signal turns from ON to OFF, and operation restarts.

Operation Procedure

Unlock driver door by Intelligent Key or driver side door request switch or one touch unlock sensor.
Operation other than memory of seat sliding is performed. Seat sliding and steering column tilt perform exit assist operation.
Ignition switch ON.
Driver seat and steering column will return from the exiting position to entry position.

Operation Condition

Satisfy all of the following items. The Intelligent Key interlock function is not performed if these items are not satisfied.

Item	Request status
Ignition position	OFF
Log-in function setting registration	Registered
Switch inputs Power seat switch LH ADP steering switch Door mirror remote control switch Set switch Memory switch	OFF (Not operated)
Transmission	CVT
CONSULT	Not connected

Detail Flow

Order	Input	Output	Control unit condition
1	Door unlock signal (CAN) Key ID signal (CAN)	-	When the following function is performed, the driver seat control unit transmits the unlock signal from BCM via CAN communication and receives the Key ID signal. Unlock door: Intelligent Key Unlock door: front request switch (driver side) Unlock door: one touch unlock sensor
2	-	-	Driver seat control unit performs the seat slide and steering tilt move directly to the exit assist function. Other loads move to the exit assist function after performing log-in function.
3	-	-	Driver seat control unit performs the entry assist function.
