Home >> Infiniti >> 2023 >> QX50 Pure, FWD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Collision/Avoidance >> Driver Assistance System >> Removal And Installation >> Front Camera Unit >> Exploded View

Exploded View

WITH RAIN SENSOR

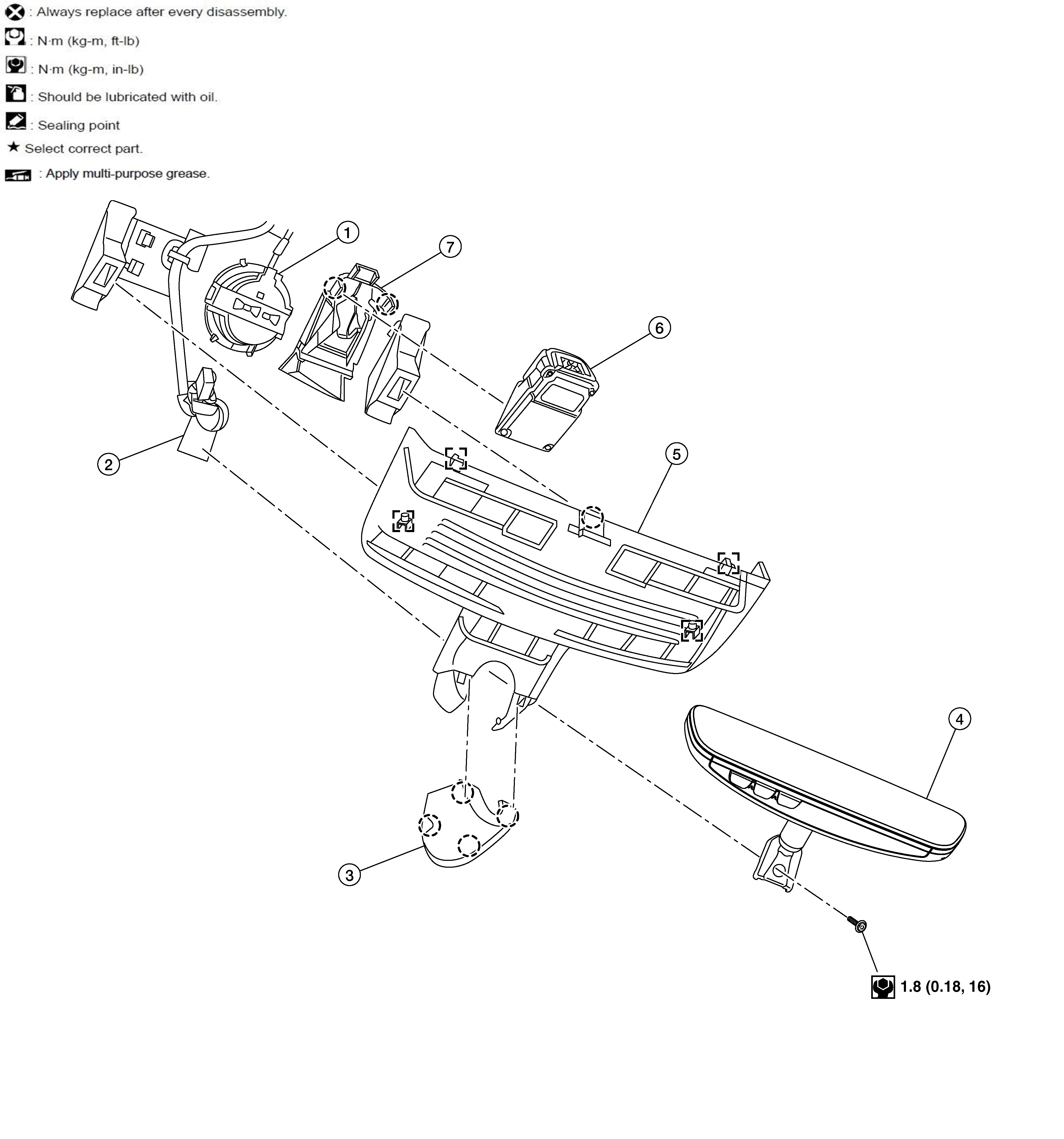

Fig 1: Front Camera Unit With Torque Specifications - With Rain Sensor
GNSDB58945Courtesy of NISSAN
1. Rain sensor 2. Mirror base 3. Inside mirror cover
4. Inside mirror 5. Front camera unit cover 6. Front camera unit
7. Front camera unit bracket SYMBOL Pawl SYMBOL Metal clip

WITHOUT RAIN SENSOR

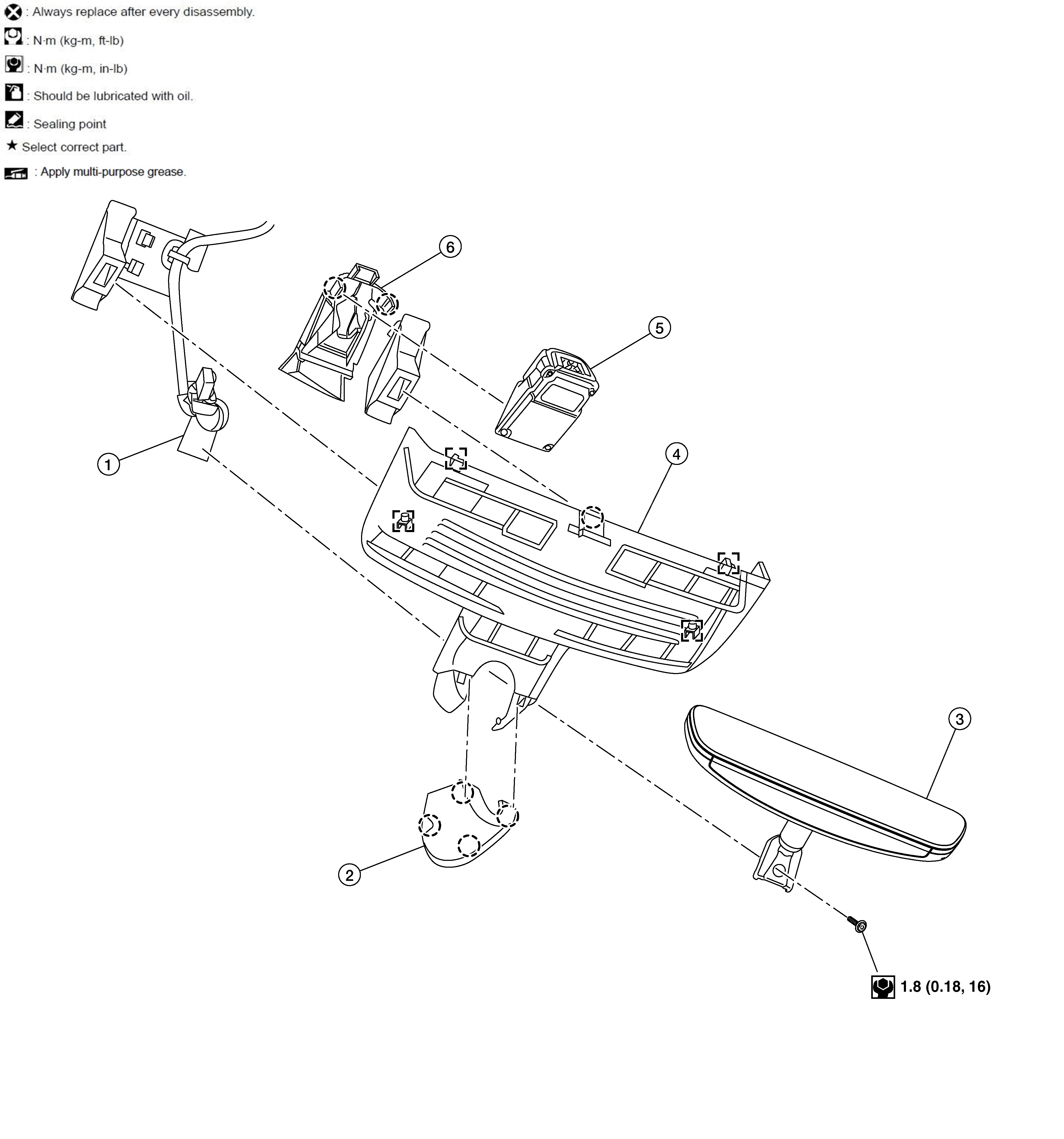

Fig 2: Front Camera Unit With Torque Specifications - Without Rain Sensor
GNSDB58920Courtesy of NISSAN
1. Mirror base 2. Inside mirror cover 3. Inside mirror
4. Front camera unit cover 5. Front camera unit 6. Front camera unit bracket
SYMBOL Pawl SYMBOL Metal clip
